HHT31 S UNBA/A (HABA) - Honda String Trimmer, Made in USA (SN: HABA-1000001 - HABA-9999999) HANDLEBAR Parts Diagram

String Trimmer, Made in USA

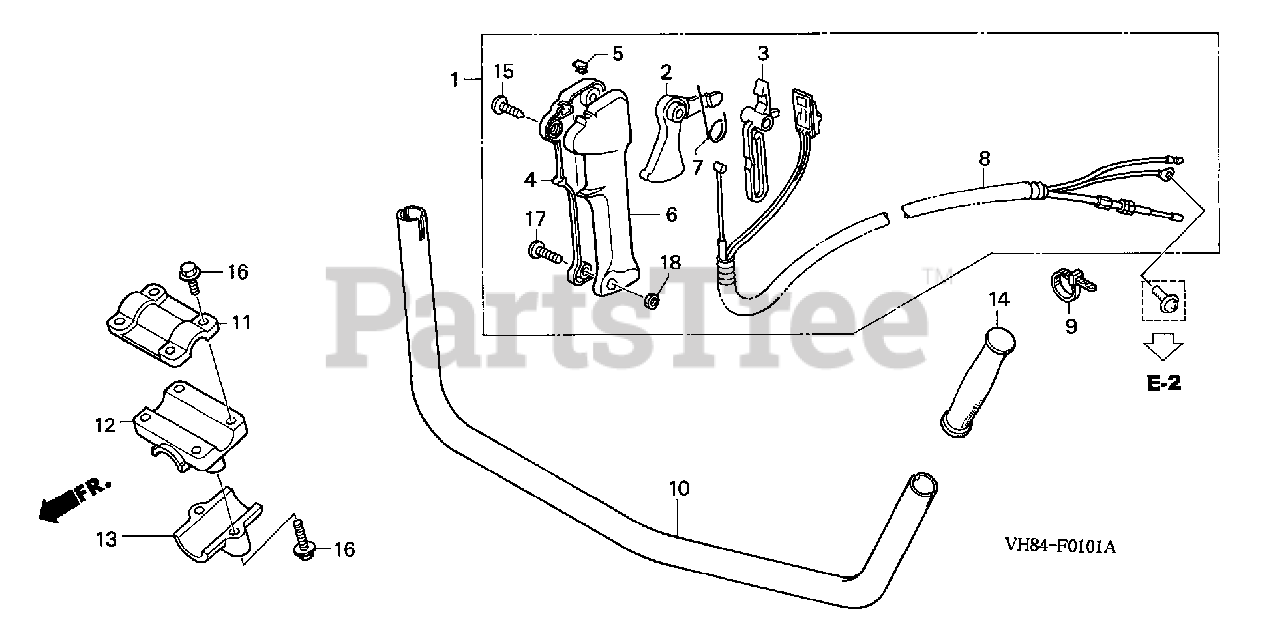

HANDLEBAR Parts Diagram

  • Title

1

Honda 17850-VH8-761

LEVER ASSY., THROTTLE (U)(LEVER=YELLOW)

$

$

Not available

2

Honda 17851-VH8-761

LEVER, THROTTLE (YELLOW)

$5.99

$

Usually ships in 3-6 days

0

3

Honda 17852-VH8-641

LEVER, THROTTLE LOCK (YELLOW)

$3.49

$

Usually ships in 3-6 days

0

4

Honda 17853-VF9-V31

GRIP, R. THROTTLE LEVER

$7.99

$

Usually ships in 3-6 days

0

5

Honda 17854-VF9-V31

CAP, THROTTLE LEVER

$1.49

$

In Stock, Qty 7

0

6

Honda 17856-VF9-V31

GRIP, L. THROTTLE LEVER

$7.99

$

In Stock, only 1 left!

0

7

Honda 17859-VF9-V31

SPRING, THROTTLE LEVER

$1.99

$

Usually ships in 3-6 days

0

8

Honda 32100-VF9-V31

WIRE HARNESS ASSY.

$20.99

$

Usually ships in 3-6 days

0

9

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

10

Honda 53111-VH8-761

PIPE, HANDLE

$52.99

$

Usually ships in 3-6 days

0

11

Honda 53136-VH8-761

HOLDER A, HANDLE

$5.99

$

Usually ships in 3-6 days

0

12

Honda 53137-VH8-761

HOLDER B, HANDLE

$19.99

$

In Stock, only 1 left!

0

13

Honda 53138-VH8-761

HOLDER C, HANDLE

$20.99

$

Usually ships in 3-6 days

0

14

Honda 53165-VH8-761

GRIP, HANDLE

$9.49

$

Usually ships in 3-6 days

0

15

Honda 90101-VF9-V31

SCREW, TAPPING (4X20)

$1.99

$

In Stock, Qty 5

0

16

Honda 93403-05028-08

SEE PART DETAILS - PRI; BOLT-WASHER (5X28)

$2.99

$

In Stock, Qty 20+

0

17

Honda 93500-05030-0G

SCREW, PAN (5X30)

$

$

Not available

18

Honda 94002-05070-0S

NUT, HEX. (5MM)

$0.99

$

In Stock, Qty 6

0
