HHT31 S LTA/A (HADA) - Honda String Trimmer, Made in USA (SN: HADA-1000001 - HADA-9999999) LOOP HANDLE Parts Diagram

String Trimmer, Made in USA

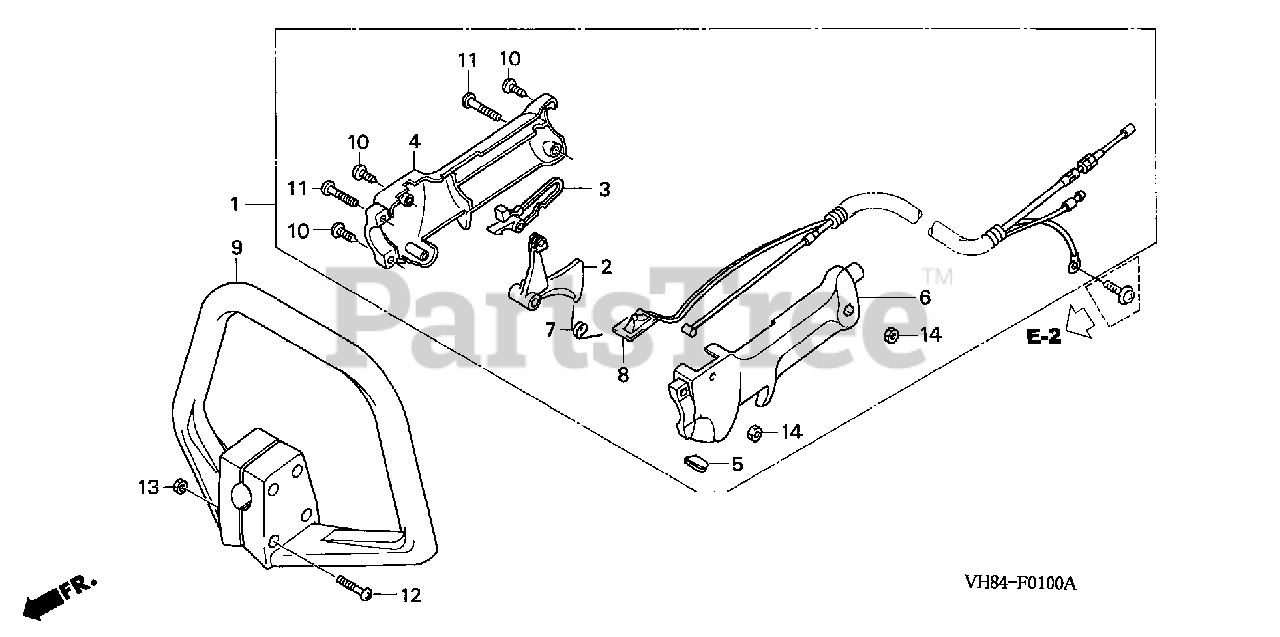

LOOP HANDLE Parts Diagram

  • Title

1

Honda 17850-VH8-641

LEVER ASSY., THROTTLE (L26) (LEVER=YELLOW)

$57.99

$

Usually ships in 3-6 days

0

2

Honda 17851-VH8-641

LEVER, THROTTLE (YELLOW)

$5.99

$

Usually ships in 3-6 days

0

3

Honda 17852-VH8-641

LEVER, THROTTLE LOCK (YELLOW)

$3.49

$

Usually ships in 3-6 days

0

4

Honda 17853-VF9-S41

GRIP, R. THROTTLE LEVER

$8.49

$

Usually ships in 3-6 days

0

5

Honda 17854-VF9-V31

CAP, THROTTLE LEVER

$1.49

$

In Stock, Qty 7

0

6

Honda 17856-VF9-S41

GRIP, L. THROTTLE LEVER

$8.49

$

Usually ships in 3-6 days

0

7

Honda 17859-VF9-V31

SPRING, THROTTLE LEVER

$1.99

$

Usually ships in 3-6 days

0

8

Honda 32100-VF9-V41

WIRE HARNESS ASSY.

$

$

Not available

9

Honda 53121-VH8-641

SEE PART DETAILS - SUP; HANDLE, LOOP

$

$

Not available

10

Honda 90101-VF9-V31

SCREW, TAPPING (4X20)

$1.99

$

In Stock, Qty 5

0

11

Honda 93500-05020-0G

SEE PART DETAILS - PRI; SCREW, PAN (5X20)

$1.49

$

In Stock, Qty 5

0

12

Honda 93500-05030-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X30)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 94002-05070-0S

NUT, HEX. (5MM)

$0.99

$

In Stock, Qty 6

0
