HHT31 S LTA/A (HADA) - Honda String Trimmer, Made in USA (SN: HADA-1000001 - HADA-9999999) FAN COVER + CLUTCH Parts Diagram

String Trimmer, Made in USA

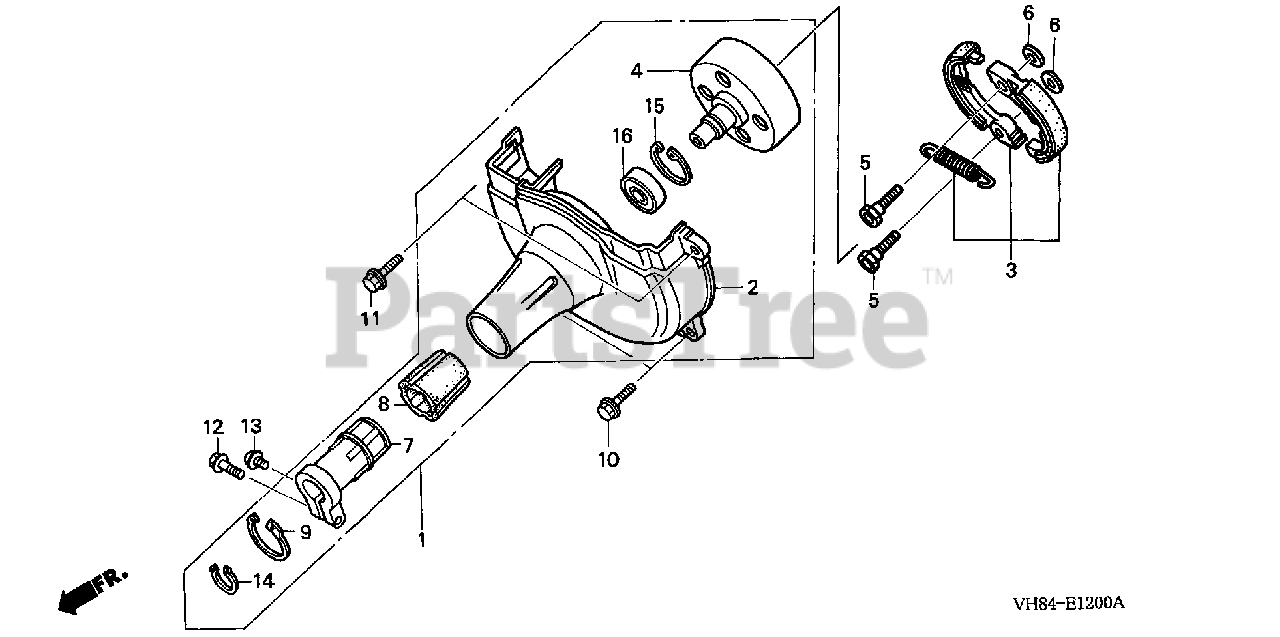

FAN COVER + CLUTCH Parts Diagram

  • Title

1

Honda 19600-ZM5-K80ZA

COVER ASSY., FAN *NH35M* (CLOUD SILVER METALLIC)

$158.99

$

Usually ships in 3-6 days

0

2

Honda 19611-VF9-700ZB

COVER, FAN *NH35M* (CLOUD SILVER METALLIC)

$75.99

$

Usually ships in 3-6 days

0

3

Honda 22000-ZM5-003

CLUTCH ASSY.

$33.99

$

In Stock, only 1 left!

0

4

Honda 22100-ZM5-K81

CLUTCH (OUTER)

$

$

Not available

5

Honda 22253-ZM5-003

BOLT, CLUTCH (8MM)

$3.49

$

Usually ships in 3-6 days

0

6

Honda 22254-ZM5-003

WASHER, CLUTCH (8X17)

$1.49

$

Usually ships in 3-6 days

0

7

Honda 50225-ZM3-V00

BRACKET, ENGINE MOUNTING

$

$

Not available

8

Honda 50237-VF9-700

RUBBER, ENGINE MOUNTING

$

$

Not available

9

Honda 53549-VF9-700

CIRCLIP (INNER) (45MM)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 90005-ZM3-000

BOLT, FLANGE (5X18)

$1.99

$

In Stock, Qty 5

0

11

Honda 90112-GK8-010

BOLT, FLANGE (5X22)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 93403-06028-08

BOLT-WASHER (6X28)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 93893-05010-08

SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 94510-15000

CIRCLIP, OUTER (15MM)

$1.49

$

In Stock, Qty 9

0

15

Honda 94520-35000

CIRCLIP (INNER) (35MM)

$2.49

$

In Stock, only 2 left!

0

16

Honda 96130-62020-10

BEARING, RADIAL BALL (6202)

$17.99

$

Usually ships in 3-6 days

0
