HHT25 S LTAT (HAFA) - Honda String Trimmer, Made in USA (SN: HAFA-1000001 - HAFA-1129999) FUEL TANK Parts Diagram

String Trimmer, Made in USA

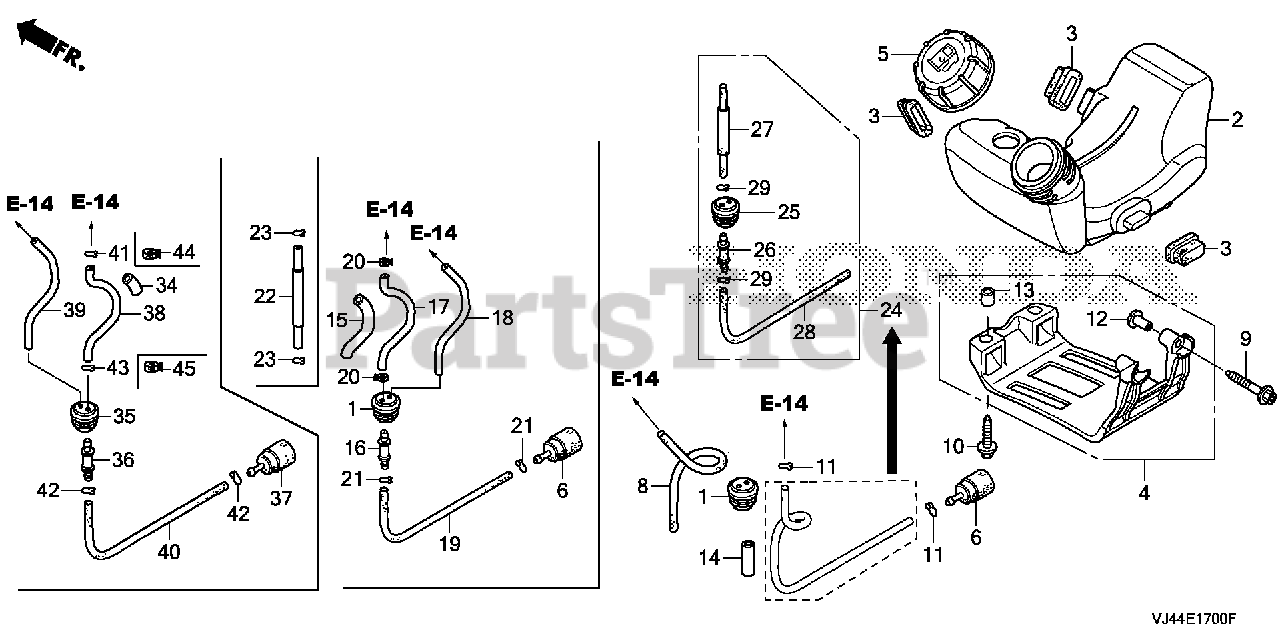

FUEL TANK Parts Diagram

  • Title

1

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

$4.49

$

In Stock, Qty 12

0

2

Honda 17511-Z0H-305

SEE PART DETAILS - PRI; TANK, FUEL (FOR U.S.A.)

Note: Use up to Engine SN 1175987.

$33.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z6J-831

SEE PART DETAILS - PRI; TANK, FUEL

Note: Use from Engine SN 1175988.

$52.99

$

In Stock, only 1 left!

0

3

Honda 17533-Z0H-000

RUBBER, TANK MOUNTING

$1.99

$

In Stock, Qty 20+

0

4

Honda 17555-Z0H-010

GUARD, TANK

$29.99

$

Usually ships in 3-6 days

0

5

Honda 17620-ZM3-053

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-073)

$13.99

$

Usually ships in 3-6 days

0

5

Honda 17620-ZM3-063

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-073)

$13.99

$

Usually ships in 3-6 days

0

5

Honda 17620-ZM3-073

CAP ASSY., FUEL TANK

$13.99

$

Usually ships in 3-6 days

0

6

Honda 17672-Z0H-003

SEE PART DETAILS - PRI; FILTER, FUEL

$6.99

$

Usually ships in 3-6 days

0

8

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use up to Engine SN 2072560.

$2.49

$

In Stock, only 4 left!

0

9

Honda 90010-Z0H-003

BOLT, SOCKET (5X30)

Note: Use up to Engine SN 2359746.

$1.49

$

In Stock, Qty 5

0

9

Honda 90010-Z3E-901

BOLT, SOCKET (5X30)

Note: Use from Engine SN 2359747.

$0.99

$

Usually ships in 3-6 days

0

10

Honda 90018-Z0H-003

BOLT, SOCKET (5X16)

Note: Use up to Engine SN 2359746.

$0.99

$

In Stock, only 3 left!

0

10

Honda 90018-Z3E-901

BOLT, SOCKET (5X16)

Note: Use from Engine SN 2359747.

$4.99

$

Usually ships in 3-6 days

0

11

Honda 91401-ZM3-003

CLIP, TUBE

Note: Use up to Engine SN 2072560.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 91501-Z0H-000

COLLAR, TANK GUARD

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91506-ZM3-000

COLLAR A, HEAD COVER

$1.99

$

In Stock, only 4 left!

0

14

Honda 16865-Z6J-000

PROTECTOR, TUBE

Note: Use up to Engine SN 2072560.

$0.99

$

In Stock, Qty 12

0

14

Honda 16865-Z6K-000

PROTECTOR, TUBE

Note: Use from Engine SN 1015714.

$2.99

$

In Stock, Qty 17

0

15

Honda 16865-Z6J-000

PROTECTOR, TUBE

Note: Use from Engine SN 2072561 to 2997213.

$0.99

$

In Stock, Qty 12

0

16

Honda 17519-Z6J-003

JOINT, FUEL TANK

Note: Use from Engine SN 2072561.

$2.49

$

In Stock, Qty 8

0

17

Honda 17701-Z6J-305

SEE PART DETAILS - PRI; TUBE, FUEL

Note: Use from Engine SN 2072561 to 2997213.

$6.99

$

In Stock, Qty 7

0

18

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use from Engine SN 2072561.

$2.49

$

In Stock, only 4 left!

0

19

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: Use from Engine SN 2072561.

$11.99

$

In Stock, only 2 left!

0

20

Honda 90601-Z6J-003

CLAMP, TUBE

Note: Use from Engine SN 2072561 to 2997213.

$0.99

$

In Stock, only 3 left!

0

21

Honda 91401-ZM3-003

CLIP, TUBE

Note: Use from Engine SN 2072561.

$1.99

$

Usually ships in 3-6 days

0

24

Honda 17700-Z0H-305

GROMMET ASSY., FUEL TANK

Note: Use up to Engine SN 2072560.

$

$

Not available

25

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: (Optional).Use up to Engine SN 2072560.

$4.49

$

In Stock, Qty 12

0

26

Honda 17519-ZM5-003

FITTING

Note: (Optional).Use up to Engine SN 2072560.

$5.99

$

In Stock, Qty 15

0

27

Honda 17701-Z0H-800

TUBE, FUEL FEED
(Superseded to 17701-Z3E-305)

Note: (Optional).Use up to Engine SN 2072560.

$5.99

$

Usually ships in 3-6 days

0

27

Honda 17701-Z3E-305

SEE PART DETAILS - PRI; TUBE, FUEL FEED

Note: (Optional).Use up to Engine SN 2072560.

$5.99

$

Usually ships in 3-6 days

0

28

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: (Optional).Use up to Engine SN 2072560.

$11.99

$

In Stock, only 2 left!

0

29

Honda 91401-ZM3-003

CLIP, TUBE

Note: (Optional).Use up to Engine SN 2072560.

$1.99

$

Usually ships in 3-6 days

0

34

Honda 16865-Z6J-010

PROTECTOR, TUBE

Note: Use from Engine SN 2997214.

$2.99

$

In Stock, only 2 left!

0

35

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: Use from Engine SN 2997214.

$4.49

$

In Stock, Qty 12

0

36

Honda 17519-Z6J-003

JOINT, FUEL TANK

Note: Use from Engine SN 2997214.

$2.49

$

In Stock, Qty 8

0

37

Honda 17672-Z0H-003

SEE PART DETAILS - PRI; FILTER, FUEL

Note: Use from Engine SN 2997214.

$6.99

$

Usually ships in 3-6 days

0

38

Honda 17701-Z6J-013

TUBE, FUEL

Note: Use from Engine SN 2997214.

$

$

Not available

39

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use from Engine SN 2997214.

$2.49

$

In Stock, only 4 left!

0

40

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: Use from Engine SN 2997214.

$11.99

$

In Stock, only 2 left!

0

42

Honda 91401-Z3E-000

CLIP, TUBE (B1 5)

Note: Use from Engine SN 2997214.

$0.99

$

In Stock, Qty 8

0

44

Honda 90601-Z6J-801

CLAMP, TUBE (D5.5)

Note: Use from Engine SN 2997214.

$0.99

$

In Stock, Qty 10

0

45

Honda 90601-Z6J-801

CLAMP, TUBE (D5.5)

Note: Use from Engine SN 2997214.

$0.99

$

In Stock, Qty 10
