HHE31 C A (MABA) - Honda Stick Edger, Made in USA (SN: MABA-1000001 - MABA-9999999) GEAR CASE Parts Diagram

Stick Edger, Made in USA

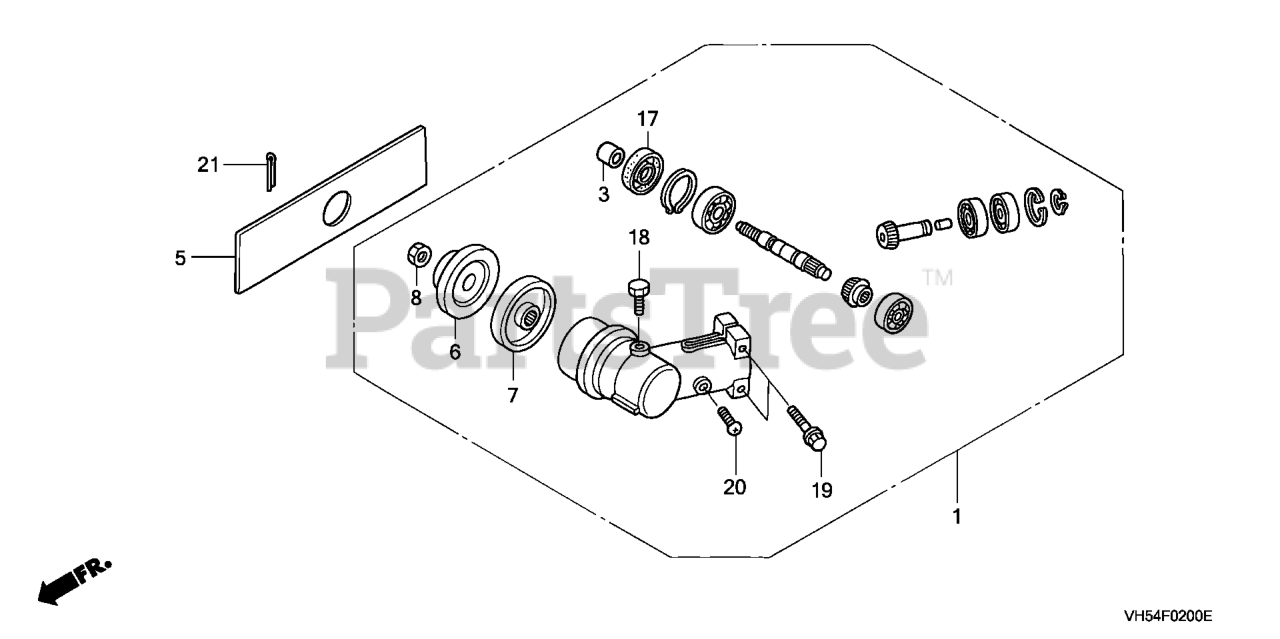

GEAR CASE Parts Diagram

  • Title

1

Honda 41100-VH5-003

CASE ASSY., GEAR (NOT AVAILABLE)

$

$

Currently unavailable

1

Honda 41100-VH5-999

KIT, GEAR

$71.99

$

Usually ships in 3-6 days

0

3

Honda 41102-VH5-003

COLLAR, SPLINE

$15.99

$

Usually ships in 3-6 days

0

5

Honda 72511-VH5-000

BLADE, ROTARY

$12.99

$

Usually ships in 3-6 days

0

6

Honda 72611-VH5-000

HOLDER A, BLADE

$

$

Not available

7

Honda 72621-VH5-000

HOLDER B, BLADE

$14.99

$

Usually ships in 3-6 days

0

8

Honda 90301-VH5-000

NUT, HEX. (M10)

$

$

Not available

17

Honda 91251-VH5-003

OIL SEAL

$2.99

$

Usually ships in 3-6 days

0

18

Honda 92201-08010-0H

BOLT, HEX. (8X10)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 93403-05025-04

BOLT-WASHER (5X25)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 93893-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94201-20220

PIN, COTTER (2.0X22)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94201-20350

PIN, COTTER (2.0X35)

$1.49

$

Usually ships in 3-6 days

0
