HHE31 C A/A (MABA) - Honda Stick Edger, Made in USA (SN: MABA-1000001 - MABA-9999999) THROTTLE LEVER Parts Diagram

Stick Edger, Made in USA

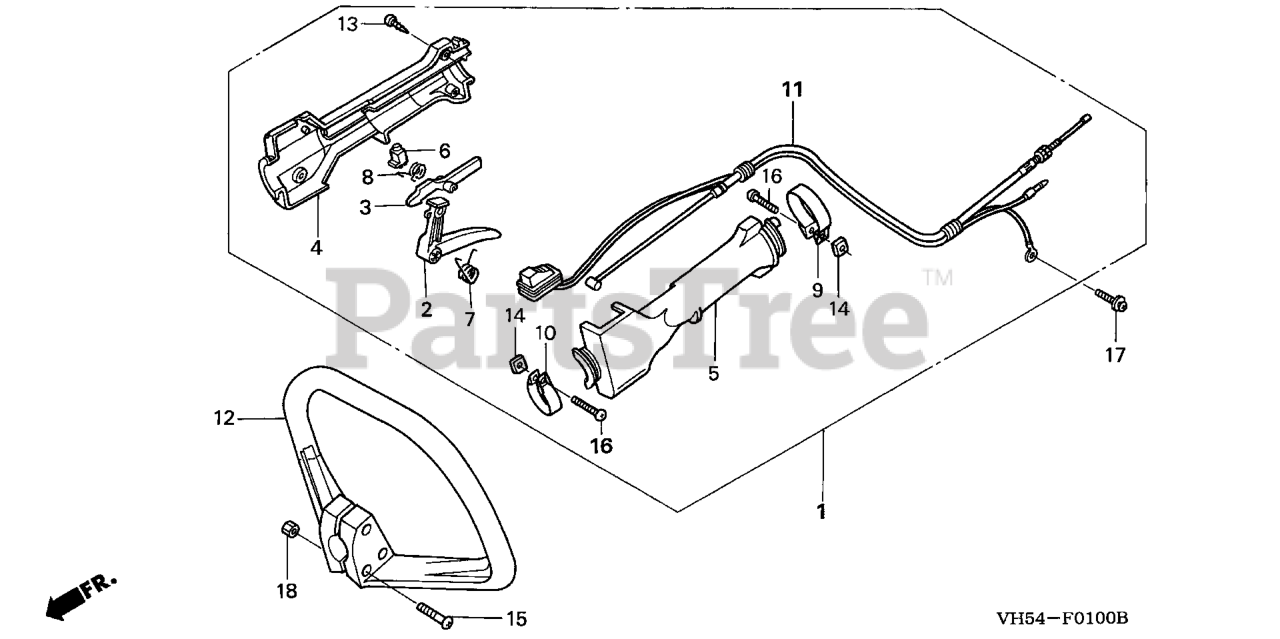

THROTTLE LEVER Parts Diagram

  • Title

1

Honda 17850-VF9-B12

SEE PART DETAILS - PRI; LEVER ASSY., THROTTLE

$72.99

$

Usually ships in 3-6 days

0

2

Honda 17851-VF9-A11

LEVER, THROTTLE

$6.99

$

Usually ships in 3-6 days

0

3

Honda 17852-VF9-A11

LEVER, THROTTLE LOCK

$3.99

$

Usually ships in 3-6 days

0

4

Honda 17853-VF9-B11

GRIP, R. THROTTLE LEVER

$7.99

$

Usually ships in 3-6 days

0

5

Honda 17856-VF9-B11

GRIP, L. THROTTLE LEVER

$7.99

$

Usually ships in 3-6 days

0

6

Honda 17857-VF9-A01

BUTTON, THROTTLE LOCK

$2.99

$

In Stock, only 1 left!

0

7

Honda 17858-VF9-A01

SPRING, THROTTLE LEVER

$2.49

$

In Stock, only 2 left!

0

8

Honda 17859-VF9-A01

SPRING, THROTTLE LOCK LEVER

$1.99

$

In Stock, only 2 left!

0

9

Honda 17876-VF9-A01

BRACKET, THROTTLE LEVER

$3.49

$

Usually ships in 3-6 days

0

10

Honda 17876-VF9-A11

BRACKET, THROTTLE LEVER

$3.49

$

Usually ships in 3-6 days

0

11

Honda 32100-VF9-A12

WIRE HARNESS ASSY.

$

$

Not available

12

Honda 53121-VH5-000

HANDLE, LOOP

$28.99

$

Usually ships in 3-6 days

0

13

Honda 90110-VF9-A01

SCREW, TAPPING (4X18)

$1.49

$

In Stock, only 2 left!

0

14

Honda 90202-VF9-A01

NUT, SQUARE (6MM)

$

$

Not available

15

Honda 93500-05028-0A

SCREW, PAN (5X28) (Honda Code 0171819).

$1.49

$

In Stock, Qty 5

0

16

Honda 93500-06020-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X20)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93893-05012-00

SCREW-WASHER (5X12) (Honda Code 0638734).

$1.99

$

In Stock, only 3 left!

0

18

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0
