HHE31 C A/A (MABA) - Honda Stick Edger, Made in USA (SN: MABA-1000001 - MABA-9999999) CARBURETOR Parts Diagram

Stick Edger, Made in USA

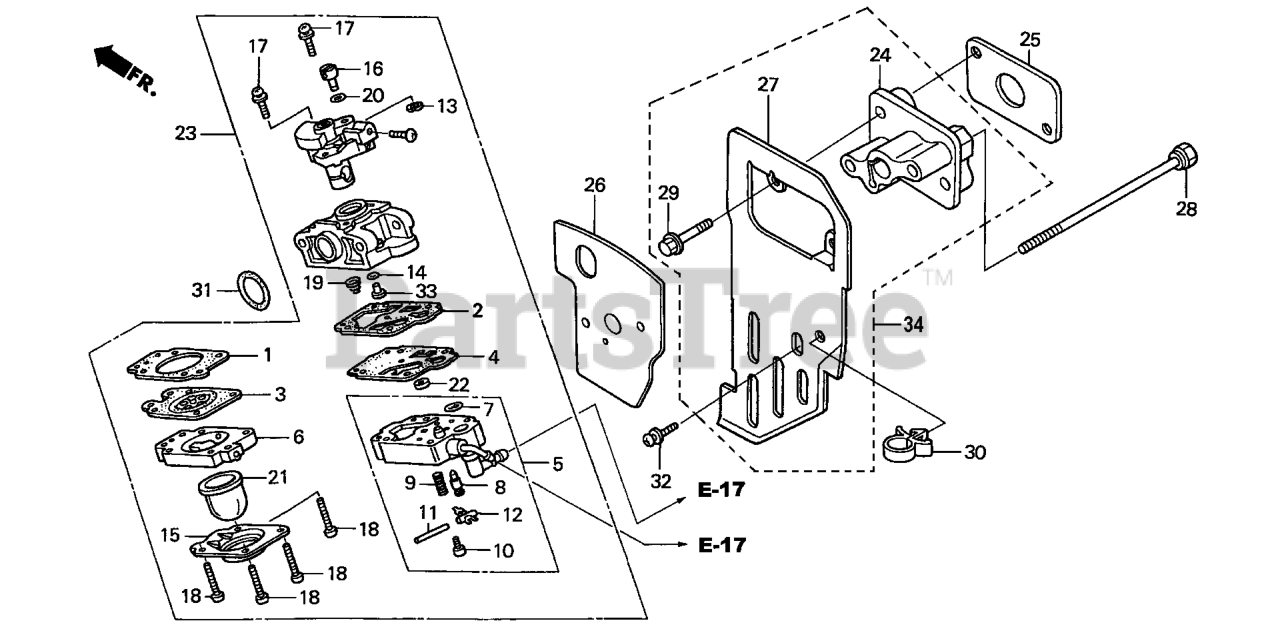

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZM3-004

GASKET, METERING DIAPHRAGM

$2.49

$

In Stock, Qty 6

0

2

Honda 16011-ZM3-014

SEE PART DETAILS - PRI; GASKET, PUMP

$5.49

$

In Stock, only 3 left!

0

3

Honda 16013-ZM3-004

DIAPHRAGM ASSY., METERING

$9.49

$

In Stock, only 1 left!

0

4

Honda 16014-ZM3-004

DIAPHRAGM, PUMP

$4.99

$

In Stock, Qty 20+

0

5

Honda 16015-ZM3-802

BODY ASSY., PUMP (CARBURETOR NO.)

$

$

Not available

6

Honda 16017-ZM3-004

BODY ASSY., AIR PURGE

$10.99

$

In Stock, Qty 8

0

7

Honda 16018-ZM3-802

SCREEN, INLET (CARBURETOR NO.)

$1.49

$

In Stock, Qty 6

0

8

Honda 16019-ZM3-004

VALVE, INLET NEEDLE

$5.99

$

In Stock, only 1 left!

0

9

Honda 16020-ZM3-004

SPRING, METERING LEVER

$2.49

$

In Stock, only 2 left!

0

10

Honda 16021-ZM3-004

SCREW, METERING LEVER PIN

$2.49

$

In Stock, only 2 left!

0

11

Honda 16022-ZM3-014

SEE PART DETAILS - PRI; PIN, METERING LEVER

$2.49

$

In Stock, only 2 left!

0

12

Honda 16023-ZM3-004

LEVER, METERING

$2.99

$

In Stock, Qty 6

0

13

Honda 16024-ZM3-004

RING, SPRING RETAINING

$2.99

$

Usually ships in 3-6 days

0

14

Honda 16025-ZM3-004

O-RING

$2.99

$

In Stock, Qty 8

0

15

Honda 16026-ZM3-004

COVER, PRIMER PUMP

$4.49

$

In Stock, only 1 left!

0

16

Honda 16027-ZM3-004

SWIVEL

$3.49

$

Usually ships in 3-6 days

0

17

Honda 16028-ZM3-004

SCREW, THROTTLE COLLAR

$1.99

$

In Stock, only 3 left!

0

18

Honda 16029-ZM3-004

SCREW, PUMP COVER

$1.99

$

In Stock, Qty 6

0

19

Honda 16030-ZM3-004

SPRING, PUMP

$1.99

$

In Stock, only 3 left!

0

20

Honda 16031-ZM3-004

WASHER

$1.99

$

Usually ships in 3-6 days

0

21

Honda 16032-ZM3-004

PUMP, PRIMER

$2.99

$

In Stock, Qty 20+

0

22

Honda 16035-ZM3-802

FILTER, FUEL INLET (CARBURETOR NO.)

$11.99

$

In Stock, only 1 left!

0

23

Honda 16100-ZM5-809

SEE PART DETAILS - PRI; CARBURETOR ASSY. (WYL 127A)

$103.99

$

In Stock, only 1 left!

0

24

Honda 16211-ZM3-U30

INSULATOR, CARBURETOR

$13.99

$

In Stock, only 2 left!

0

25

Honda 16212-ZM3-000

GASKET, INSULATOR

$2.99

$

In Stock, Qty 5

0

26

Honda 16221-ZM3-G10

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$5.99

$

In Stock, Qty 9

0

27

Honda 19651-ZM3-U30

GUIDE, AIR INLET

$5.49

$

In Stock, only 3 left!

0

28

Honda 90010-ZM3-000

BOLT, HEX. (5X75)

$1.49

$

In Stock, only 2 left!

0

29

Honda 90112-ZM3-U30

BOLT, FLANGE (5X32)

$2.49

$

In Stock, only 1 left!

0

30

Honda 90659-680-013

CLIP, WIRE HARNESS

$8.49

$

Usually ships in 3-6 days

0

31

Honda 91301-ZM3-000

O-RING (14.8X2.4)

$1.49

$

In Stock, only 3 left!

0

32

Honda 93894-05010-00

SCREW-WASHER (5X10)

$1.49

$

In Stock, Qty 10

0

33

Honda 99101-ZM3-0330

JET (#33.5) (CARBURETOR NO.) Use from Engine SN WYL127.

Note: (Optional) Use from Engine SN 1432193.

$8.99

$

Usually ships in 3-6 days

0

33

Honda 99102-ZM3-0340

JET (#34.5) Use from Engine SN WYL127.

Note: (Optional) Use from Engine SN 1432193.

$7.49

$

Usually ships in 3-6 days

0

33

Honda 99102-ZM3-0350

JET (#35.5) (CARBURETOR NO.)

$7.49

$

Usually ships in 3-6 days

0
