HGE 3500 (UT-03639) - Homelite Generator Muffler, Tank & Frame Parts Diagram

Generator

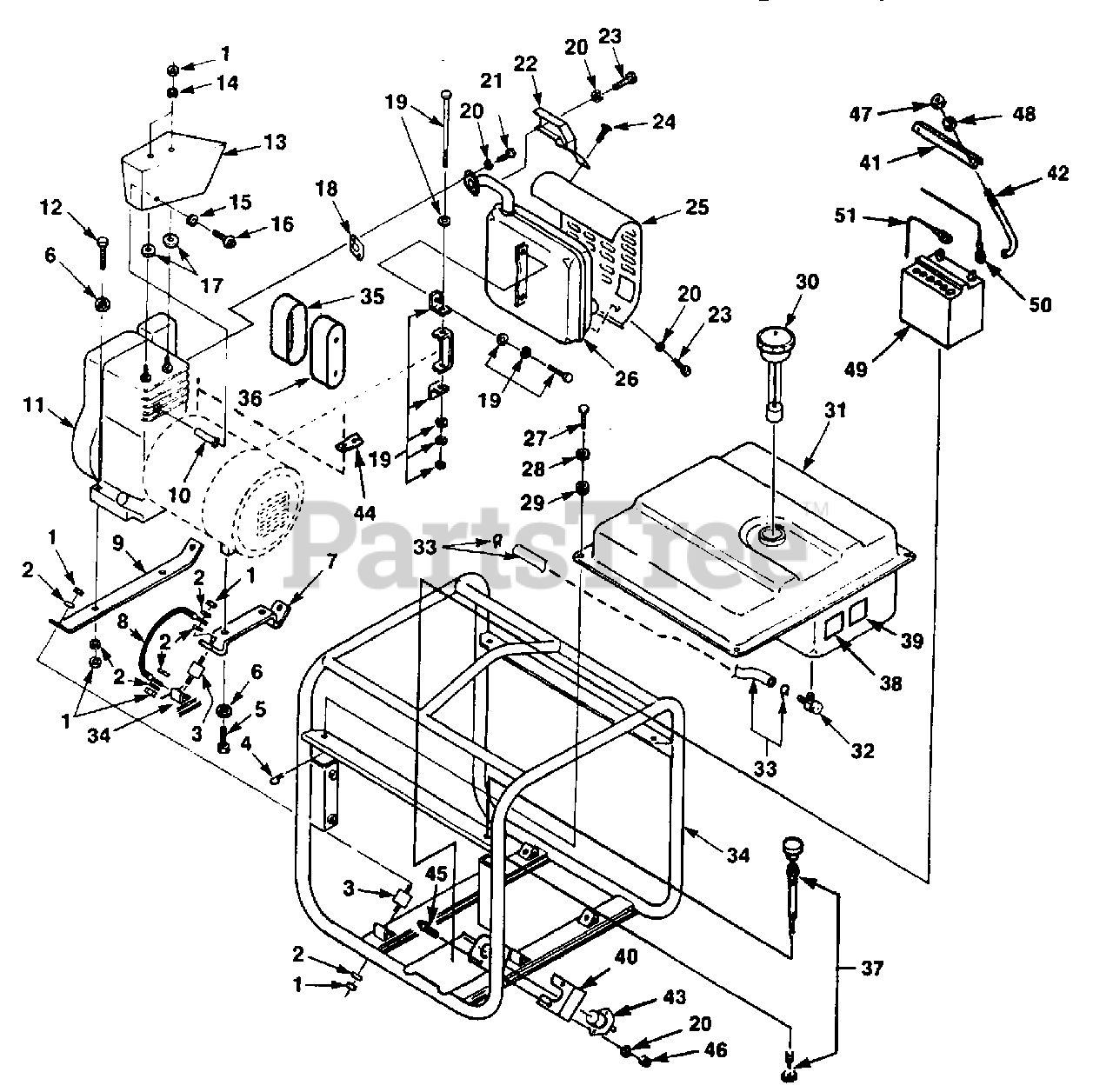

Muffler, Tank & Frame Parts Diagram

  • Title

1

Homelite 81162

NUT- 5/16-18"

$

$

Not available

2

Homelite 83081

WASHER-Lock int. 5/16"

$

$

Not available

3

Homelite 49367

ISOLATOR- Vibration
(Superseded to UP03483)

$

$

Not available

4

Homelite 49412

PIN- Cotter hair

$

$

Not available

5

Homelite 82206

SCREW- Hex tapping 5/16-18 x 1"

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 83033

WASHER- Lock int. 5/16"
(Superseded to 83081)

$

$

Not available

7

Homelite 48944

SUPPORT- Generator

$

$

Not available

8

Homelite A49399

GROUND STRAP

$

$

Currently unavailable

9

Homelite 49265

SUPPORT- Engine
(Superseded to UP03535)

$30.99

$

Usually ships in 3-7 days

0

10

Homelite 49392

SPACER (HG3500)

$

$

Not available

11

ENGINE (See Note 1)

Note: For Engine replacement parts on HG3500, Engine Model #170432 Type #5138-01 and HGE3500 Engine Model #170437 Type #0024-70 see your Briggs and Stratton Dealer.

$

$

Not available

12

Homelite 80288

SCREW- Hex hd 5/16-18 x 1 3/4"
(Superseded to UP03388)

$

$

Not available

13

Homelite 493481

DEFLECTOR- Air (HG3500)

$

$

Currently unavailable

14

Homelite 83030

WASHER- Lock

$

$

Not available

15

Homelite 84110

WASHER-Flat #10 (HG3500)

$

$

Not available

16

Homelite 46044A

SCREW 10-24 x 1 1/2" (HG3500)
(Superseded to UP03773)

$

$

Not available

17

Homelite 84032

WASHER- Flat 5/16" (HG3500)

$

$

Not available

18

Homelite 49370

GASKET- Muffler

$

$

Not available

19

Homelite A49304

MUFFLER BRACKET KIT

$101.99

$

Usually ships in 3-7 days

0

20

Homelite 83009

WASHER- Lock 1/4"

$8.49

$

Usually ships in 3-7 days

0

21

Homelite 82302

SCREW- Cap hex sock 1/4-20 x 1/16"

$

$

Not available

22

Homelite 49421

SHIELD- Exhaust

$

$

Not available

23

Homelite 80044

SCREW- Hex cap 1/4-20 x 1 1/8"

$

$

Not available

24

Homelite 82279

SCREW- Tap pan hd #8-18 x 3/8"

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 49419

SHIELD- Muffler

$

$

Not available

26

Homelite 49372

MUFFLER

$

$

Not available

27

Homelite 49329

PIN- Clevis

$

$

Not available

28

Homelite 84006

WASHER- Flat 1/4"

$

$

Not available

29

Homelite 49351

GROMMET- Isolator

$

$

Not available

30

Homelite 49179

CAP- Fuel

$

$

Not available

31

Homelite 489311

FUEL TANK

$

$

Currently unavailable

32

Homelite 49005

VALVE- Fuel

$

$

Not available

33

Homelite A49306

FUEL LINE ASSEMBLY (See Note 2)
(Superseded to UP03517)

$

$

Not available

34

Homelite A493211

ROLL CAGE(HG3500)

$

$

Currently unavailable

35

Homelite 49445

PREFILTER

$

$

Not available

36

Homelite 49446

FILTER

$

$

Not available

37

Homelite 49333

CHOKE- Cable (HGE3500)

$

$

Not available

38

Homelite 49340

DECAL- Fuel valve
(Superseded to UP07235)

$

$

Not available

39

Homelite 49598

DECAL- Caution

$

$

Not available

40

Homelite 49662

COVER- Switch (HGE3500)

$14.99

$

Usually ships in 3-7 days

0

41

Homelite 496991

STRAP- Battery (HGE3500)

$

$

Not available

42

Homelite 49700

BOLT- Battery (HGE3500)

$

$

Not available

43

Homelite 49705

SWITCH- Starter (HGE3500)
(Superseded to UP03487)

$

$

Not available

44

Homelite 49840

BRACKET- Choke (HGE3500)

$

$

Currently unavailable

45

Homelite 80044

SCREW- Hex hd. 1/4-20 x 1/2" (HGE3500)

$

$

Not available

46

Homelite 81053

NUT- Hex 1/4-20" (HGE3500)

$

$

Not available

47

Homelite 81092

NUT- Hex #10 (HGE3500)

$

$

Not available

48

Homelite 83046

WASHER- Lock (HGE3500)

$

$

Not available

49

Homelite JA376080

BATTERY (HGE3500)

$

$

Currently unavailable

50

Homelite JA376123

CABLE- Battery (-) (HGE3500)

$

$

Currently unavailable

51

Homelite JA376124

CABLE- Battery (+) (HGE3500)
(Superseded to UP03456)

$

$

Not available
