HGE 3500 A (UT-03623-A) - Homelite Generator Muffler & Frame Parts Diagram

Generator

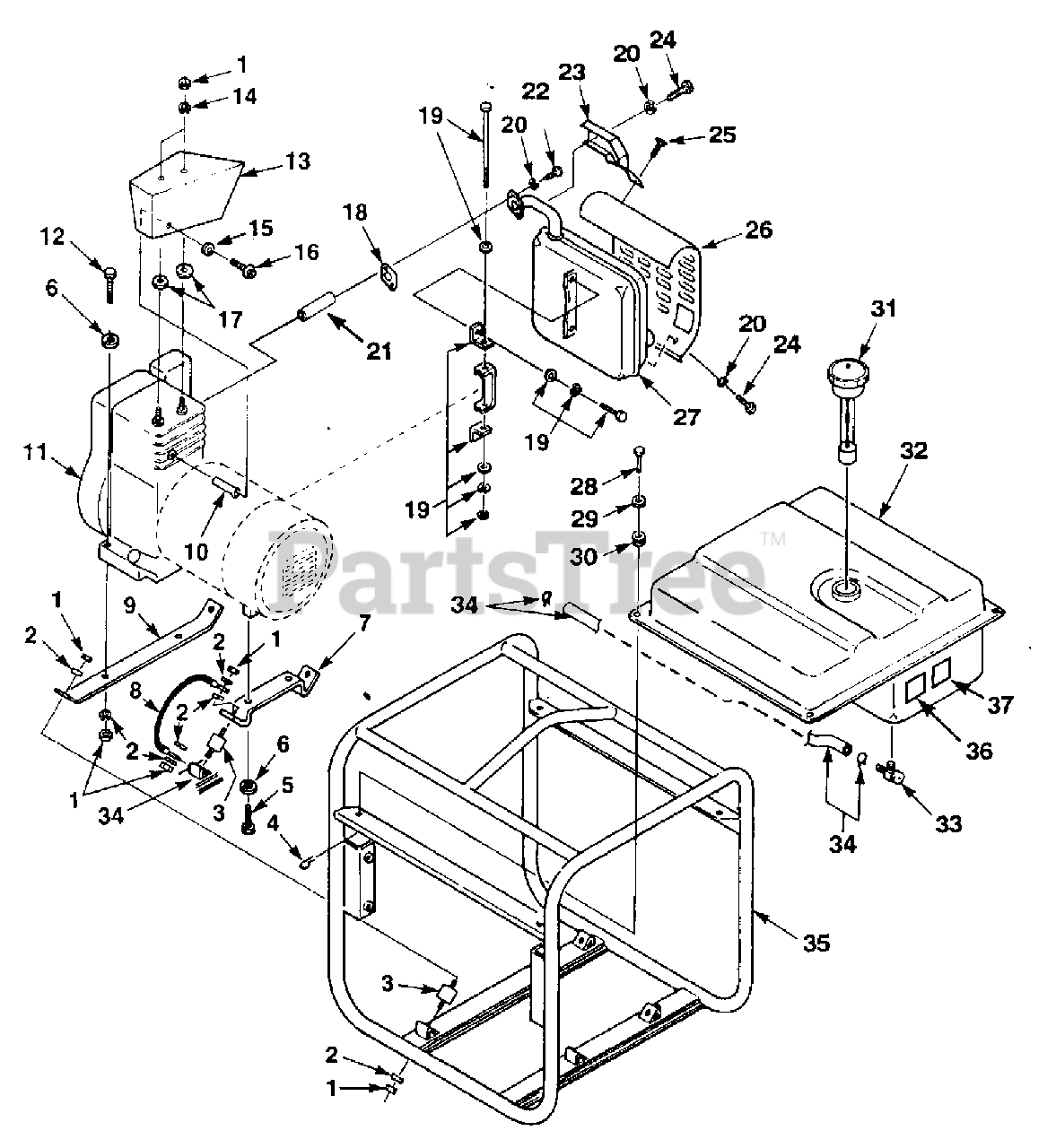

Muffler & Frame Parts Diagram

  • Title

1

Homelite 81162

NUT- (5/16-18")

$

$

Not available

2

Homelite 83081

WASHER-Lock Int.

$

$

Not available

3

Homelite 49367

ISOLATOR-Vibration
(Superseded to UP03483)

$

$

Not available

4

Homelite 49412

PIN-Cottor Hair

$

$

Not available

5

Homelite 82206

SCREW-Hex Tapping (5/16-18 X 1")

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 83081

WASHER-Lock Int.

$

$

Not available

7

Homelite 48944

SUPPORT-Generator

$

$

Not available

8

Homelite A49399

GROUND STRAP

$

$

Currently unavailable

9

Homelite 49265

SUPPORT-Engine
(Superseded to UP03535)

$30.99

$

Usually ships in 3-7 days

0

10

Homelite 49392

SPACER

$

$

Not available

11

ENGINE (See Note 1)

Note: For Engine replacement parts on HG3500A Engine Model #170432, Type #6112-01, see your Briggs & Stratton Dealer.

$

$

Not available

12

Homelite 80197

SCREW-Hex Hd. (5/16-18 X 2")

$

$

Not available

13

Homelite 493481

DEFLECTOR-Air

$

$

Currently unavailable

14

Homelite 83030

WASHER-Lock

$

$

Not available

15

Homelite 84110

WASHER-Flat(#10)

$

$

Not available

16

Homelite 46044A

SCREW (10-24 X 1 1/2")
(Superseded to UP03773)

$

$

Not available

17

Homelite 84032

WASHER-Flat (5/16")

$

$

Not available

18

Homelite 49370

GASKET-Muffler

$

$

Not available

19

Homelite A49304

MUFFLER BRACKET KIT

$101.99

$

Usually ships in 3-7 days

0

20

Homelite 83009

WASHER (1/4")

$8.49

$

Usually ships in 3-7 days

0

21

Homelite 96127

STUD-Cylinder
(Superseded to 96127A)

$7.49

$

Usually ships in 3-7 days

0

22

Homelite 96212

NUT-Hex

$

$

Not available

23

Homelite 49421

SHIELD-Exhaust

$

$

Not available

24

Homelite 80044

SCREW-Hex Cap (14-20 X 1 1/8")

$

$

Not available

25

Homelite 82279

SCREW-Tap Pan Hd. (#8-18 X 3/8")

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 49419

SHIELD-Muffler

$

$

Not available

27

Homelite 49372

MUFFLER

$

$

Not available

28

Homelite 49329

PIN-Clevis

$

$

Not available

29

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

30

Homelite 49351

GROMMET-Isolator

$

$

Not available

31

Homelite 49179

CAP-Fuel

$

$

Not available

32

Homelite 489311

FUEL TANK

$

$

Currently unavailable

33

Homelite 49005

VALVE-Fuel

$

$

Not available

34

Homelite A49306

FUEL LINE ASSEMBLY (See Note 2)
(Superseded to UP03517)

$

$

Not available

35

Homelite A493211A

ROLL CAGE

$1272.99

$

Usually ships in 3-7 days

0

36

Homelite 49340

DECAL-Fuel Valve
(Superseded to UP07235)

$

$

Not available

37

Homelite 49598

DECAL- Caution

$

$

Not available
