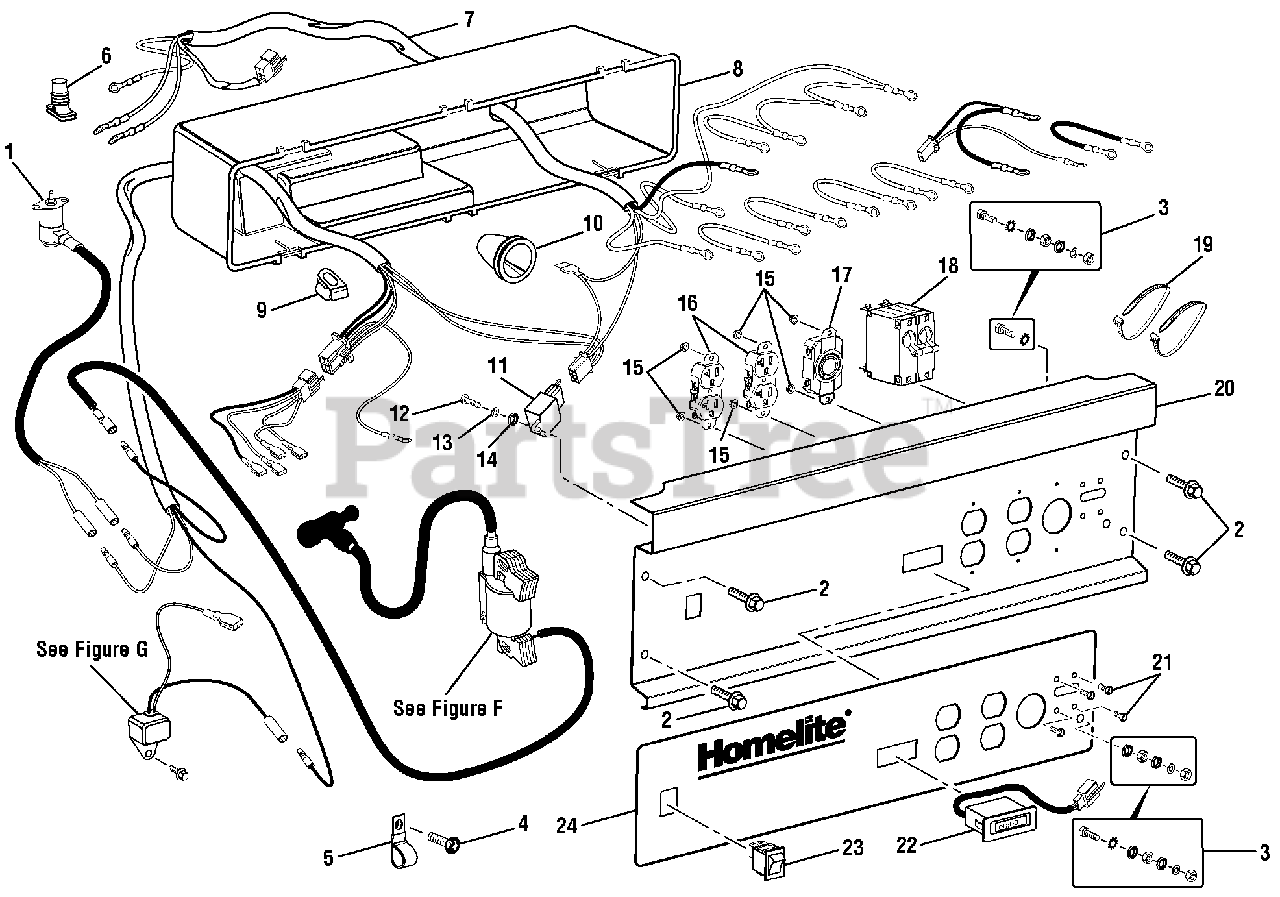

HGCA 4500 - Homelite 4,500 Watt Generator Figure C Parts Diagram

4,500 Watt Generator

Figure C Parts Diagram

  • Title

Homelite 310714013

Control Panel Assembly

$

$

Not available

1

Homelite 290600001

Fuel Valve Solenoid
(Superseded to 099958001707)

$119.99

$

In Stock, only 2 left!

0

2

Homelite 660972009

Bolt (M6 x 16 mm)

$

$

Not available

3

Homelite 310395001

Ground Terminal Assembly

$

$

Not available

4

Homelite 660481006

Screw (M6 x 12 mm)

$

$

Not available

5

Homelite 678815006

Wire Clamp

$

$

Not available

6

Homelite 570423001

Boot, Square

$7.49

$

Usually ships in 3-7 days

0

7

Homelite 290493001

Wiring Harness Assembly

$

$

Not available

8

Homelite 519813005

Cover, Control Panel Box

$

$

Not available

9

Homelite 570422001

Boot, Switch Wire

$

$

Not available

10

Homelite 570424001

Boot, Round

$5.49

$

Usually ships in 3-7 days

0

11

Homelite 840270001

Diode Assembly

$

$

Not available

12

Homelite 661403001

Screw (M4 x 15 mm)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 678600004

Lock Washer (M4)

$

$

Not available

14

Homelite 678600005

Washer (M4)

$

$

Not available

15

Homelite 678827001

Hex Nut (M4)

$

$

Not available

16

Homelite 290491001

120 V/ 20amp Duplex Receptacle

$18.99

$

Usually ships in 3-7 days

0

17

Homelite 290401003

220 V/ 30amp Twist Lock Receptacle

$25.99

$

In Stock, only 1 left!

0

18

Homelite 780351011

Circuit Breaker, 2 pole 25 amp

$81.99

$

Usually ships in 3-7 days

0

19

Homelite 678819002

Tie Wrap

$

$

Not available

20

Homelite 638700016

Control Panel

$

$

Not available

21

Homelite 660914003

Screw (M3 x 6 mm)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 290492001

Meter

$39.99

$

In Stock, only 2 left!

0

23

Homelite 760700005

Ignition Switch

$

$

Not available

24

Homelite 940779026

Performance/Power Outlet Label

$

$

Not available

Homelite 661403002

Screw (M4 x 10 mm)

Note: Not Shown

$2.49

$

Usually ships in 3-7 days

0
