HGCA 3000 - Homelite 3,000 Watt Generator General Assembly Parts Diagram

3,000 Watt Generator

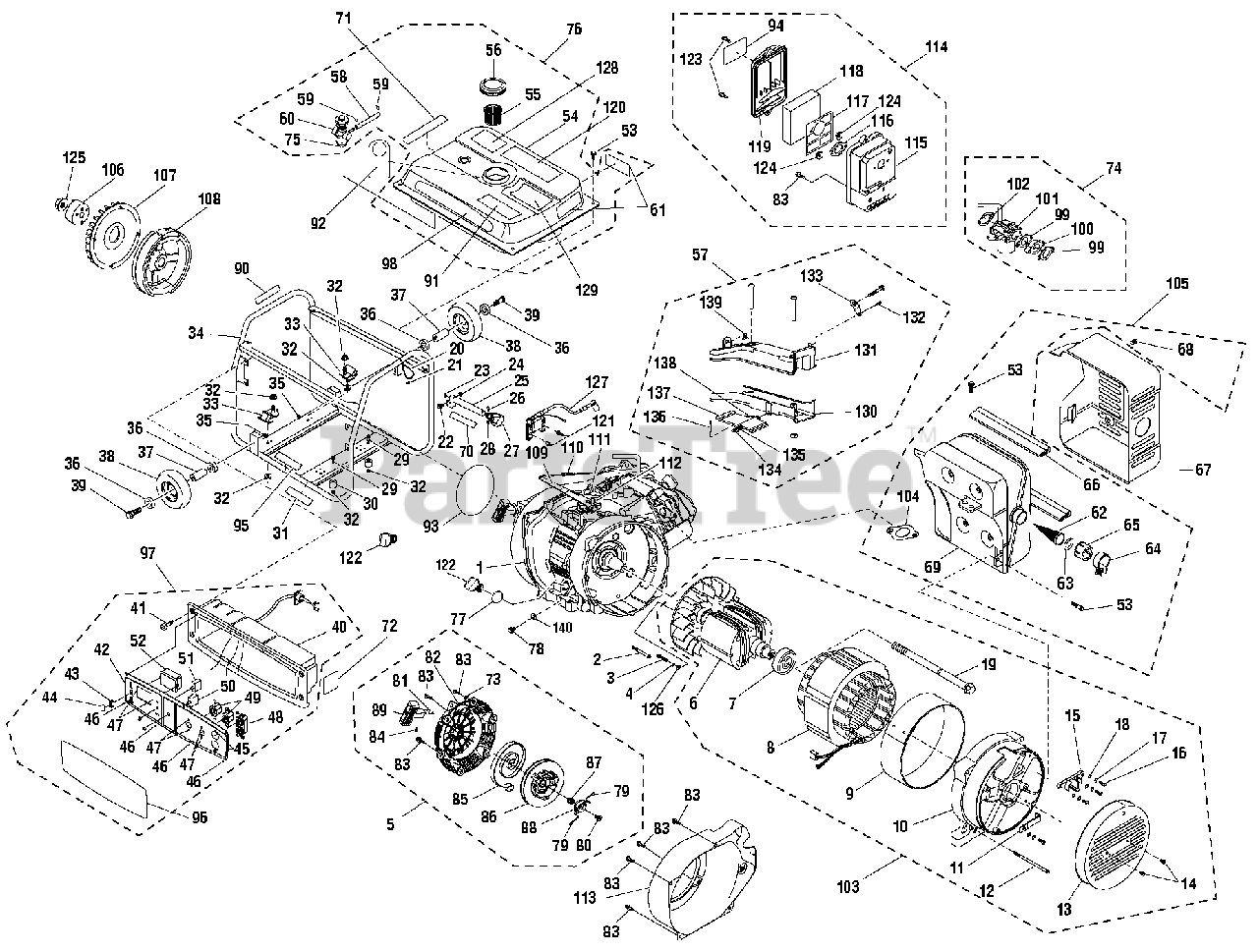

General Assembly Parts Diagram

  • Title

1

Homelite 309591029

Engine SPE195

Note: (Inc. Key Nos. 77-78, 109-112, 122 and 140)

$

$

Not available

2

Homelite 661505008

Bolt (M8 x 35 mm)

$

$

Not available

3

Homelite 660972006

Bolt (M6 x 12 mm)

$

$

Not available

4

Homelite 678370002

Washer 6

$

$

Not available

5

Homelite 310755001

Recoil Stator Assembly

Note: (Inc. Key Nos. 73 and 79-89, Plastic)

$83.99

$

In Stock, only 2 left!

0

6

Homelite 310771001

Rotor Assembly

$

$

Not available

7

Homelite 678289004

Bearing

$

$

Not available

8

Homelite 310772001

Stator Assembly

$

$

Not available

9

Homelite 638545001

Stator Cover

$

$

Not available

10

Homelite 638546001

Rear Frame

$

$

Not available

11

Homelite 638344003

Wire Compressing Plate

$

$

Not available

12

Homelite 660972002

Bolt (M6 x 103 mm) (88)

$

$

Not available

13

Homelite 678318002

Rear End Cover

$

$

Not available

14

Homelite 660972003

Bolt (M6 x 10 mm)

$

$

Not available

15

Homelite 678737001

Wire Rack

$

$

Not available

16

Homelite 660901007

Screw (M5 x 14 mm)

$

$

Not available

17

Homelite 678370003

Lock Washer (M5)

$

$

Not available

18

Homelite 099958002064

Washer (M5)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 660596011

Bolt

$

$

Not available

20

Homelite 310773001

Rope

$

$

Not available

21

Homelite 678738001

Pin

$

$

Not available

22

Homelite 661505009

Bolt (M8 x 40 mm)

$

$

Not available

23

Homelite 638547001

Handle Stem Head

$

$

Not available

24

Homelite 678457005

Lock Nut (M8)

$

$

Not available

25

Homelite 638548001

Pole

$

$

Not available

26

Homelite 661532001

Square Bolt

$

$

Not available

27

Homelite 638224002

Handle

$

$

Not available

28

Homelite 678460005

Nut (M6)

$

$

Not available

29

Homelite 678355004

Screw (M8 x 40 mm)

$

$

Not available

30

Homelite 310762001

Alternator Vibration Absorber

$9.49

$

Usually ships in 3-7 days

0

31

Homelite 940654103

Combustion Warning Label
(Superseded to 940947003)

$

$

Not available

32

Homelite 678355003

Nut (M8)

$

$

Not available

33

Homelite 310761001

Engine Vibration Absorber

$

$

Not available

34

Homelite 308581008

Frame

$

$

Not available

35

Homelite 678457006

Lock Nut (M10 x 1.25 in.)

$

$

Not available

36

Homelite 638494006

Wheel Bushing

$

$

Not available

37

Homelite 638494007

Axis Cover

$

$

Not available

38

Homelite 308451011

Wheel

$

$

Not available

39

Homelite 660971002

Bolt (M10 x 75 mm)

$

$

Not available

40

Homelite 521512001

Control Box

$

$

Not available

41

Homelite 660481005

Screw (M6 x 14 mm)

$

$

Not available

42

Homelite 638700014

Control Panel

$

$

Not available

43

Homelite 760504003

Engine Switch

$

$

Not available

44

Homelite 570417001

Switch Jacket

$

$

Not available

45

Homelite 661533001

Bolt (M3.5 x 9 mm)

$

$

Not available

46

Homelite 661534001

Bolt (M3.9 x 9 mm)

$

$

Not available

47

Homelite 661535001

Bolt (M4 x 8 mm)

$

$

Not available

48

Homelite 290400001

120 V 20 Amp Receptacle

$

$

Not available

49

Homelite 290400005

120 V 30 Amp Receptacle

$29.99

$

Usually ships in 3-7 days

0

50

Homelite 780351008

AC Circuit Breaker (20 A)

$

$

Not available

51

Homelite 780351009

AC Circuit Breaker (25 A)

$

$

Not available

52

Homelite 308393003

4 in 1 Digital Meter

$

$

Not available

53

Homelite 660972004

Bolt (M6 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 310711046

Fuel Tank

$

$

Not available

55

Homelite 308103004

Fuel Strainer

$3.99

$

Usually ships in 3-7 days

0

56

Homelite 310720024

Fuel Tank Cap

$10.99

$

In Stock, only 1 left!

0

57

Homelite 310763001

Air Conduct Assembly

Note: (Inc. Key Nos. 130-139)

$

$

Not available

58

Homelite 570358020

Fuel Hose

$6.99

$

Usually ships in 3-7 days

0

59

Homelite 678815005

Fuel Hose Clip

$

$

Not available

60

Homelite 308459003

Fuel Cock

$

$

Not available

61

Homelite 940680034

Hot Surface Label
(Superseded to 940680027)

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 308578002

Muffler Screen

$

$

Not available

63

Homelite 678821001

Washer

$

$

Not available

64

Homelite 678822001

Hoop

$

$

Not available

65

Homelite 638538001

Muffler Screen Cover

$

$

Not available

66

Homelite 570356003

Shockproof Bar

$

$

Not available

67

Homelite 638539001

Muffler Cover

$

$

Not available

68

Homelite 660972007

Bolt (M6 x 10 mm)

$

$

Not available

69

Homelite 309322009

Muffler

$

$

Not available

70

Homelite 940514001

Locking Pin Label

$2.49

$

Usually ships in 3-7 days

0

71

Homelite 940996007

Start Guide Label

$

$

Not available

72

Homelite 941494002

Ground Label

$4.99

$

Usually ships in 3-7 days

0

73

Homelite 638544001

Bushing Block

$10.99

$

Usually ships in 3-7 days

0

74

Homelite 309369001

Carburetor Assembly

Note: (Inc. Key Nos. 99-102)

$

$

Not available

75

Homelite 678670002

Nut

$

$

Not available

76

Homelite 310711045

Fuel Tank Assembly

Note: (Inc. Key Nos. 54-56, 58-61, 71, 75 , 91 and 98)

$

$

Not available

77

Homelite 570763001

Oil Filler Seal

$

$

Not available

78

Homelite 660839002

Drain Plug (M10 x 1.25-16 )

$

$

Not available

79

Homelite 678736001

Pawl

$

$

Not available

80

Homelite 661401001

Bolt

$

$

Not available

81

Homelite 310770001

Rope

$12.99

$

Usually ships in 3-7 days

0

82

Homelite 678320001

Starter Case

$1.99

$

Usually ships in 3-7 days

0

83

Homelite 660481004

Screw (M6 x 12 mm)

$

$

Not available

84

Homelite 678733001

Rope Clip

$

$

Not available

85

Homelite 678466003

Starter Spring

$13.99

$

Usually ships in 3-7 days

0

86

Homelite 638543001

Drum Sheave

$13.99

$

Usually ships in 3-7 days

0

87

Homelite 678734001

Spring

$

$

Not available

88

Homelite 678735001

Pawl Guide

$

$

Not available

89

Homelite 638701006

Starter Handle

$

$

Not available

90

Homelite 940974001

Fire Danger Label

$

$

Not available

91

Homelite 940513008

Ground Warning Label

$

$

Not available

92

Homelite 940971040

Oil Hangtag

$

$

Not available

93

Homelite 940705063

Engine Shround Logo

$4.99

$

Usually ships in 3-7 days

0

94

Homelite 940647041

Choke Label

$5.49

$

Usually ships in 3-7 days

0

95

Homelite 940708007

Lubricant Label

$

$

Not available

96

Homelite 940040009

Control Panel Label

$

$

Not available

97

Homelite 310714009

Control Panel Assembly

Note: (Inc. Key Nos. 40-52 and 96)

$

$

Not available

98

Homelite 940705062

Logo Label

$

$

Not available

99

Homelite 570740003

Gasket

$

$

Not available

100

Homelite 678345002

Plate

$

$

Not available

101

Homelite 309369002

Carburetor

$

$

Not available

102

Homelite 570740002

Gasket

$

$

Not available

103

Homelite 310759001

Alternator Assembly

Note: (Inc. Key Nos. 6-19)

$

$

Not available

104

Homelite 678728001

Exhaust Gasket

$3.99

$

Usually ships in 3-7 days

0

105

Homelite 309322008

Muffler Assembly

Note: (Inc. Key Nos. 53, 62-66, 68-69 and 104)

$

$

Not available

106

Homelite 310756001

Starting Hub

$2.49

$

Usually ships in 3-7 days

0

107

Homelite 310757001

Fan

$13.99

$

Usually ships in 3-7 days

0

108

Homelite 310758001

Flywheel

$

$

Not available

109

Homelite 678281002

Governor Arm

$

$

Not available

110

Homelite 678361002

Link Rod

$

$

Not available

111

Homelite 678363002

Carburetor Spring

$

$

Not available

112

Homelite 678280002

Spring

$4.49

$

Usually ships in 3-7 days

0

113

Homelite 678342002

Fan Case

$

$

Not available

114

Homelite 310760001

Air Cleaner Assembly

Note: (Inc. Key Nos. 115-119)

$68.99

$

In Stock, only 1 left!

0

115

Homelite 521508001

Air Filter Case

$17.99

$

Usually ships in 3-7 days

0

116

Homelite 638344002

Plate

$

$

Not available

117

Homelite 638345002

Element Fitting Plate

$6.99

$

Usually ships in 3-7 days

0

118

Homelite 310764001

Air Filter Element

$

$

Not available

119

Homelite 521509001

Air Filter Cover

$17.99

$

Usually ships in 3-7 days

0

120

Homelite 940707081

Warning Label

$

$

Not available

121

Homelite 660972015

Screw (M6 x 20 mm)

$

$

Currently unavailable

122

Homelite 310733002

Oil Cap/Dipstick

$5.99

$

Usually ships in 3-7 days

0

123

Homelite 660972004

Screw (M6 x 12 mm, Fillister Hd.)

$2.49

$

Usually ships in 3-7 days

0

124

Homelite 678460005

Nut (M6)

$

$

Not available

125

Homelite 678727004

Nut (M16, Flange Hd.)

$

$

Currently unavailable

126

Homelite 678370008

Washer

$

$

Currently unavailable

127

Homelite 310755002

Ignition Module

$314.99

$

Usually ships in 3-7 days

0

128

Homelite 940515016

CPSC Label

$11.99

$

Usually ships in 3-7 days

0

129

Homelite 940707080

Danger Label (Fr)

$

$

Not available

130

Homelite 570418001

Warm Air Tube Hypotheca

$

$

Not available

131

Homelite 570419001

Warm Air Tube Epitheca

$

$

Not available

132

Homelite 661536001

Bolt (M4.8 x 16 mm)

$

$

Not available

133

Homelite 519721004

Connector

$

$

Not available

134

Homelite 570740004

Gasket 5

$

$

Not available

135

Homelite 678519003

Spring

$

$

Not available

136

Homelite 678522009

Cotter Pin

$

$

Not available

137

Homelite 638344004

Valve Plate

$

$

Not available

138

Homelite 678740001

Rocker

$

$

Not available

139

Homelite 678739001

Elastic Nut (M44.8)

$

$

Not available

140

Homelite 570762001

Drain Plug Gasket

$

$

Not available

Homelite 987000583

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
