HGCA 1400 - Homelite 1,400 Watt Generator Figure D Parts Diagram

1,400 Watt Generator

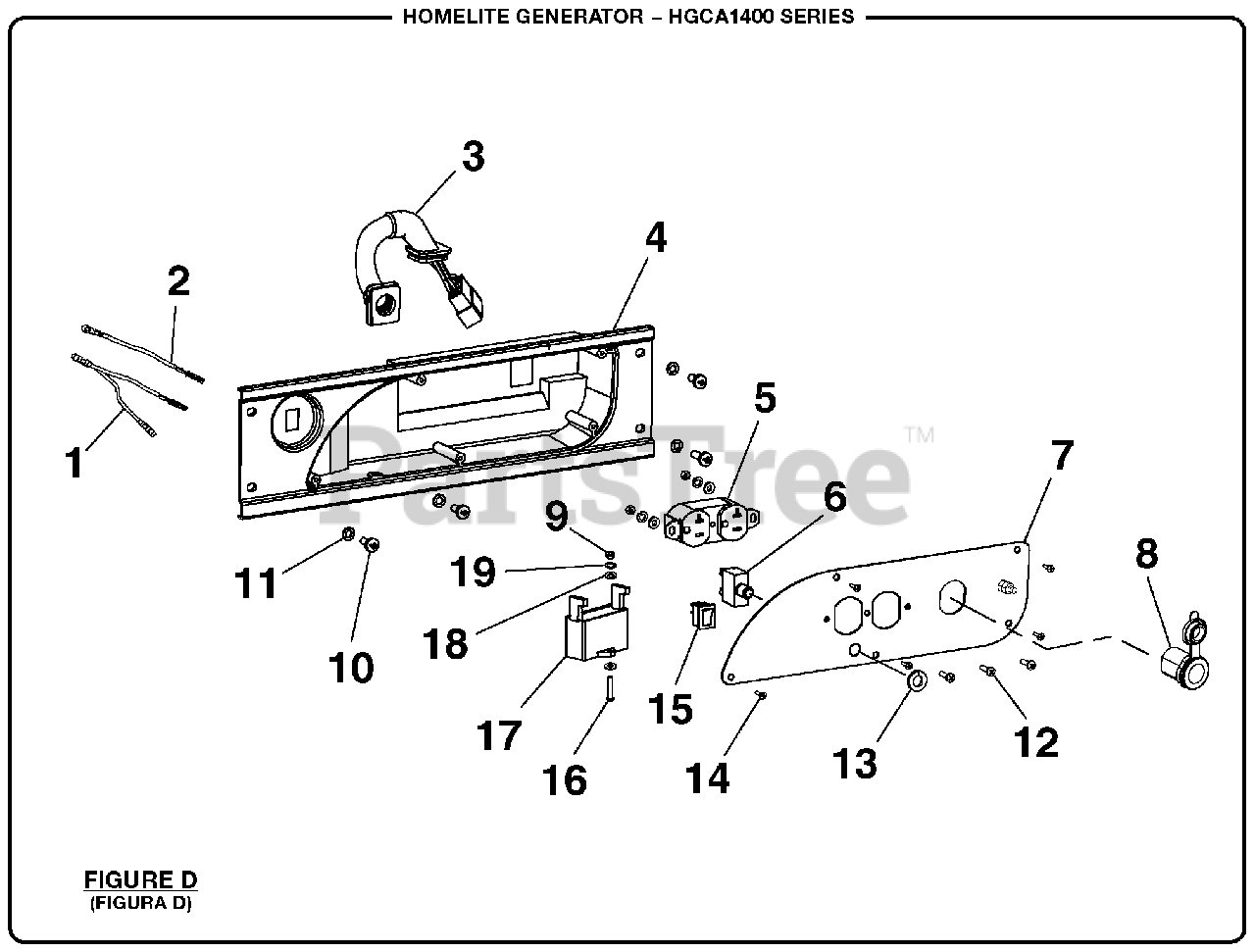

Figure D Parts Diagram

  • Title

1

Homelite 099958002074

Wire (Double End)

$

$

Currently unavailable

2

Homelite 099958002075

Wire (Single End)

$

$

Currently unavailable

3

Homelite 099958002027

Wire Harness

$

$

Not available

4

Homelite 099958002028

Control Panel Box

$

$

Not available

5

Homelite 099958002076

Receptacle

$

$

Not available

6

Homelite 099958002031

Circuit Breaker (12 AMP)

$

$

Not available

7

Homelite 099958002028

Cover Plate

$

$

Not available

8

Homelite 099958002077

DC outlet

$

$

Not available

9

Homelite 099958002084

Hex Nut (M4)

$

$

Not available

10

Homelite 099958002085

Screw (M6 x 12 mm)

$

$

Not available

11

Homelite 099958002086

Washer (M6)

$

$

Not available

12

Homelite 099958002078

Screw (M4 x 12 mm)

$

$

Not available

13

Homelite 099958002079

Knurled nut

$

$

Not available

14

Homelite 099958002080

Screw (M4 x 15 mm)

$

$

Not available

15

Homelite 099958002030

Switch

$

$

Not available

16

Homelite 099958002081

Bolt (M4 x 15 mm)

$

$

Not available

17

Homelite 099958002029

Capacitor

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 099958002082

Washer (M4)

$

$

Not available

19

Homelite 099958002083

Wavy Washer

$

$

Not available
