HGCA 1400 - Homelite 1,400 Watt Generator Figure C Parts Diagram

1,400 Watt Generator

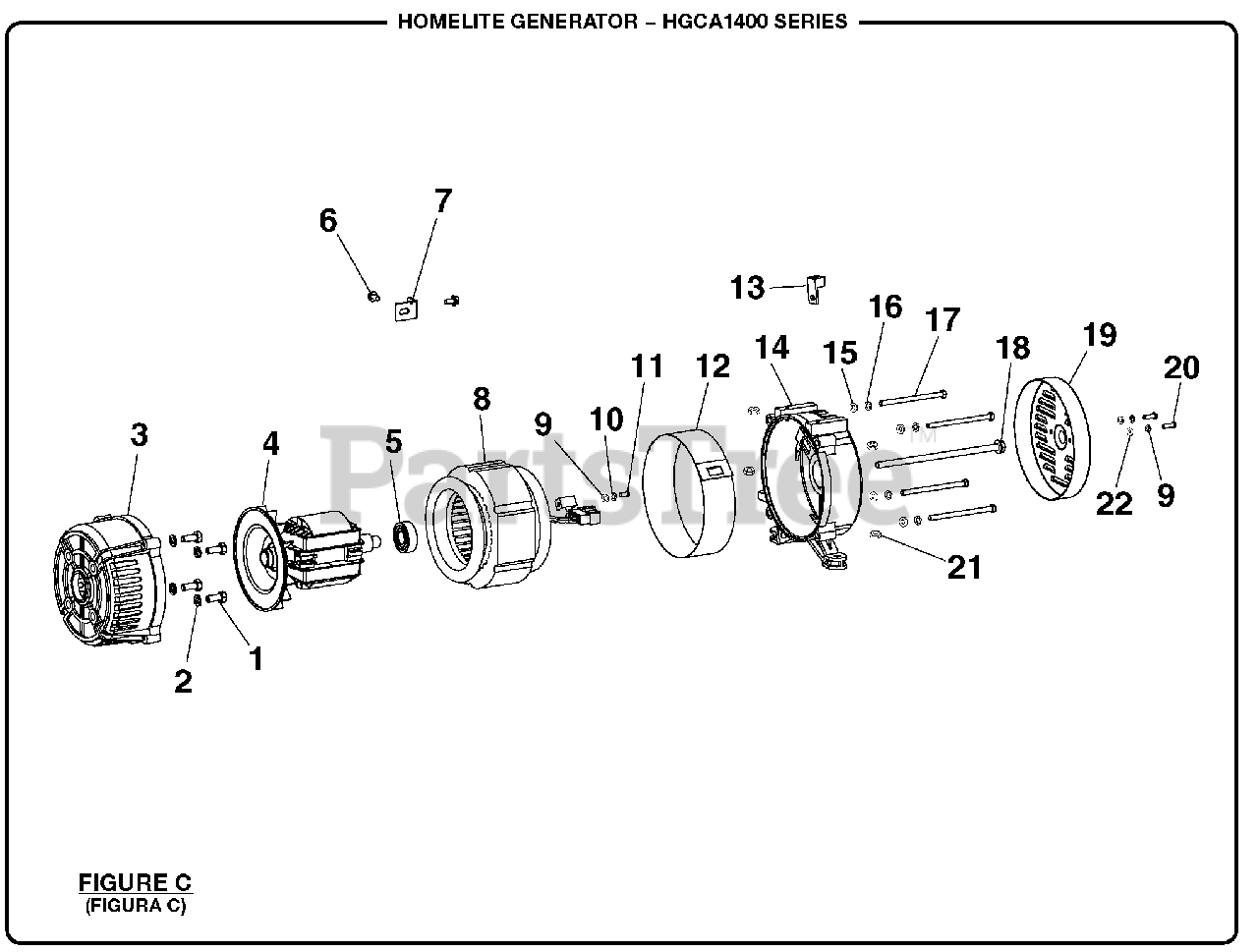

Figure C Parts Diagram

  • Title

1

Homelite 099958002060

Bushing

$

$

Not available

2

Homelite 099958002061

Bolt (M6 x 25 mm)

$

$

Not available

3

Homelite 099958002014

Fuel Strainer

$

$

Not available

4

Homelite 099958002015

Fuel Cap

$

$

Not available

5

Homelite 099958002062

Clip

$

$

Currently unavailable

6

Homelite 099958002063

Fuel Tank

$

$

Not available

7

Homelite 099958002013

Fuel Filter

$

$

Not available

8

Homelite 099958002016

Fuel Valve

$

$

Not available

9

Homelite 099958002064

Fuel Hose

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 099958002065

Lock Washer (M5)

$

$

Not available

11

Homelite 099958002066

Bolt (M5 x 10 mm)

$

$

Not available

12

Homelite 099958002017

Band

$

$

Not available

13

Homelite 099958002067

Grounding Pin

$

$

Not available

14

Homelite 099958002018

Bearing Case

$

$

Not available

15

Homelite 099958002068

Washer (M6)

$

$

Not available

16

Homelite 099958002069

Lock Washer (M6)

$

$

Not available

17

Homelite 099958002019

Bolt (M6)

$

$

Not available

18

Homelite 099958002020

Bolt

$

$

Not available

19

Homelite 099958002021

Brush Cover

$

$

Not available

20

Homelite 099958002070

Bolt (M5)

$

$

Not available

21

Homelite 099958002073

Lock Nut (M8)

$

$

Not available

22

Homelite 099958002072

Lock Washer (M5)

$2.49

$

Usually ships in 3-7 days

0
