HG03824GNAX - Generac 38kW Home Standby Generator (SN: 9760151 - 9760151) (2015) Ev Connection Box C2 Cpl (0K3011) Parts Diagram

38kW Home Standby Generator

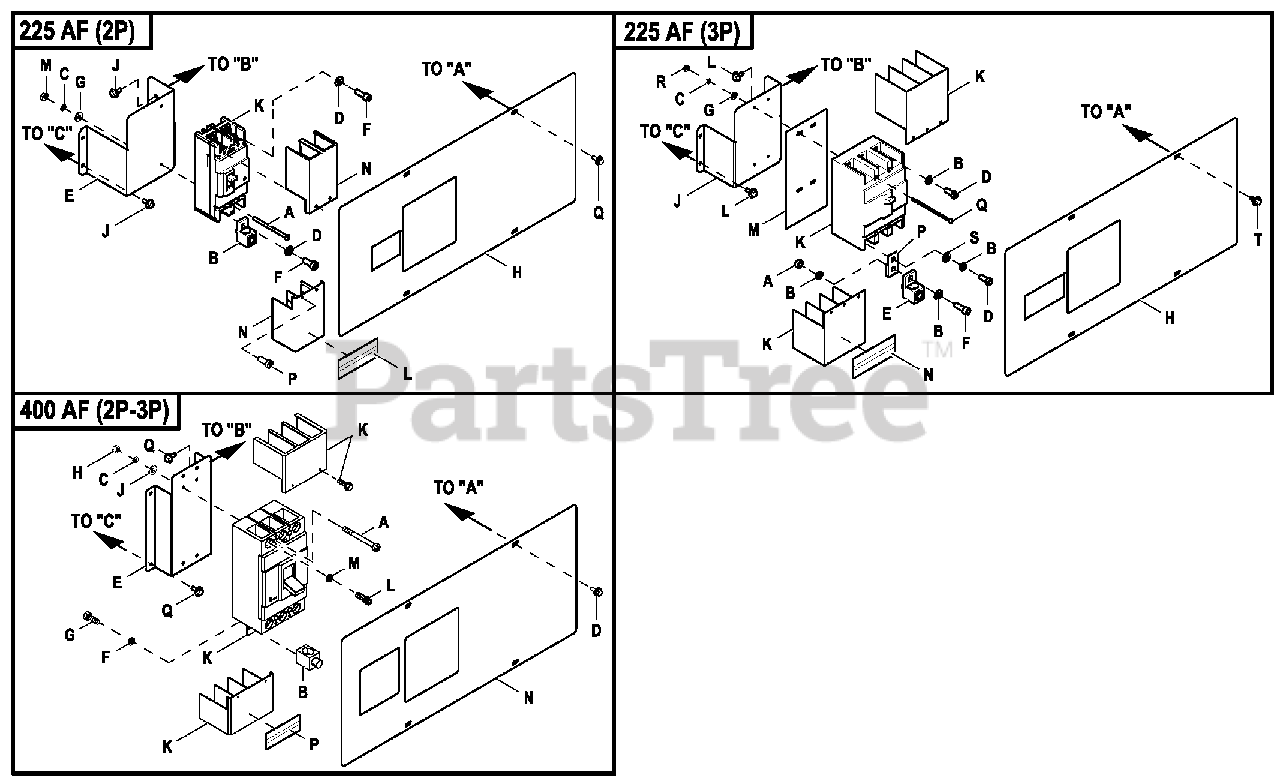

Ev Connection Box C2 Cpl (0K3011) Parts Diagram

  • Title

225AF (2P)

$

$

Not available

A

Generac 0K0973

SCREW RHM #8-32X2-1/2

$0.99

$

Usually ships in 2-12 days

0

B

Generac 0H6306

LUG SLDLSS 350 MCM-6 AL/CU

$11.99

$

Usually ships in 2-12 days

0

C

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

D

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

E

0K1487

STANDOFF CB BOX CONBOX.PRT

$

$

Not available

F

Generac 049897

SCREW SHC M8-1.25 X 20 G8

$

$

Not available

G

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

H

0K2693AST0R

COVER PLATE CNTRL PNL 225AF 2P

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFATURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER: WHEN ORDERING REPLACEMENT PART BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATRI

$

$

Not available

J

Generac 0E3257

SCREW HWHTF M6-1.0 X 16

$5.49

$

Usually ships in 2-12 days

0

K

Generac 0K0970

CB 125A2POLE 240V225AF

$337.99

$

Usually ships in 2-12 days

0

0K0972

CB 175A2POLE 240V225AF

$

$

Not available

Generac 0K0971

CB 150A2POLE 240V225AF

Note: DOES NOT INCLUDE COVERS IF NEED ORDER PART 0K8414

$324.99

$

Usually ships in 2-12 days

0

Generac 0K0133

CB 200A 2POLE 240V 225AF

Note: NO LONGER COMES WITH COVER AND SCREWS. IF NEEDED ORDER P/N 0K8414 QTY 1 AND P/N 0D96180010 QTY 1

$337.99

$

Usually ships in 2-12 days

0

L

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

M

Generac 022471

NUT HEX #8-32 STEEL
(Superseded to G022471)

$0.99

$

Usually ships in 2-12 days

0

N

Generac 0K8414

CB TERMINAL COVER 2 POLE 240V

$9.49

$

Usually ships in 2-12 days

0

P

Generac 0K8628

SCREW PFH 4-24 X 5/16 TCS

$0.99

$

Usually ships in 2-12 days

0

Q

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

225AF (3P)

$

$

Not available

A

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

B

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

C

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

D

Generac 049897

SCREW SHC M8-1.25 X 20 G8

$

$

Not available

E

Generac 0F8451

LUG SLDLSS 300 MCM-6 AL/CU

$16.99

$

Usually ships in 2-12 days

0

F

Generac 058306

SCREW SHC M8-1.25 X 25 C12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

G

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

H

0K26930ST0R

COVER PLATE CNTRL PNL 225AF 3P

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFATURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER: WHEN ORDERING REPLACEMENT PART BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATRI

$

$

Not available

J

0K1004

STANDOFF CB BOX CONBOX

$

$

Not available

K

Generac 0F4144

CB 0050A 3P 480V G 225AF

$389.99

$

Usually ships in 2-12 days

0

Generac 0F4145

CB 0060A 3P 480V G 225AF

$701.99

$

Usually ships in 2-12 days

0

Generac 0F4208

CB 0080A 3P 480V G 225AF

$414.99

$

Usually ships in 2-12 days

0

Generac 0F4209

CB 0090A 3P 480V G 225AF

$714.99

$

Usually ships in 2-12 days

0

Generac 0F4147

CB 0100A 3P 480V G 225AF

$662.99

$

Usually ships in 2-12 days

0

Generac 0F4148

CB 0125A 3P 480V G 225AF

$701.99

$

Usually ships in 2-12 days

0

Generac 0F4149

CB 0150A 3P 480V G 225AF

$662.99

$

Usually ships in 2-12 days

0

Generac 0F4150

CB 0175A 3P 480V G 225AF

$636.99

$

Usually ships in 2-12 days

0

Generac 0F4151

CB 0200A 3P 480V G 225AF

$636.99

$

Usually ships in 2-12 days

0

L

Generac 0E3257

SCREW HWHTF M6-1.0X 16

$5.49

$

Usually ships in 2-12 days

0

M

Generac 0F8432

INSUL CB 225AF

$16.99

$

Usually ships in 2-12 days

0

N

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

P

Generac 0F8843

BUS BAR 200A LUG ADAPTOR

$29.99

$

Usually ships in 2-12 days

0

Q

Generac 053640

SCREW RHM #8-32X3-1/4

$

$

Not available

R

Generac 022471

NUT HEX #8-32 STEEL
(Superseded to G022471)

$0.99

$

Usually ships in 2-12 days

0

S

Generac 022145

WASHER FLAT 5/16-M8ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

T

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

400AF (2P & 3P)

$

$

Not available

A

Generac 042419

SCREW RHM 10-32X4

$

$

Not available

B

Generac 0A7822

LUG SLDLSS 600/250-1/0X1/4-28

Note: QTY. REQ. FOR 2 POLE BREAKER / QTY. REQ. FOR 3 POLE BREAKER.

$46.99

$

Usually ships in 2-12 days

0

C

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

D

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

E

0K8366

STANDOFF CB MOUNT CONBOX

$

$

Not available

F

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

Note: QTY. REQ. FOR 2 POLE BREAKER / QTY. REQ. FOR 3 POLE BREAKER.

$2.99

$

In Stock, only 1 left!

0

G

Generac 0A8261

SCREW HHC 1/4-28 X 5/8 .625TH

Note: QTY. REQ. FOR 2 POLE BREAKER / QTY. REQ. FOR 3 POLE BREAKER.

$0.99

$

Usually ships in 2-12 days

0

H

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

J

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

K

Generac 0F4153

CB 0250A 3P 480V G 400AF

$1740.99

$

Usually ships in 2-12 days

0

Generac 0F4738

CB 0300A 2P 480V G 400AF

Note: QTY. REQ. FOR 2 POLE BREAKER / QTY. REQ. FOR 3 POLE BREAKER.

$1260.99

$

Usually ships in 2-12 days

0

L

Generac 052647

SCREW SHCM10-1.5X25C12.9

Note: QTY. REQ. FOR 2 POLE BREAKER / QTY. REQ. FOR 3 POLE BREAKER.

$

$

Not available

M

Generac 046526

WASHER LOCK M10

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFATURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER: WHEN ORDERING REPLACEMENT PART BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATRI

$

$

Not available

N

0K2693BST0R

COVER PLATE CNTRL PNL 400AF 3P

$

$

Not available

P

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

Q

Generac 0E3257

SCREW HWHTF M6-1.0 X 16

$5.49

$

Usually ships in 2-12 days
