HG03224KNAX - Generac 32kW Home Standby Generator (SN: 9760150 - 9760150) (2016) Ev Connection Box C2 Cpl (0K3011) Parts Diagram

32kW Home Standby Generator

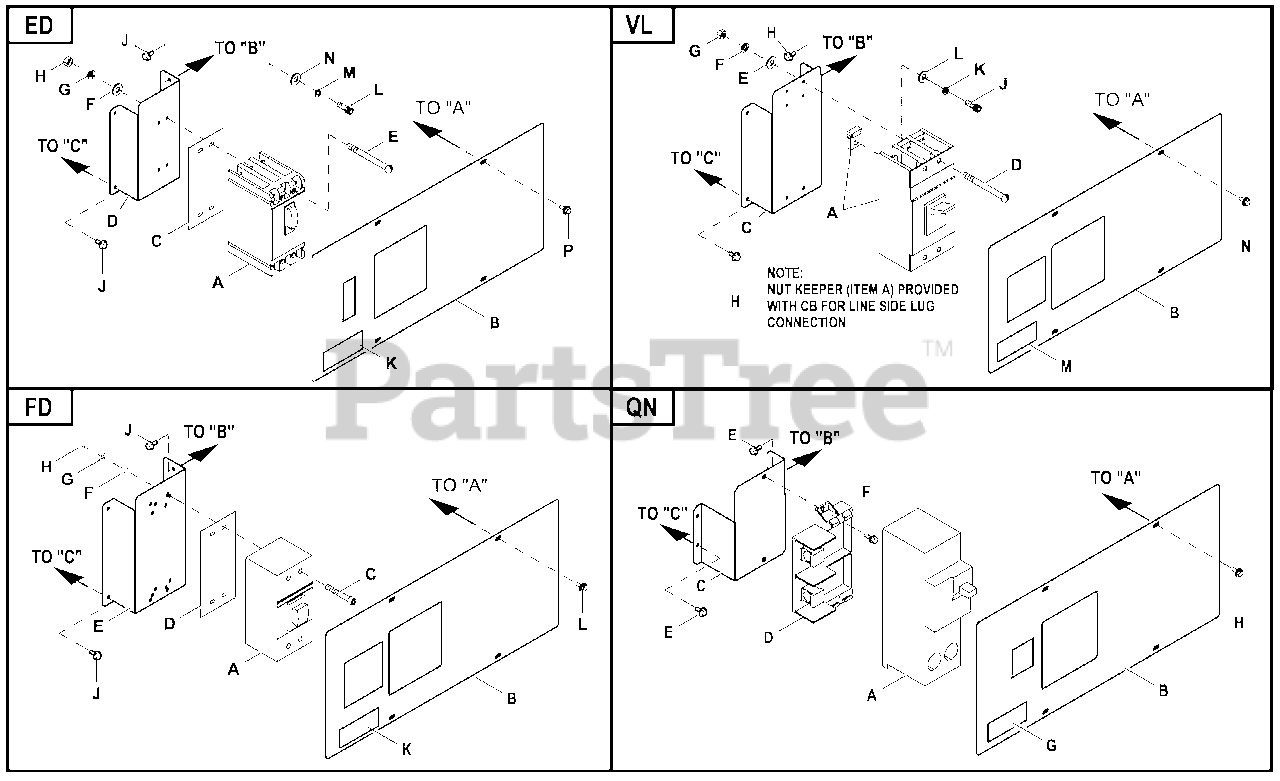

Ev Connection Box C2 Cpl (0K3011) Parts Diagram

  • Title

ED

$

$

Not available

A

Generac 0D5553

CB 0060A 3P 480V S ED4 LL

$1207.99

$

Usually ships in 2-12 days

0

Generac 0D5555

CB 0080A 3P 480V S ED4 LL

Note: PART AVAILABLE AT VINTAGE PARTS--PH:877-846-8243

$

$

Not available

Generac 0D5557

CB 0100A 3P 480V S ED4 LL

$766.99

$

Usually ships in 2-12 days

0

Generac 0D9693

CB 0125A 3P 480V S ED4 LL

$1506.99

$

Usually ships in 2-12 days

0

B

0K84800ST0R

COVER PLATE CNTRL PNL ED

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFATURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER: WHEN ORDERING REPLACEMENT PART BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATRIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

C

Generac 0F0492

INSULATOR CB S(ED-3P)

$7.99

$

Usually ships in 2-12 days

0

D

0K8481

STANDOFF CB MOUNT CONBOX

$

$

Not available

E

Generac 048927

SCREW RHM #10-32X4-1/2

$

$

Not available

F

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

G

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

H

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

J

Generac 0E3257

SCREW HWHTF M6-1.0X 16

$5.49

$

Usually ships in 2-12 days

0

K

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

L

Generac 0A8278

SCREW SHC 1/4-28 X 3/4 G8.8 NZ

$2.49

$

Usually ships in 2-12 days

0

M

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

N

Generac 0D5621

WASHER-STEP 1/2ODX9/32ID BRASS

$4.49

$

Usually ships in 2-12 days

0

P

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

VL

$

$

Not available

A

0H7519

CB 0300A 3P 600V S JG-VL LL

$

$

Not available

B

0K2693BST0R

COVER PLATE CNTRL PNL 400AF 3P

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFATURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER: WHEN ORDERING REPLACEMENT PART BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATRIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

C

0K8366

STANDOFF CB MOUNT CONBOX

$

$

Not available

D

Generac 042419

SCREW RHM 10-32X4

$

$

Not available

E

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

F

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

G

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

H

Generac 0E3257

SCREW HWHTF M6-1.0X 16

$5.49

$

Usually ships in 2-12 days

0

J

Generac 040976

SCREW SHC M8-1.25 X 20 C12.9
(Superseded to G040976)

$1.49

$

In Stock, only 1 left!

0

K

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

L

Generac 022145

WASHER FLAT 5/16-M8ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

M

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

N

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

FD

$

$

Not available

A

Generac 0D5572

CB0150A3P 600V SFD6 LL

$2299.99

$

Usually ships in 2-12 days

0

Generac 0D5573

CB0175A3P 600V SFD6 LL

$2312.99

$

Usually ships in 2-12 days

0

Generac 0D5574

CB 0200A 3P 600V S FD6 LL

$2793.99

$

Usually ships in 2-12 days

0

Generac 0D5576

CB 0250A 3P 600V S FD6 LL

$3183.99

$

Usually ships in 2-12 days

0

B

0K2693BST0R

COVER PLATE CNTRL PNL 400AF 3P

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFATURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER: WHEN ORDERING REPLACEMENT PART BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATRIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

C

Generac 081320

SCREW SHC 1/4-20 X 4.5 G8.8 NZ

$

$

Not available

D

Generac 0F0199

INSULATOR CB FD FRAME 30MIL

$5.49

$

Usually ships in 2-12 days

0

E

0K8427

STANDOFF CB C2 ET KG JG

$

$

Not available

F

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

G

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

H

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

J

Generac 0E3257

SCREW HWHTF M6-1.0X 16

$5.49

$

Usually ships in 2-12 days

0

K

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

L

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

QN

$

$

Not available

A

Generac 0E7283

CB0150A2P 240V SQN2 LL

$646.99

$

Usually ships in 2-12 days

0

Generac 0E7284

CB0175A2P 240V SQN2 LL

$396.99

$

Usually ships in 2-12 days

0

Generac 0E3628

CB 0200A 2P 240V S QN2 LL

$610.99

$

Usually ships in 2-12 days

0

B

0K84490ST0R

CONBOX CONTRL COVER PNL

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFATURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER: WHEN ORDERING REPLACEMENT PART BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATRIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

C

0K1004

CB STANDOFF G 225AF 3P

$

$

Not available

D

Generac 0E3664

BASE, QN CIRCUIT BREAKER

$519.99

$

In Stock, only 1 left!

0

E

Generac 0E3257

SCREW HWHTF M6-1.0X 16

$5.49

$

Usually ships in 2-12 days

0

F

Generac 074908

SCREW HHTT M5-0.8X10BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

G

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0
