HG 6000 - Homelite Generator Crankcase Assy Parts Diagram

Generator

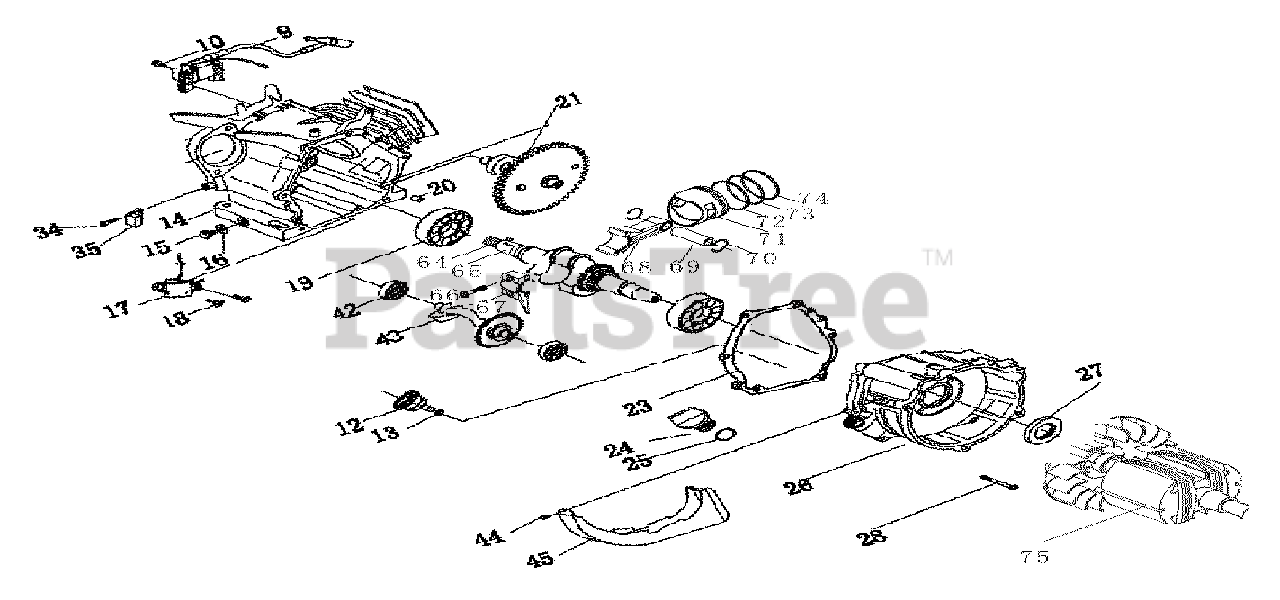

Crankcase Assy Parts Diagram

  • Title

9

Homelite H60-108

IGNITION COIL

$

$

Not available

10

Homelite H60-109

M6 x 25 bolt

$

$

Not available

12

Homelite H60-111

Speed regulating wheel

$

$

Not available

13

Homelite H60-112

Washer

$

$

Not available

14

Homelite H60-113

Crankcase

$

$

Not available

15

Homelite H60-114

Flanged bolt

$

$

Not available

16

Homelite H60-115

Washer

$

$

Not available

17

Homelite H60-116

Oil level gauge

$

$

Not available

18

Homelite H60-117

M6 x12 flanged bolt

$

$

Not available

19

Homelite H60-118

Bearing 6207
(Superseded to 099958001010)

$

$

Not available

20

Homelite H60-119

Locating ring

$

$

Not available

21

Homelite H60-120

Camshaft

$

$

Not available

23

Homelite H60-122

Gasket

$

$

Not available

24

Homelite H60-123

Oil cover

$

$

Not available

25

Homelite H60-124

Ring seal

$

$

Not available

26

Homelite H60-125

Crankcase cover

$

$

Not available

27

Homelite H60-126

Oil seal

$

$

Not available

28

Homelite H60-127

Flanged M8 x 35

$

$

Not available

34

Homelite H60-134

M6 x 12 hexagon bolt

$

$

Not available

35

Homelite H60-135

II DA

$

$

Not available

42

Homelite H60-142

Cylinder head cover

$

$

Not available

43

Homelite H60-143

Balancer shaft

$

$

Not available

44

Homelite H60-144

M6 x 12 flanged bolt

$

$

Not available

45

Homelite H60-145

Wind guide

$

$

Not available

64

Homelite H60-165

Key 4 x 13

$

$

Not available

65

Homelite H60-166

Crank

$

$

Not available

66

Homelite H60-167

Flanged bolt

$

$

Not available

67

Homelite H60-168

Connecting rod cap

$

$

Not available

68

Homelite H60-169

Connecting rod

$

$

Not available

69

Homelite H60-170

Piston pin

$

$

Not available

70

Homelite H60-171

Piston pin circlip

$

$

Not available

71

Homelite H60-172

Piston

$

$

Not available

72

Homelite H60-173

Oil ring

$

$

Not available

73

Homelite H60-174

2ndcompression ring

$

$

Not available

74

Homelite H60-175

1stcompression ring

$

$

Not available

75

Homelite H60-176

Rotor

$

$

Not available
