HG 5022 P - Homelite 5,000 Watt Generator Figura C Parts Diagram

5,000 Watt Generator

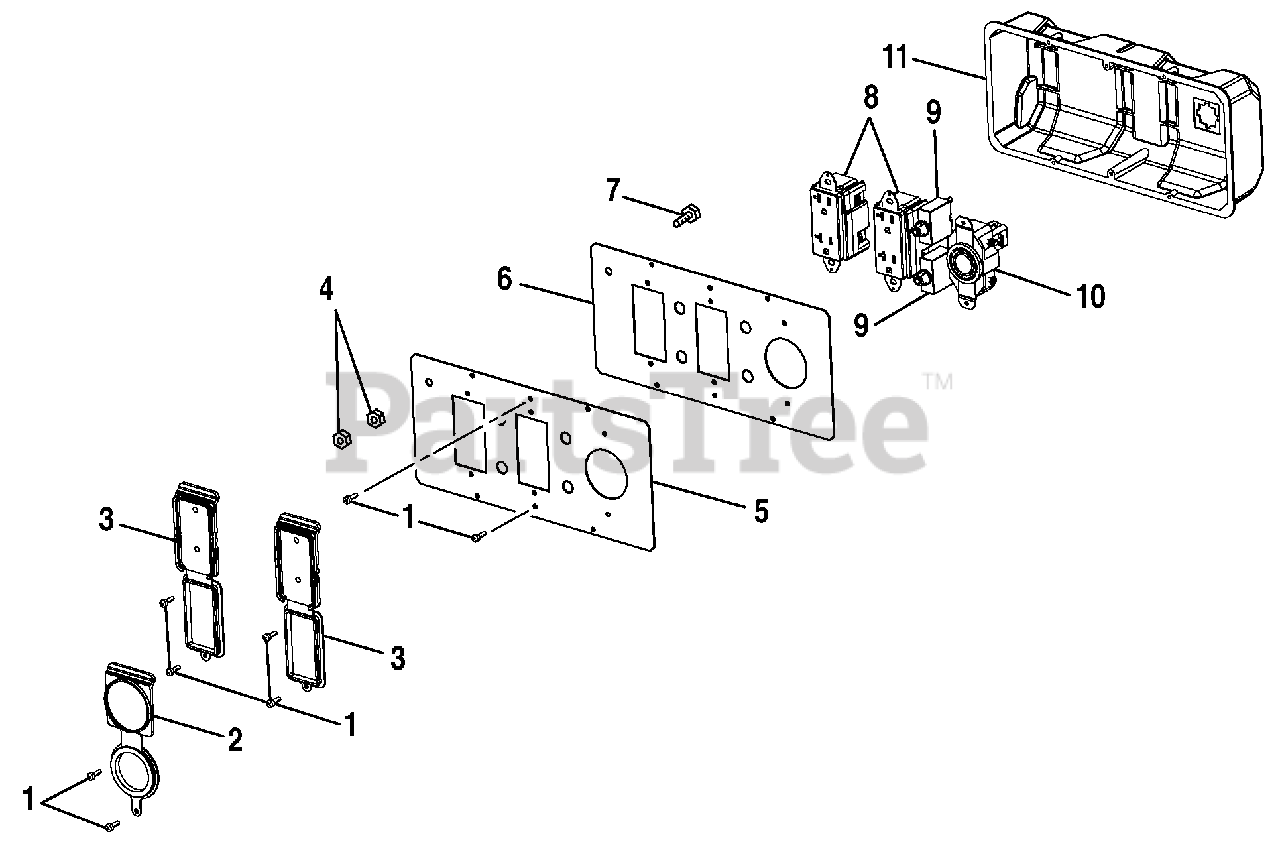

Figura C Parts Diagram

  • Title
1

Homelite 660598001

Screw (6-20 x 3/8 in.)

$2.99

$

In Stock, only 2 left!

0

2

Homelite 570412001

Outlet Cover (240 Volt)

$

$

Not available

3

Homelite 570412002

Outlet Cover (120 Volt)

$

$

Not available

4

Homelite 678810002

Hex Nut (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 940780008

Electrical Outlet Label

$

$

Not available

6

Homelite 638496004

Cover Plate

$

$

Not available

7

Homelite 661503011

Screw (1/4-20 x 5/8 in., Hex Hd.)

$

$

Not available

8

Homelite 290400006

Duplex Receptacle (120 Volt)

$

$

Not available

9

Homelite 780350001

Circuit Breaker (20 Amp, 125 Volt)

$

$

Not available

10

Homelite 290400007

Twist Lock Receptacle (120/240 Volt, 20 Amp)

$

$

Not available

11

Homelite 519707001

Rear Control Panel

$

$

Not available

Homelite 940040017

Control Panel Label

Note: Not Shoiwn

$

$

Not available
