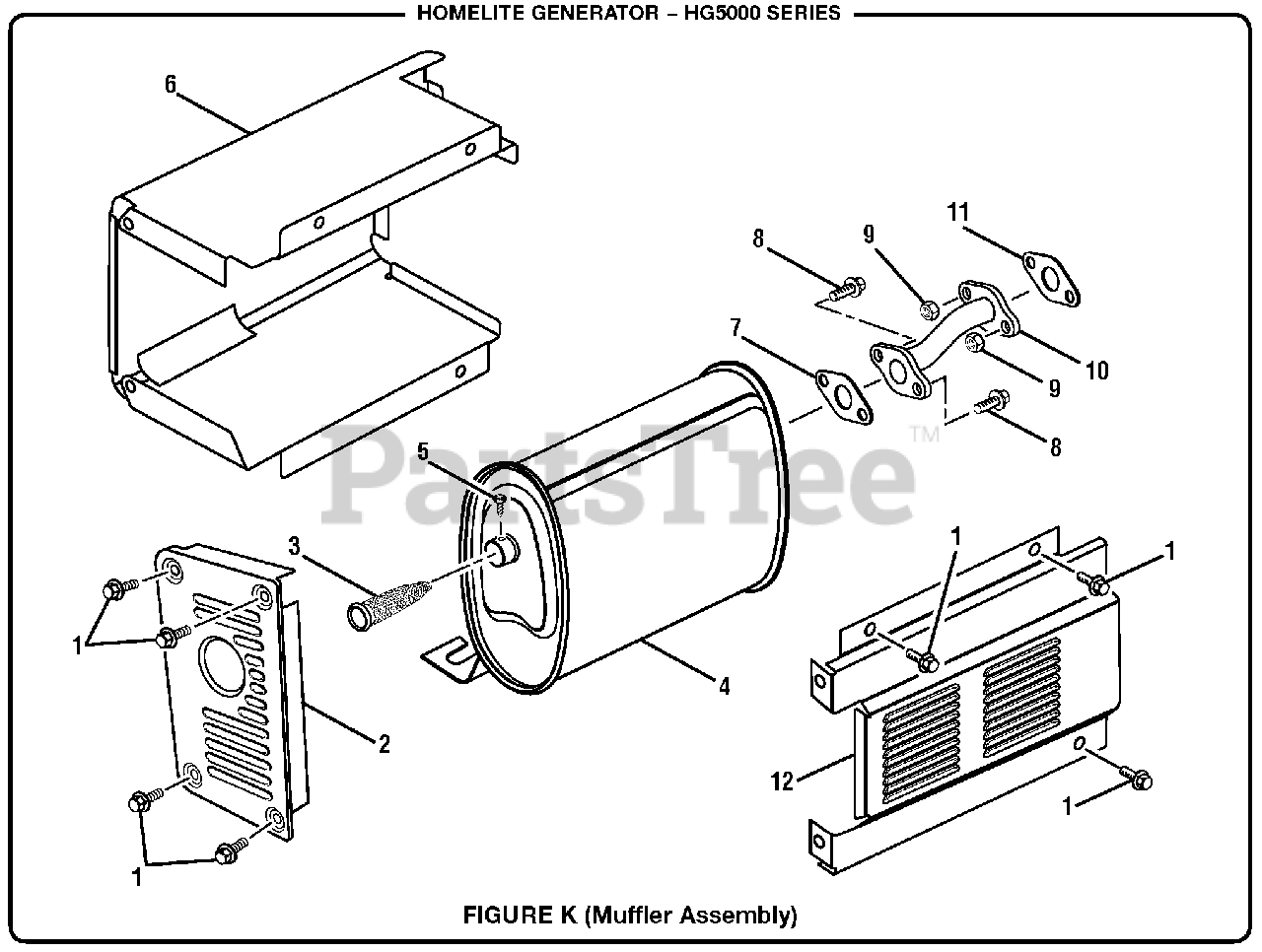

HG 5000 - Homelite 5,000 Watt Generator Figure K Parts Diagram

5,000 Watt Generator

Figure K Parts Diagram

  • Title
1

Homelite 661505011

Bolt (M8 x 16 mm Flange Hd.)

$

$

Not available

2

Homelite 678829001

Side Cover

$

$

Not available

3

Homelite 310598001

Spark Arrestor

$

$

Not available

4

Homelite 309322011

Muffler Assembly

$48.99

$

Usually ships in 3-7 days

0

5

Homelite 661404001

Set Screw

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 678830001

Inner Cover

$

$

Not available

7

Homelite 678728002

Exhaust Gasket (Engine)

$2.99

$

In Stock, only 4 left!

0

8

Homelite 661505012

Flange Bolt (M8 x 25 mm)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 678355006

Hex Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 310596001

Manifold (Exhaust)

$

$

Not available

11

Homelite 678728003

Gasket (Exhaust, Muffler Side)

$2.49

$

In Stock, only 4 left!

0

12

Homelite 678828001

Outer Cover

$

$

Not available
