HG 5000 - Homelite 5,000 Watt Generator Figure J Parts Diagram

5,000 Watt Generator

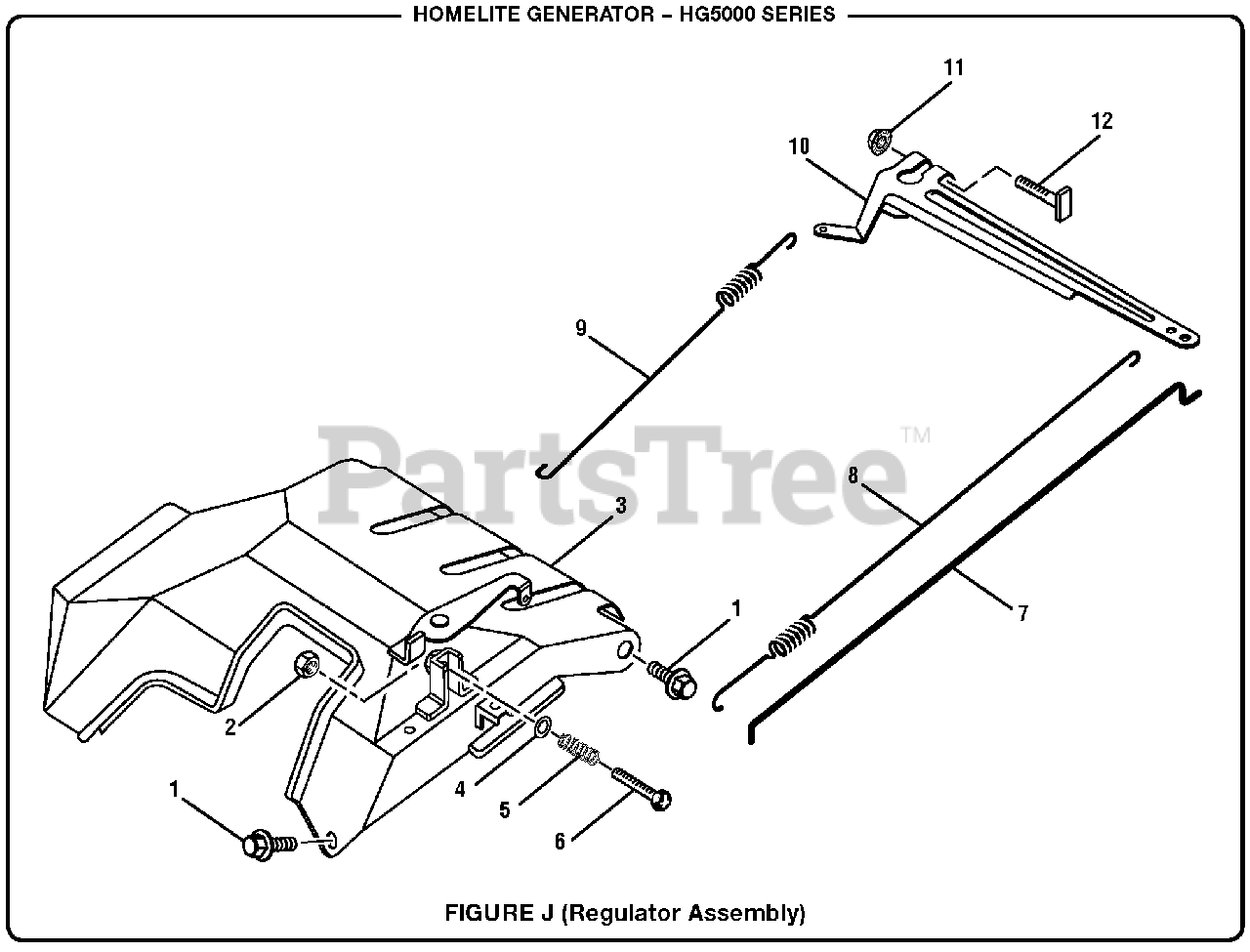

Figure J Parts Diagram

  • Title
1

Homelite 660972014

Bolt (M6 x 12 Flange)

$

$

Not available

2

Homelite 678292002

Hex Nut (M5)

$

$

Not available

3

Homelite 638626001

Engine Cover

$

$

Not available

4

Homelite 678389003

Washer (M5)

$

$

Not available

$

$

Not available

6

Homelite 661402003

Screw (M5 x 40)

$

$

Not available

$

$

Not available

8

Homelite 099958001032

Regulator Spring (Fine)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 099958001031

Regulator Spring (Back)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 678862001

Regulating Arm

$

$

Not available

11

Homelite 678610005

Flange Nut (M6)

$

$

Not available

12

Homelite 661413001

Lock Bolt

$

$

Not available
