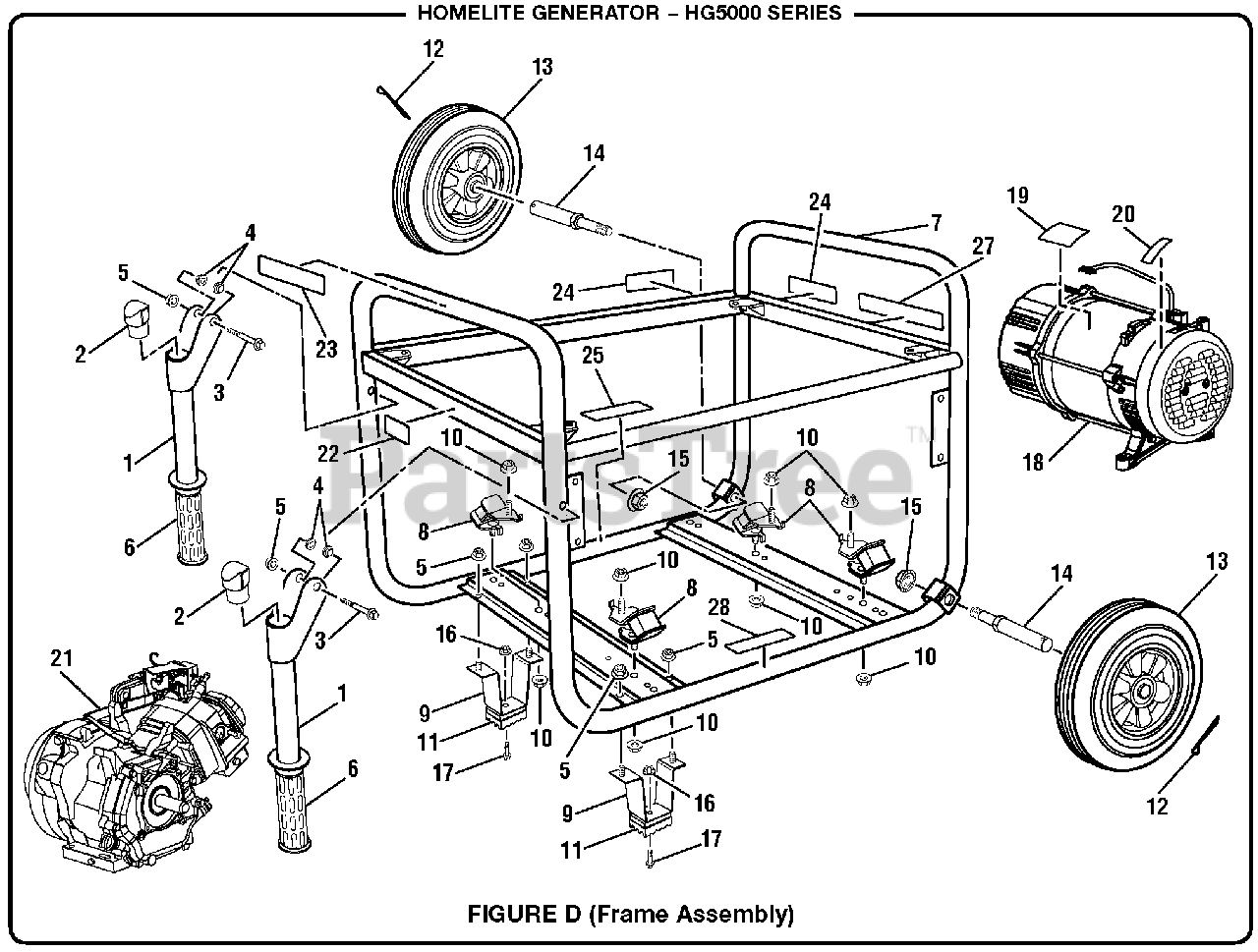

HG 5000 - Homelite 5,000 Watt Generator Figure D Parts Diagram

5,000 Watt Generator

Figure D Parts Diagram

  • Title

1

Homelite 310224016

Handle Bar Assembly

Note: (Incl. Key No. 6)

$

$

Not available

2

Homelite 570425001

Handle Bar Plug

$

$

Not available

3

Homelite 661505010

Bolt (M8 x 45 mm)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 638326003

Handle Bar Insert

$

$

Not available

5

Homelite 678355005

Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 570371004

Handle Grip

$

$

Not available

7

Homelite 310222013

Frame

$

$

Not available

8

Homelite 570356004

Motor Mount

$

$

Not available

9

Homelite 638706007

Foot, Bracket

$6.99

$

Usually ships in 3-7 days

0

10

Homelite 678457007

Nut (M10)

$

$

Not available

11

Homelite 570355003

Rubber Foot

$5.49

$

Usually ships in 3-7 days

0

12

Homelite 678522010

Cotter Pin (3 mm)

$

$

Not available

13

Homelite 310223004

Wheel (10 in.)

$

$

Not available

14

Homelite 620599012

Axle

$

$

Not available

15

Homelite 678833001

Nut (M12, Flange Hd.)

$

$

Not available

16

Homelite 678610004

Flange Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 660972008

Screw (M6 x 25)

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 310227019

Generator Head Assembly

Note: (Incl. Key Nos. 1-10)

$754.99

$

Usually ships in 3-7 days

0

19

Homelite 940678132

Data Label

$

$

Not available

20

Homelite 940513017

Ground Label

$

$

Not available

21

Homelite 099958001600

Engine

$

$

Not available

22

Homelite 941494003

Fuel Valve Label

$

$

Not available

23

Homelite 940654088

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 940680034

Hot Surface Warning Label
(Superseded to 940680027)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 940974007

Fire Danger Label

$

$

Not available

26

Homelite 940513001

Ground Warning Label

$10.99

$

Usually ships in 3-7 days

0

27

Homelite 940708007

Lubricant Label

$

$

Not available
