HG 5000 - Homelite 5,000 Watt Generator Figure B Parts Diagram

5,000 Watt Generator

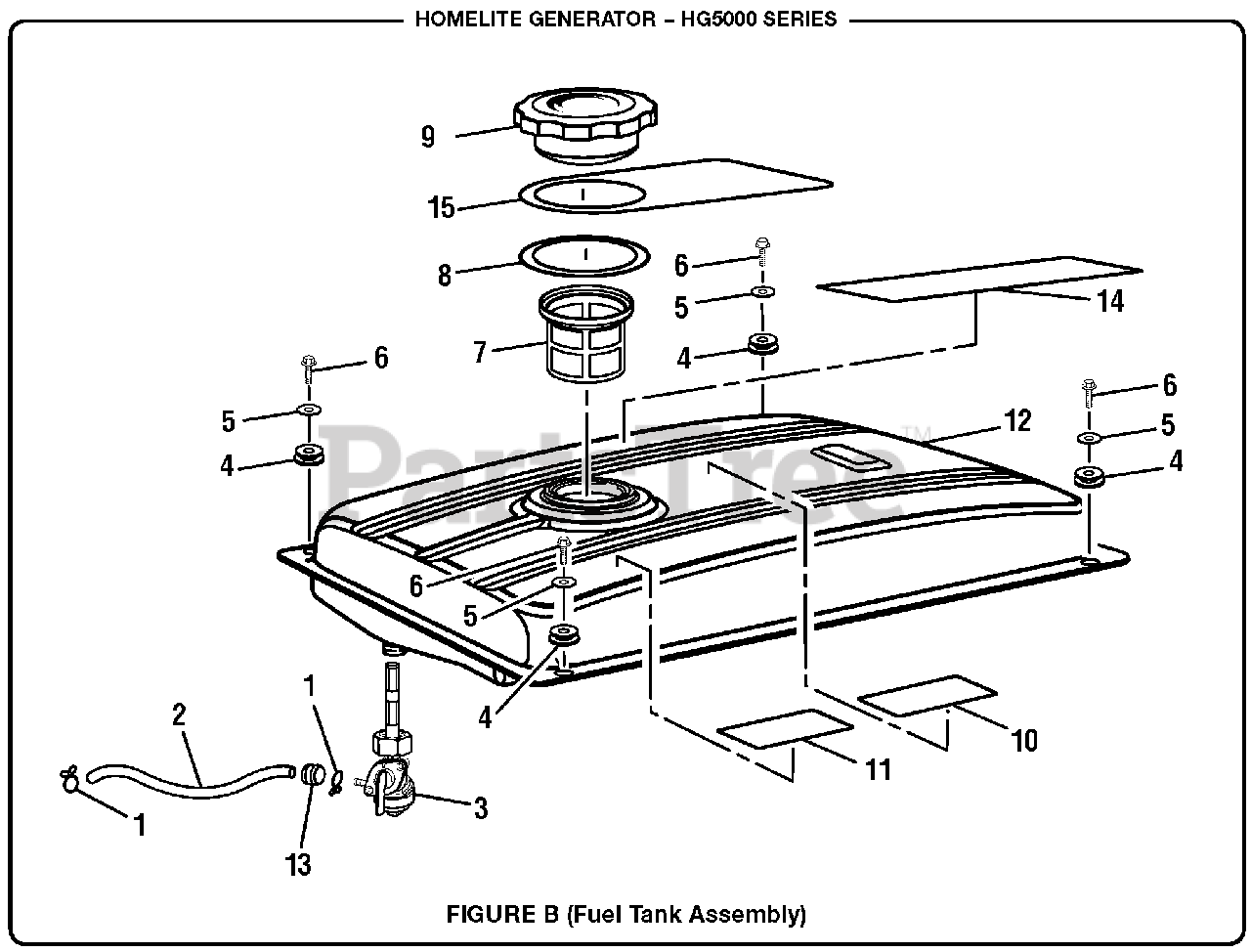

Figure B Parts Diagram

  • Title

Homelite 310711054

Fuel Tank Assembly

Note: (Incl. Key Nos. 1-14)

$

$

Not available

1

Homelite 678408008

Fuel Line Clamp

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 570358024

Fuel Line Hose

$6.99

$

Usually ships in 3-7 days

0

3

Homelite 519711003

Fuel Valve Assembly

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 310225001

Bushing w/Insert

$9.49

$

Usually ships in 3-7 days

0

5

Homelite 678370004

Washer (M6)

$

$

Not available

6

Homelite 660972008

Bolt (M6 x 25 mm, Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 519710003

Fuel Tank Screen

$

$

Not available

8

Homelite 570740007

Gasket (Fuel Cap)

$

$

Not available

9

Homelite 310720013

Fuel Cap Assembly

$11.99

$

Usually ships in 3-7 days

0

10

Homelite 940872001

E85 Label

$

$

Not available

11

Homelite 940515008

CPSC (English) Label

$

$

Not available

12

Homelite 580448006

Fuel Tank

$

$

Not available

13

Homelite 561383006

Grommet (Fuel Line)

$

$

Not available

14

Homelite 940707013

Danger Label

$

$

Not available

15

Homelite 961030005

Engine Warning Hang Tag

$

$

Not available

Homelite 120302003

Fastener Kit

Note: Not Shown (Incl. Key Nos. 4-6)

$

$

Not available

Homelite 987000953

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
