HG 2500 A (UT-03628-A) - Homelite Generator Generator Parts Diagram

Generator

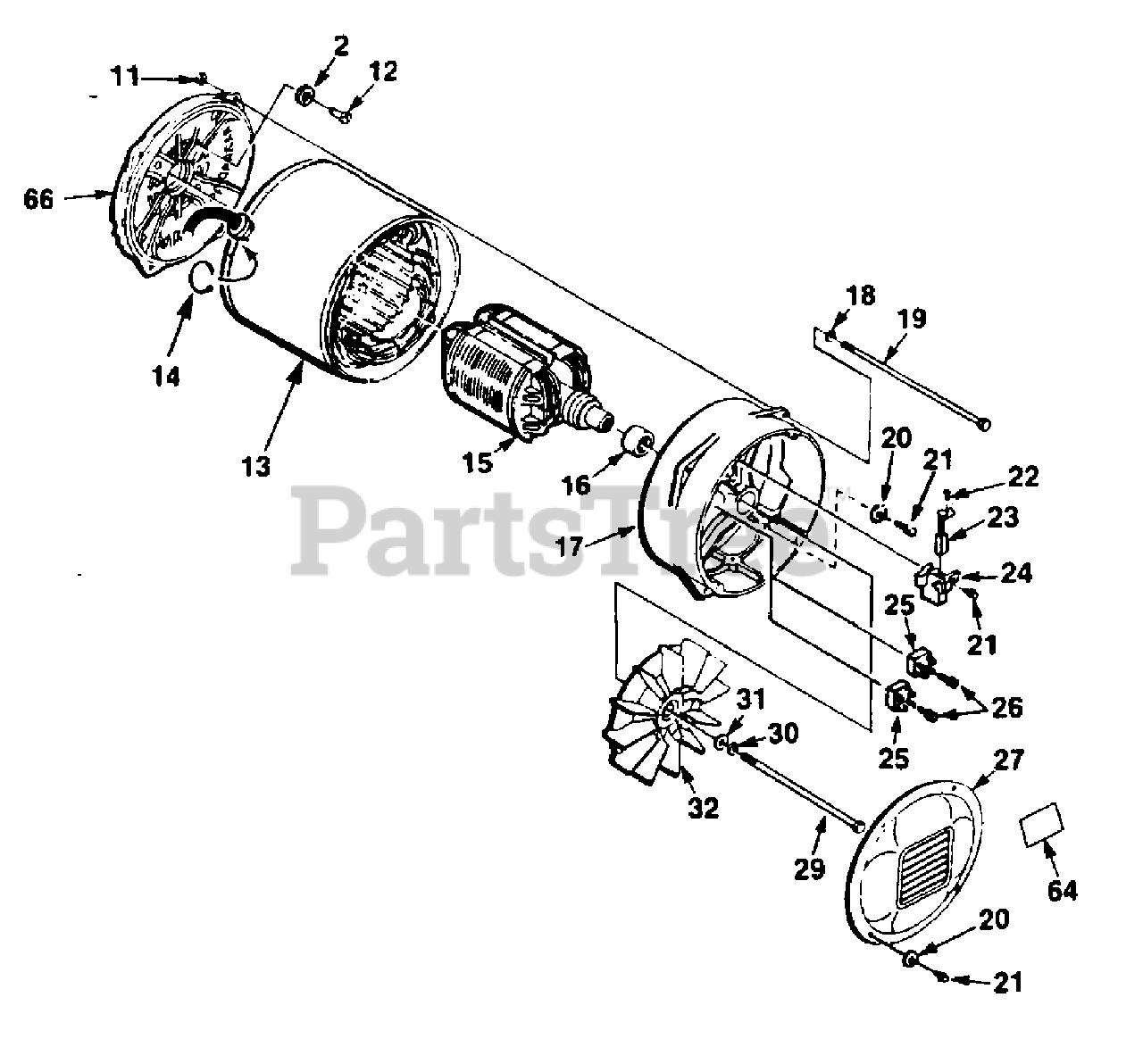

Generator Parts Diagram

  • Title

2

Homelite 80604

WASHER- Lock Int.
(Superseded to UP03390)

$

$

Not available

11

Homelite 81053

NUT-Hex 1/4-20

$

$

Not available

12

Homelite 80604

SCREW-Hex hd., 5/16-24 x 3/4"
(Superseded to UP03390)

$

$

Not available

13

Homelite A49793S

STATOR & SHELL
(Superseded to A49476AS)

$

$

Currently unavailable

14

Homelite 46840

TIE-Cable

$

$

Not available

15

Homelite A49475S

ROTOR

$

$

Not available

16

Homelite 53819

BEARING

$

$

Not available

17

Homelite 537592

BRUSH HEAD
(Superseded to UP07292)

$

$

Not available

18

Homelite 83070

WASHER-Lock

$

$

Not available

19

Homelite 49480

BOLT- Stator

$

$

Currently unavailable

20

Homelite 83022

WASHER-Lock Int. #8
(Superseded to UP03410)

$

$

Not available

21

Homelite 82474

SCREW- Thread forming

$

$

Not available

22

Homelite 80260

SCREW- Mach rd. hd. 8-32 x 3/8"

$

$

Not available

23

Homelite 53762

BRUSH

$

$

Not available

24

Homelite 53760

BRUSH HOLDER

$29.99

$

Usually ships in 3-7 days

0

25

Homelite 53818

RECTIFIER
(Superseded to 53818A)

$

$

Not available

26

Homelite 82205

SCREW- Hex taptite, 8-32 x 3/4"

$

$

Not available

27

Homelite 513941

COVER- Brush head

$

$

Currently unavailable

29

Homelite 4885204

BOLT- Rotor .312-24 x 6 1/2"

$

$

Currently unavailable

30

Homelite 83002

WASHER- Lock 5/16"
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

31

Homelite 84058

WASHER-Flat 5/16"

$

$

Not available

32

Homelite A53769

FAN

$

$

Currently unavailable

64

Homelite 49613

DECAL- Warning

$

$

Not available

66

Homelite 537526

END BELL

$

$

Not available
