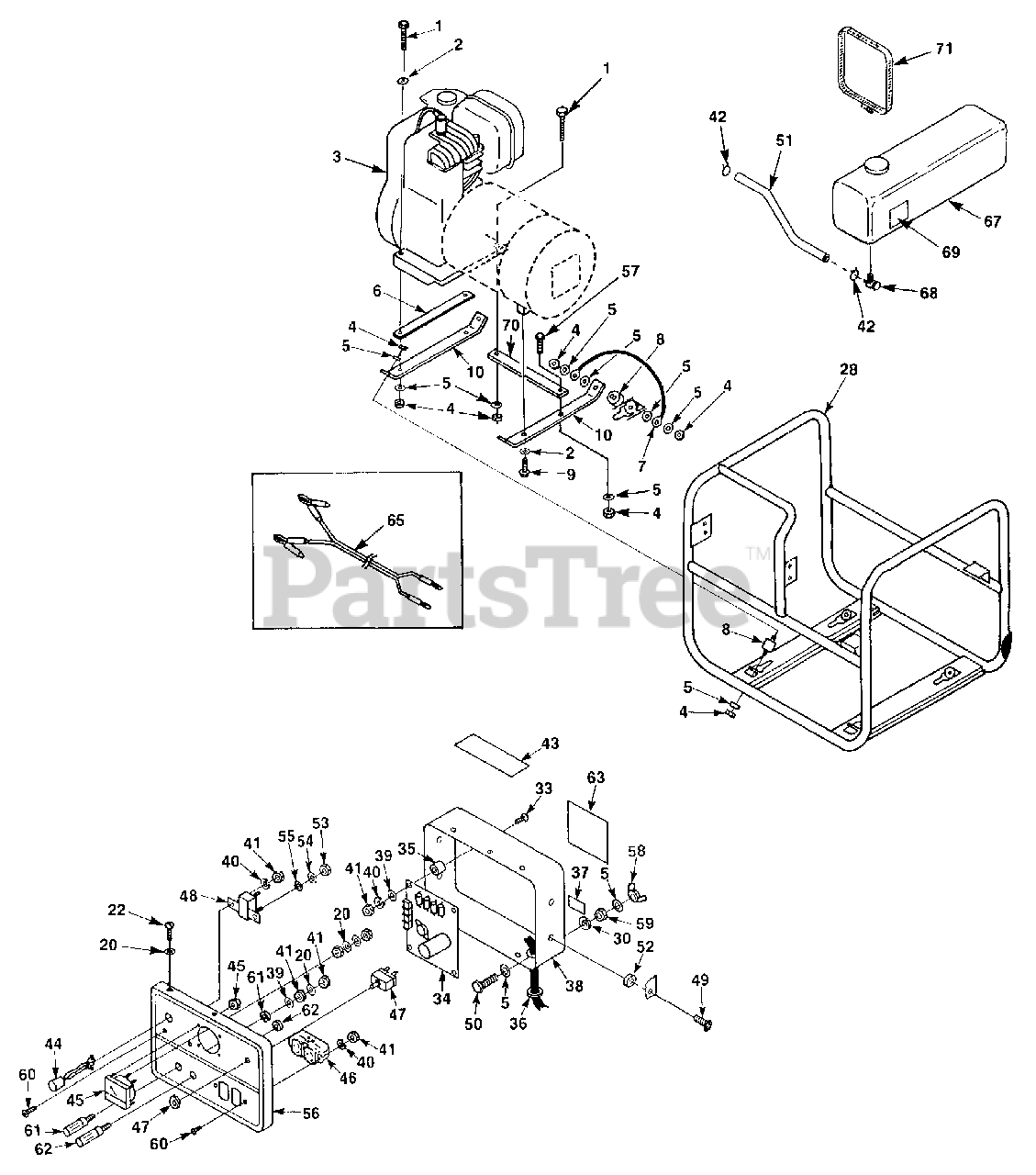

HG 2500 A (UT-03628-A) - Homelite Generator Control Box & Frame Parts Diagram

Generator

Control Box & Frame Parts Diagram

  • Title

1

Homelite 80288

SCREW- Hex Hd. 5/16-18 x 1 3/4"
(Superseded to UP03388)

$

$

Not available

2

Homelite 80604

WASHER- Lock Int.
(Superseded to UP03390)

$

$

Not available

3

Homelite A49790S

ENGINE

$

$

Currently unavailable

4

Homelite 81162

NUT- Hex 5/16-18

$

$

Not available

5

Homelite 83081

WASHER-lnt. 5/16"

$

$

Not available

6

Homelite 49466

SPACER

$

$

Not available

7

Homelite A49399

STRAP-Ground

$

$

Currently unavailable

8

Homelite 49367

ISOLATOR-Vibration
(Superseded to UP03483)

$

$

Not available

9

Homelite 82206

SCREW-Hex taptite 5/16-18 x 1"

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 49465

SUPPORT-Eng. & Gen.

$16.99

$

Usually ships in 3-7 days

0

20

Homelite 83022

WASHER-Lock Int. #8
(Superseded to UP03410)

$

$

Not available

22

Homelite 80260

SCREW-Mach rd. hd. 8-32 x 3/8"

$

$

Not available

28

Homelite A497961

ROLL CAGE

$

$

Currently unavailable

30

Homelite 83002

WASHER- Lock 5/16"
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

33

Homelite 80582

SCREW- #8- 32 x 5/8"

$

$

Not available

34

Homelite A48999C

VOLTAGE REGULATOR

$

$

Currently unavailable

35

Homelite 49498

SPACER- 1/4"

$8.99

$

Usually ships in 3-7 days

0

36

Homelite 49122

GROMMET

$

$

Not available

37

Homelite 49490

DECAL-Ground

$

$

Not available

38

Homelite A494681

CONTROL BOX

$

$

Currently unavailable

39

Homelite 84006

WASHER-Flat #8

$

$

Not available

40

Homelite 83060

WASHER-Lock #8
(Superseded to UP07171)

$

$

Not available

41

Homelite 81009

NUT- Hex 8-32

$

$

Not available

42

Homelite 49587

CLIP- Hose

$

$

Not available

43

Homelite 49495

DECAL- Warning

$4.49

$

Usually ships in 3-7 days

0

44

Homelite A49366A

PILOT LITE

$

$

Currently unavailable

45

Homelite 49472

VOLTMETER

$

$

Not available

46

Homelite 50991

RECEPTACLE- Duplex
(Superseded to UP03497)

$

$

Not available

47

Homelite 48952

BREAKER- Circuit (AC)

$

$

Not available

48

Homelite 49298

BREAKER- Circuit (DC)

$

$

Not available

49

Homelite 49748

SCREW

$

$

Not available

50

Homelite 80086

SCREW- Steel
(Superseded to 80088)

$

$

Not available

51

Homelite 4958615

FUEL HOSE

$

$

Currently unavailable

52

Homelite 49351

GROMMET- Isolator

$

$

Not available

53

Homelite 81264

NUT- Hex 10-32

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 84003

WASHER- Flat #10

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 83025

WASHER- Lock #10

$

$

Not available

56

Homelite 494701A

CONTROL PANEL

$

$

Not available

57

Homelite 80085

SCREW- Cap hex hd. 5/16-18 x 1"

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 81015

NUT-Wing 5/16-18

$

$

Not available

59

Homelite 81018

NUT- Hex 5/16-18

$

$

Not available

60

Homelite 80577

SCREW- Pan hd., 8-32 x 3/8"
(Superseded to UP03389)

$

$

Not available

61

Homelite 00533

POST- Binding (Black)

$

$

Not available

62

Homelite 00525

POST- Binding (Red)

$

$

Not available

63

Homelite 49598

DECAL- Caution

$

$

Not available

65

Homelite A49380

LEAD- D.C.

$

$

Currently unavailable

67

Homelite 497981

TANK- Fuel

$

$

Currently unavailable

68

Homelite 49005

VALVE- Fuel

$

$

Not available

69

Homelite 49340

DECAL- Fuel valve
(Superseded to UP07235)

$

$

Not available

70

Homelite 49797

DAMPNER- Vibration

$

$

Not available

71

Homelite 49799

CLAMP- Tank

$

$

Not available
