HG 1800 - Homelite 1,800 Watt Generator General Assembly Parts Diagram

1,800 Watt Generator

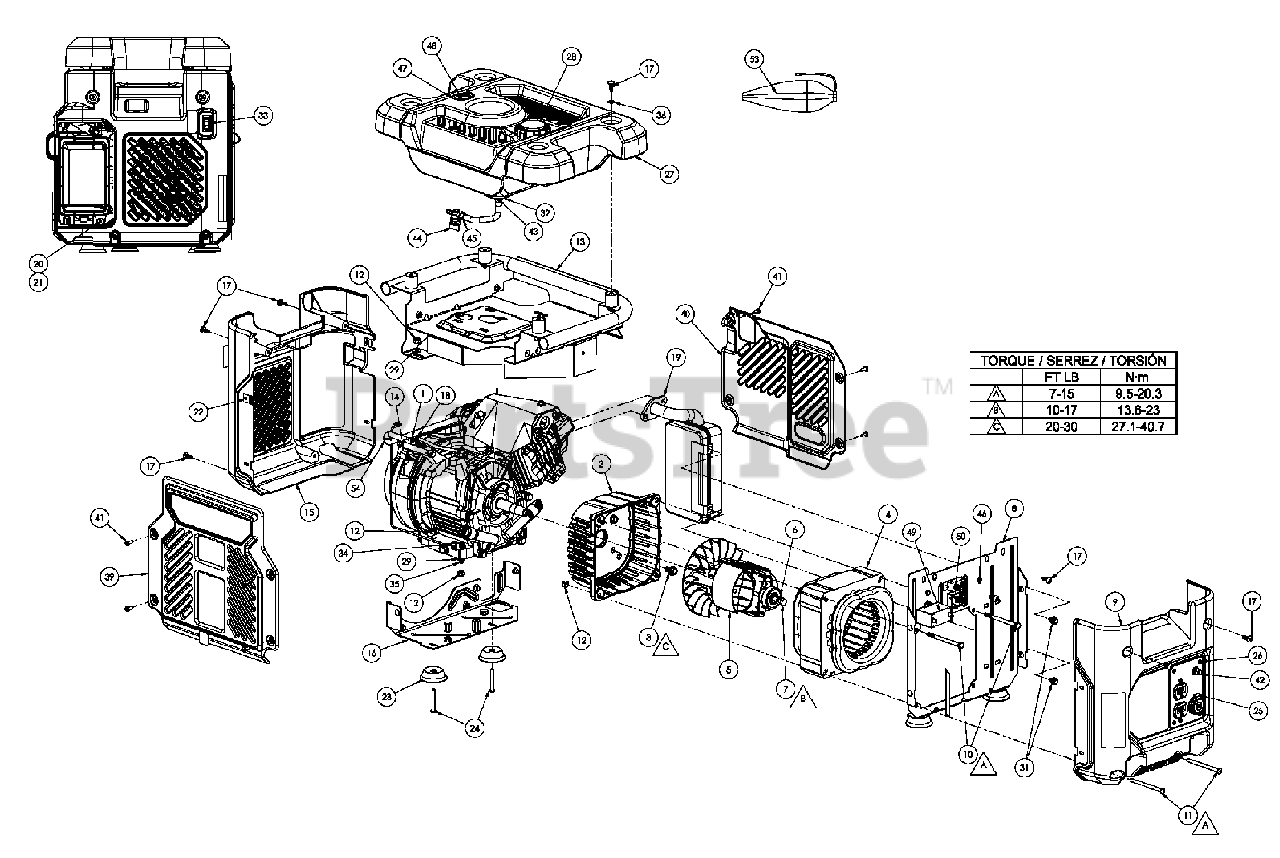

General Assembly Parts Diagram

  • Title

1

Engine Subaru

Note: Note A

$

$

Not available

2

Homelite 0064143

Engine Adapter

$

$

Not available

3

Homelite 0000901.01

Bolt Whz 5/16-24 x 5/8

$

$

Currently unavailable

4

Homelite 0063918

Stator

$

$

Not available

5

Homelite 0063919

Rotor

$

$

Not available

6

Washer, Lock 5/16

Note: Note B

$

$

Not available

7

Homelite 0041483

Bolt, Rotor 5/16-24 x 5-3/4

$

$

Not available

8

Homelite 0063911

Assy, Stator Bracket

$

$

Currently unavailable

9

Homelite 0063917

Endbell

$

$

Not available

10

Bolt, Hex HD 1/4-20 x 3.25

Note: Note B

$

$

Not available

11

Homelite 0064045

Screw, Torx T30 1/4-20 x 3.50

$

$

Currently unavailable

12

Homelite 0040832

Nut, Nyloc 1/4-20
(Superseded to 678016006)

$1.49

$

In Stock, only 2 left!

0

13

Homelite 0063912

Assembly, handle bracket

$

$

Currently unavailable

14

Washer, flat 1/4

Note: Note B

$

$

Not available

15

Homelite 0063916

Panel, recoil
(Superseded to 308660002)

$61.99

$

Usually ships in 3-7 days

0

16

Homelite 0063914

Bracket, recoil

$

$

Currently unavailable

17

Homelite 0062015

Screw, Torx T30 1/4-20 x .63
(Superseded to 661501004)

$

$

Not available

18

Homelite 0047937

Washer, fender

$

$

Currently unavailable

19

Homelite 0063922

Muffler

$

$

Currently unavailable

20

Homelite 0048586

Spacer

$

$

Currently unavailable

21

Homelite 0063490

Screw, Torx T30 1/4-20 x 1.25

$

$

Currently unavailable

22

Homelite 0049846

Clip
(Superseded to 678745002)

$

$

Not available

23

Homelite 0047774

Foot, Rubber 106-W
(Superseded to 308909004)

$

$

Not available

24

Homelite 0062007

Screw, Torx T30 1/4-20 x 1.50
(Superseded to 661501006)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 0064005

Panel, wired
(Superseded to 290403004)

$

$

Not available

26

Homelite 0062020

Screw #6-19 x .50
(Superseded to 661305001)

$

$

Not available

27

Assy, Fuel Tank

Note: Note C

$

$

Not available

28

Homelite 0064479

Cap, Fuel

$

$

Currently unavailable

29

Bolt, Hex 1/4-20 x 1-1/4

Note: Note B

$

$

Not available

31

Homelite 0050144

Bolt, Whz 1/4-20 x 3/8

$

$

Currently unavailable

32

Homelite 0062673

Fuel bushing

$

$

Not available

33

Homelite 0050298

Switch, rocker
(Superseded to 760504002)

$

$

Not available

34

Homelite 0008854

Lug, Ground
(Superseded to 638703001)

$2.49

$

Usually ships in 3-7 days

0

35

Bolt, Hex 1/4-20 x 1-1/2

Note: Note B

$

$

Not available

36

Homelite 0062093

Washer Nylon .25 ID
(Superseded to 519788001)

$

$

Not available

39

Homelite 0064002

Panel Side Cover

$

$

Currently unavailable

40

Homelite 0063913

Shield, Muffler
(Superseded to 638707001)

$

$

Not available

41

Homelite 0062021

Screw, Torx T20 #10-24 x .50
(Superseded to 661303001)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 0049071

Circuit Breaker, 20A
(Superseded to 780350001)

$

$

Not available

43

Homelite 0051367.01

Fuel Filter

$

$

Currently unavailable

44

Homelite 0049920

Fuel Shut Off, Inline

$

$

Not available

45

Homelite 0035857

Clamp, Hose 1/2"
(Superseded to 678408006)

$3.49

$

In Stock, only 1 left!

0

46

Homelite 0055955

Screw CRPH #10-24 x .50

$

$

Currently unavailable

47

Homelite 0062197

Bushing, breather

$2.49

$

In Stock, only 1 left!

0

48

Homelite 0061835

Assembly, duck bill fuel valve

$

$

Not available

49

Homelite 0051251

Capacitor

$

$

Not available

50

Homelite 0048677

Bridge Diode

$

$

Not available

53

Homelite 0061992

Assembly, Battery Cable
(Superseded to 290425001)

$

$

Not available

54

Homelite 0063921

Assembly, Fuel line

$

$

Currently unavailable

Operator's Manual

$

$

Not available

Risk of Fire Danger Label

$

$

Not available

Starting Label

$

$

Not available

Danger Hang Tag

$

$

Not available

Large Danger Label

$

$

Not available

Cord Warning Label

$

$

Not available

Logo Label (Front)

$

$

Not available

Hot Surface/Ground Warning Label

$

$

Not available

Indoor Use Danger Label

$

$

Not available

Logo Label (Side)

$

$

Not available
