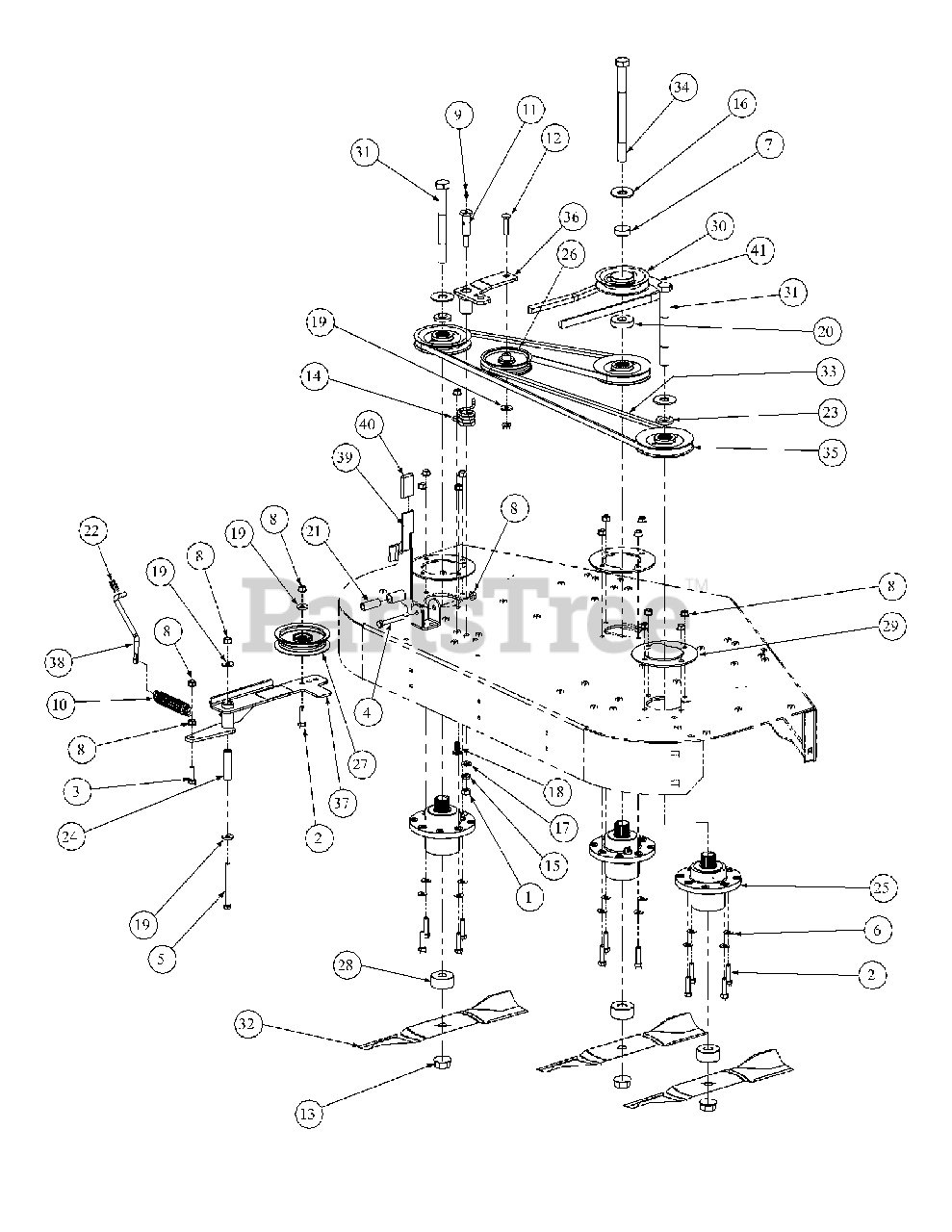

HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki Spindle Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3019

Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1/2
(Superseded to 710-06021)

$3.99

$

In Stock, Qty 13

0

3

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 3/4

$6.99

$

In Stock, Qty 8

0

4

Cub Cadet 00011861

Hex Cap Screw, 3/8-16 x 2-1/2
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

5

Cub Cadet 00011925

Hex Cap Screw, 3/8-16 x 4
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

6

Cub Cadet 00012158

Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

7

Cub Cadet 00021925

Caster Spacer

$16.99

$

In Stock, only 3 left!

0

8

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.0

$17.99

$

In Stock, only 4 left!

0

10

Cub Cadet 01002874

Extension Spring, .865 OD x 4.68

$11.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0560

Screw, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0

13

Cub Cadet 712-3078

Nut, 3/4-16, Hex Flange

$9.99

$

In Stock, Qty 20+

0

14

Cub Cadet 932-3009

Idler Torsion Spring

$24.99

$

In Stock, only 4 left!

0

15

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 736-3014

Washer, .781 ID x 2.0 OD x .105

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 936-3015

Washer, .469 ID x .875 OD x .105

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 7

0

19

Cub Cadet 736-3052

Washer, .406 ID x .10 OD x .105

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 01002564

Spacer, .76 ID x 2.0 OD x .477

$20.99

$

In Stock, only 2 left!

0

20

Cub Cadet 750-05184

Spacer, .76 ID x 2.0 OD x .790

$37.99

$

In Stock, only 4 left!

0

21

Cub Cadet 01002751

Spacer, .39 ID x .63 OD x 1.75

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 01003123

Spacer, .812 ID x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01003532P

Aluminum Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, Qty 12

0

26

Cub Cadet 02005077

Flat Pulley

$35.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02004447

Idler Pulley, 4.06 OD

$57.99

$

In Stock, Qty 20+

0

27

Cub Cadet 01010013

Idler Pulley, 5.25 OD

$66.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01004415

Spacer, .760 ID x 2.000 OD x 0.9

$40.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01004478-0637

Spindle Support Plate, Cast Alum.
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01005202

Pulley, 4.75 OD

$126.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01005213

Hex Cap Screw, 3/4-16 x 7.00
(Superseded to 710-05387)

$14.99

$

In Stock, only 1 left!

0

32

Cub Cadet 02005017

Blade, 17.0, Hi-Lift. 0.756 ID
(Superseded to 942-04417)

$28.99

$

In Stock, Qty 20+

0

33

Cub Cadet 01005374

Belt, A Section x 105.3
(Superseded to 01005374P)

$68.99

$

In Stock, Qty 13

0

34

Cub Cadet 01005388

Hex Cap Screw, 3/4-16 x 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, only 4 left!

0

35

Cub Cadet 01005616

Cast Pulley, 5.00 OD

$

$

Not available

36

Cub Cadet 01005737

Idler Arm Assembly, Mower Deck

$108.99

$

In Stock, only 2 left!

0

36

Cub Cadet 01005737

Idler Arm Assembly Casting, Mower Deck

$108.99

$

In Stock, only 2 left!

0

37

Cub Cadet 02000943

Idler Arm Assembly
(Superseded to 02001855)

$118.99

$

In Stock, only 3 left!

0

38

Cub Cadet 01008204

Spring Tension Rod

$

$

Not available

39

Cub Cadet 01008247-0637

Handle Tension Weldment

$81.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 01008270

Handle Tension Grip

$26.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01009211

Belt, B Section x 83.2
(Superseded to 01009211P)

$47.99

$

Usually ships in 3-6 days
