HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki Kawasaki Engine Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

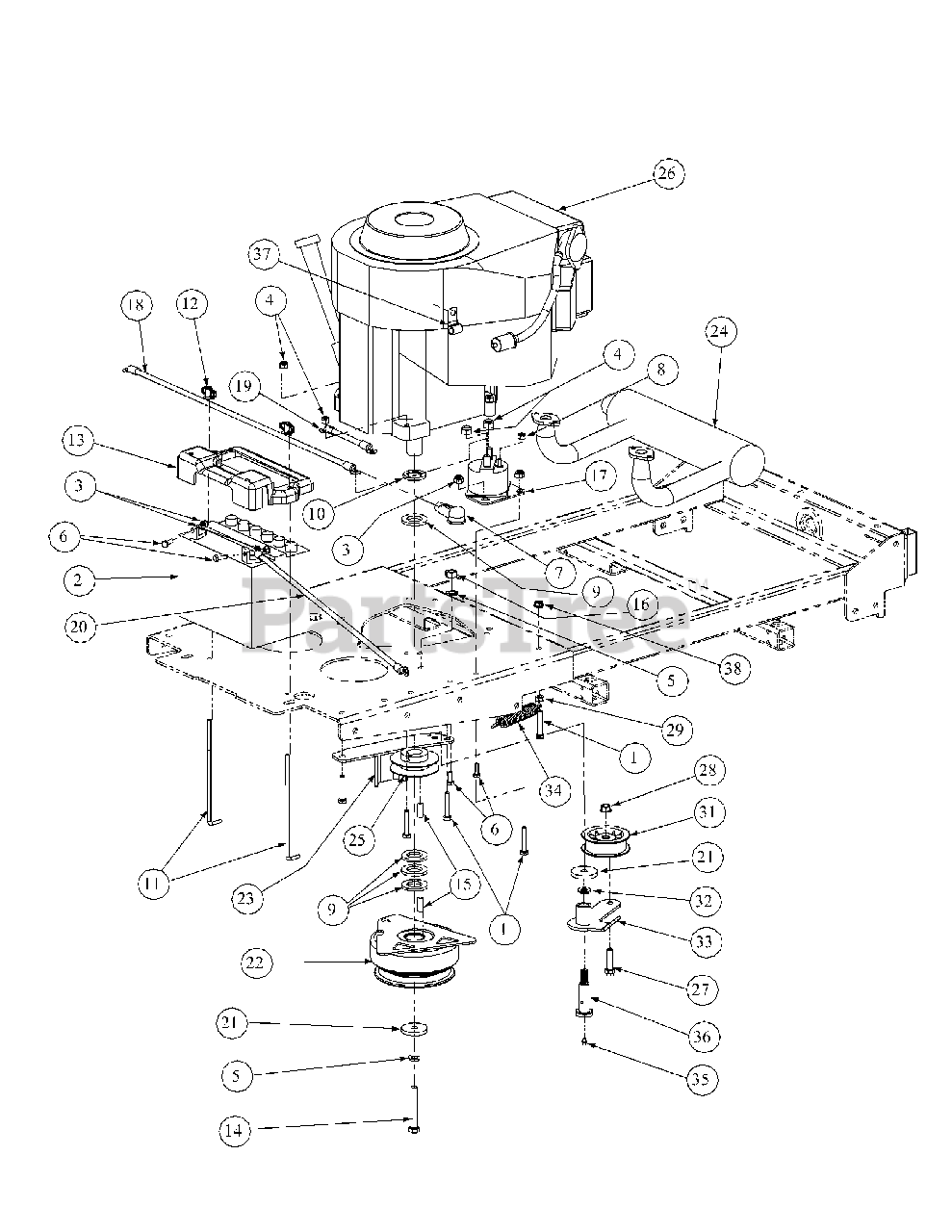

Kawasaki Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 00006129

Hex Head Cap Screw, 5/16-18 x 1.75

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 925-1707D

12V Battery

$

$

Not available

3

Cub Cadet 00012152

Nut, 1/4-20, Nylon Insert

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00012195

Lock Washer, 7/16 Zinc

$

$

Not available

6

Cub Cadet 00013131

Hex Head Cap Screw, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet 00013258

Rubber Battery Boot, 1.0 OD

$9.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00014608

Nut, 10-32, Nylon Insert
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

9

Cub Cadet 00023822

Special Washer
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

10

Cub Cadet 00073094

Engine Pulley Spacer

$14.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 911-0222A

Battery Rod

$11.99

$

In Stock, only 1 left!

0

12

Cub Cadet 912-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01000204

Large Battery Cover

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0510

Hex Head Cap Screw, 7/16-20 x 3.00

$11.99

$

In Stock, only 1 left!

0

15

Cub Cadet 00025344

Keystock, 1/4 x 1/4 x 0.875

$

$

Not available

16

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet 925-3001

Solenoid Switch

$58.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01002252

Battery Cable, 24.0", Red

$38.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01002253

Battery Cable, 5.0", Red

$

$

Not available

20

Cub Cadet 01004078

Battery Cable, 28.0", Black

$38.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-04131

Washer, 7/16 ID x 1.75 OD x .250

$15.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01008434P

Brake Clutch, 1.0 OD
(Superseded to 759-05064)

$514.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01008640

Clutch Retainer Assembly

$

$

Not available

24

Cub Cadet 01008867

Muffler

$358.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01009178

Cast Pulley, 3.25 OD x 1.0 ID

$

$

Not available

26

Cub Cadet KM-FH541V-BS31S

17HP Kawasaki Engine

$

$

Not available

27

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.99

$

In Stock, only 3 left!

0

28

Cub Cadet 00022560

Hex Flange Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 00012166

Nut, 5/16-18

$

$

Not available

31

Cub Cadet 02004558

Idler Pulley w/ Adaptor

$22.99

$

In Stock, only 2 left!

0

32

Cub Cadet 936-3015

Washer, .469 ID x .875 OD x .105

$4.49

$

In Stock, only 1 left!

0

33

Cub Cadet 01009911

Idler Arm Assembly

$

$

Not available

34

Cub Cadet 01000199

Extension Spring, 1.00 OD x 5.00

$17.99

$

In Stock, only 4 left!

0

35

Cub Cadet 737-04345

Grease Fitting

$4.99

$

In Stock, Qty 6

0

36

Cub Cadet 738-3108

Shoulder Screw
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

37

Cub Cadet 726-3008

Wire Clip

$4.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-3004A

Nut, 5/16-18, Hex Flange Lock

$3.99

$

In Stock, Qty 20+

0
