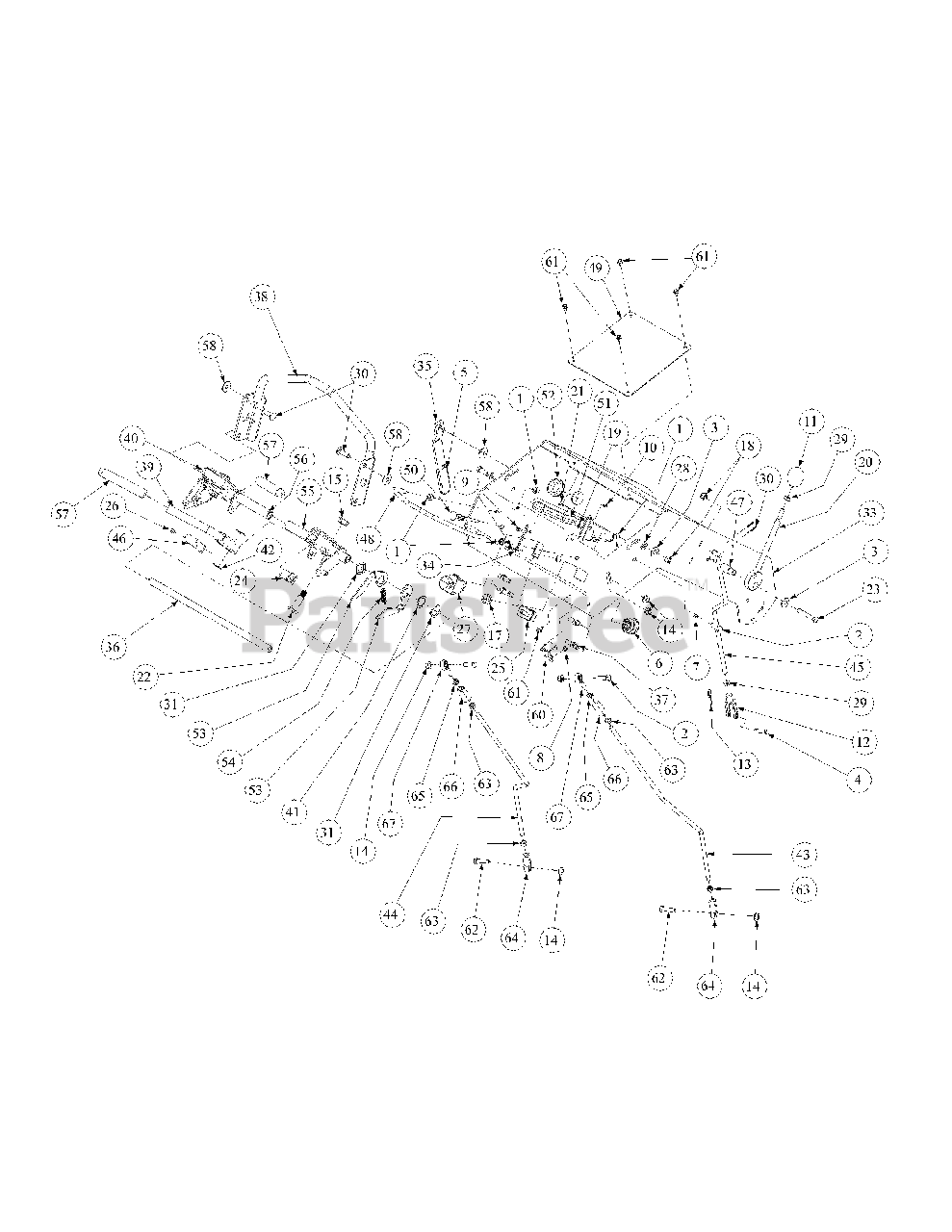

HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki Handle Assembly (April 2004 & After) Parts Diagram

Walk-Behind Mower, Kawasaki

Handle Assembly (April 2004 & After) Parts Diagram

  • Title

1

Cub Cadet 912-3017

Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00006144

Hex Cap Screw, 3/8-16 x 1.0

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00006168

Washer, 3/8 Zinc
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00009678

Clevis Pin, 3/8 x 1-1/8
(Superseded to 711-05735)

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00030884

Yellow Grip, .250 x 1 x 3.50

$8.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 8

0

7

Cub Cadet 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 00012152

Nut, 1/4-20, Nylon Insert

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 00013669

Screw, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00014608

Nut, 10-32, Nylon Insert
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

11

Cub Cadet 00021952

Shifter Knob

$17.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00021955

Female Yoke

$42.99

$

In Stock, only 1 left!

0

13

Cub Cadet 00021956

Hair Pin, 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

16

Cub Cadet 710-3034

Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

17

Cub Cadet 00032097

Nut, 5/8-32
(Superseded to 00032097P)

$

$

Not available

18

Cub Cadet 712-04065

Nylock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 00060056

Star Washer, 8-32

$6.99

$

In Stock, only 1 left!

0

20

Cub Cadet 00063173

Brake Lever Assembly

$

$

Not available

21

Cub Cadet 710-3217

Machine Screw, 8-32 x 0.375

$6.99

$

In Stock, Qty 7

0

22

Cub Cadet 01000922

Shoulder Screw, 58 x 1.48, 1/2-20

$

$

Not available

23

Cub Cadet 01001366

Hex Cap Screw, 3/8-16 x 2.25

$

$

Not available

24

Cub Cadet 01001717

Safety Switch, Normally Closed
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01001722P

Hour Meter

$

$

Not available

26

Cub Cadet 01001864

Screw, 10-24 x .500
(Superseded to 1767754)

$

$

Not available

27

Cub Cadet 01002111

Electric PTO Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 12

0

28

Cub Cadet 00005530

Nylon Washer, 3/8
(Superseded to 736-04070)

$

$

Not available

29

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Long
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 936-0526

Wave Washer, 1.38 OD x .88 ID x .029

$6.99

$

In Stock, only 1 left!

0

32

Cub Cadet 01001811

Hour Meter Harness
(Superseded to 929-04195)

$8.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 01008714

Handle Weldment

$

$

Not available

34

Cub Cadet 00016771

Washer, 3/16 Zinc

$

$

Not available

35

Cub Cadet 01009773

Handle Lever Weldment

$

$

Not available

36

Cub Cadet 01008749

Upper Control Rod

$

$

Not available

37

Cub Cadet 01008779

Adjustable Center Stud, 3/8

$

$

Not available

38

Cub Cadet 01008781

Bar Cruz Weldment

$

$

Not available

39

Cub Cadet 01008785

Right Hand Handle Control Weldment

$

$

Not available

40

Cub Cadet 01008787

Left Hand Handle Control Weldment

$

$

Not available

41

Cub Cadet 01008797

Spacer, .91 x 1.250 x .100

$

$

Not available

42

Cub Cadet 01010110

Wave Washer, .688 ID x 1.16 OD

$

$

Not available

43

Cub Cadet 01010082

Long Connector Rod, Right

$

$

Not available

44

Cub Cadet 01010083

Long Connector Rod, Left

$

$

Not available

45

Cub Cadet 01008946

Long Brake Rod

$

$

Not available

46

Cub Cadet 01009209

Spring Retainer

$

$

Not available

47

Cub Cadet 01009241

Brake Lever Spacer

$

$

Not available

48

Cub Cadet 01009247

Handle Mount

$

$

Not available

49

Cub Cadet 01009249

Cover Control PLate

$

$

Not available

50

Cub Cadet 01009345

Choke Cable

$

$

Not available

51

Cub Cadet 01009346

Throttle Cable
(Superseded to 01009346P)

$

$

Not available

52

Cub Cadet 01009387

Rubber Grommet, 1.0 ID x 1.75 OD x .125

$

$

Not available

53

Cub Cadet 01009466

Retainer Arm

$

$

Not available

54

Cub Cadet 01009467

Extension Spring, .057 Dia x .477 OD

$

$

Not available

55

Cub Cadet 01009476

Right Hand Pivot Control Handle Assembly

$101.99

$

In Stock, only 1 left!

0

56

Cub Cadet 01009477

Left Hand Pivot Control Handle Assembly

$

$

Not available

57

Cub Cadet 01009214

Grip, .75 ID

$

$

Not available

58

Cub Cadet 01000942

Bell Washer, .396 x 1.14 x .095

$

$

Not available

59

Cub Cadet 01009706

Wire Harness (not shown)

$

$

Not available

60

Cub Cadet 01002251

Relay

$57.99

$

In Stock, only 2 left!

0

61

Cub Cadet 710-0599

Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 9

0

63

Cub Cadet 912-3001

Jam Nut, 3/8-24

$6.99

$

In Stock, Qty 18

0

64

Cub Cadet 723-04080

B/Joint, 3/8-24, Right Hand Female

$41.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 01002986

Jam Nut, 3/8-24, LH Thread

$6.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 01007734

Turnbuckle

$31.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 01008367

B/Joint, 3/8-24, Left Hand Female

$46.99

$

Usually ships in 3-6 days

0
