HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki FH541V-AS25 Valve & Camshaft Parts Diagram

Walk-Behind Mower, Kawasaki

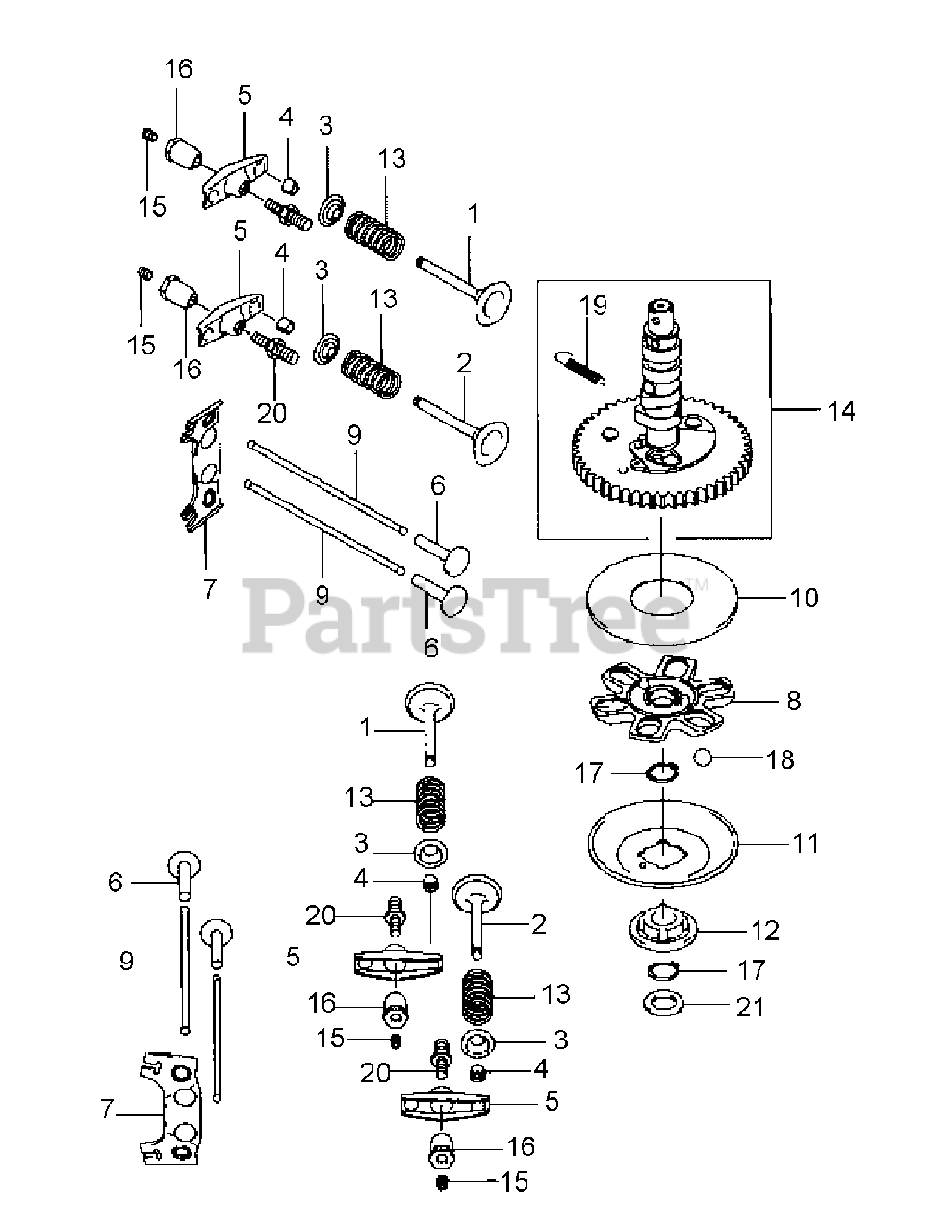

FH541V-AS25 Valve & Camshaft Parts Diagram

  • Title

1

Cub Cadet KM-12004-7003

VALVE-INTAKE
(Superseded to KM-12004-7001)

$16.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-12005-7003

VALVE-EXHAUST
(Superseded to KM-12005-7001)

$29.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-12009-7001

RETAINER-VALVE SPRING

$2.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-12011-2056

COLLET

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-12016-7008

ARM-ROCKER

$7.99

$

In Stock, Qty 12

0

6

Cub Cadet KM-12032-7001

TAPPET

$8.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-13070-7001

GUIDE

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet KM-13070-7004

GUIDE

$5.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-13116-2057

ROD-PUSH

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-13271-7007

PLATE

$5.49

$

In Stock, Qty 10

0

11

Cub Cadet KM-13271-7021

PLATE, GOVERNOR

$5.49

$

In Stock, Qty 18

0

12

Cub Cadet KM-42036-7010

SLEEVE

$5.99

$

In Stock, Qty 18

0

13

Cub Cadet KM-49078-7001

SPRING-ENGINE VALVE

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-49118-7004

CAMSHAFT-COMP

$92.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-92009-2341

SCREW

$2.49

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92015-2253

NUT

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92033-7001

RING-SNAP
(Superseded to KM-92033-0778)

$0.99

$

In Stock, Qty 5

0

18

Cub Cadet KM-92140-7005

BALL
(Superseded to KM-92140-0026)

$2.49

$

Usually ships in 3-6 days

0

19

Cub Cadet KM-92145-7001

SPRING
(Superseded to KM-92145-1653)

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet KM-92153-7019

BOLT

$2.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-92200-7001

WASHER

$1.99

$

In Stock, Qty 11

0
