HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki FH541V-AS25 Cooling Equipment Parts Diagram

Walk-Behind Mower, Kawasaki

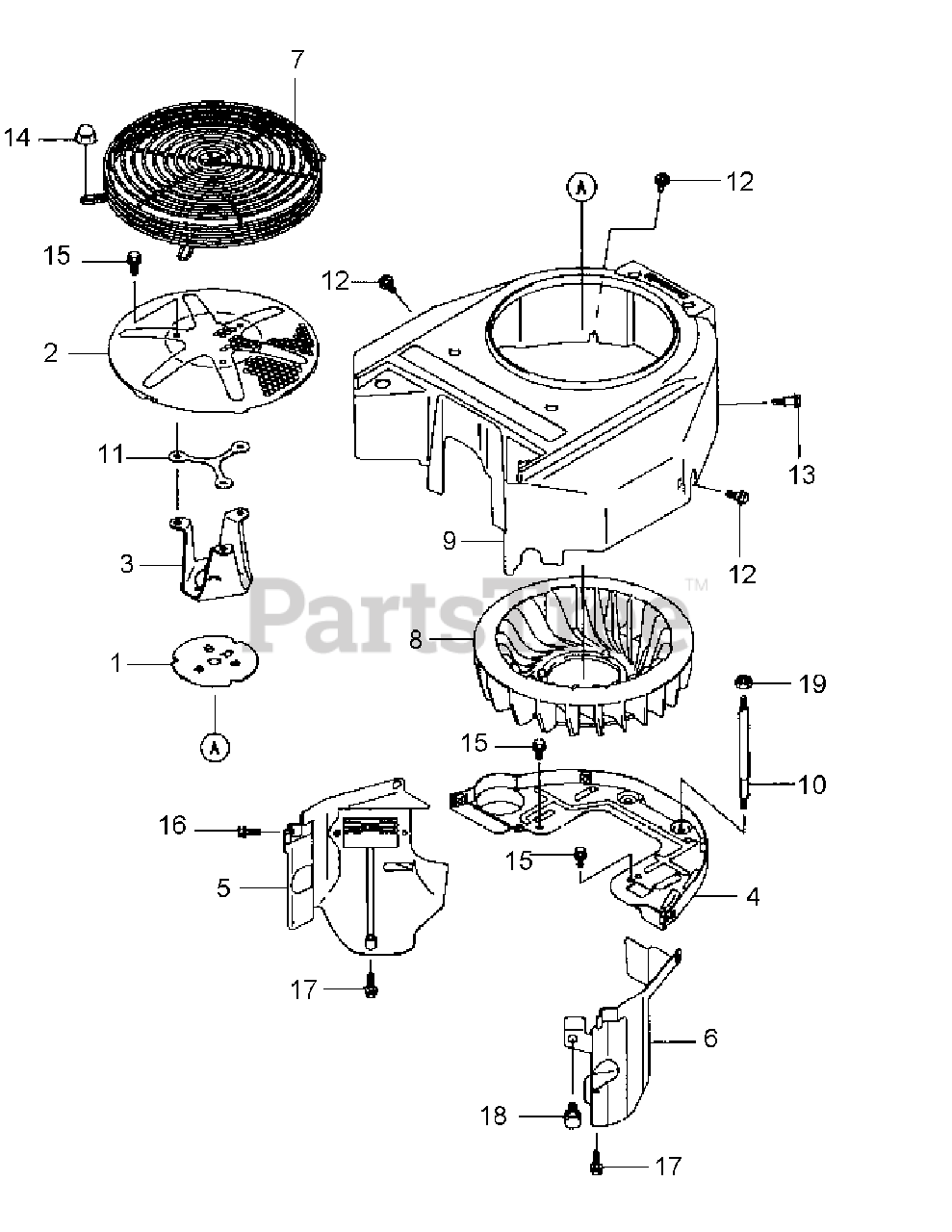

FH541V-AS25 Cooling Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13270-7007

PLATE

$5.99

$

In Stock, Qty 15

0

2

Cub Cadet KM-14037-70209H

SCREEN

$33.99

$

In Stock, only 1 left!

0

3

Cub Cadet KM-23062-7010

BRACKET

$10.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-49089-7032

ENGINE SHROUD

$32.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-49089-7042

ENGINE SHROUD

$32.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-49089-7043

ENGINE SHROUD

$33.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-55020-7004

GUARD

$32.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-59041-0007

FAN
(Superseded to KM-59041-0020)

$19.99

$

In Stock, only 3 left!

0

9

Cub Cadet KM-59066-7017

FAN HOUSING
(Superseded to KM-59066-7037)

$

$

Not available

10

Cub Cadet KM-92004-7025

STUD

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92026-7007

SPACER

Note: (AR)

$5.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92153-7007

BOLT

$4.49

$

In Stock, Qty 18

0

13

Cub Cadet KM-92153-7008

BOLT
(Superseded to KM-92154-2823)

$0.99

$

In Stock, Qty 8

0

14

Cub Cadet KM-92210-0003

NUT

$0.99

$

In Stock, Qty 7

0

15

Cub Cadet KM-130BA0612

FLANGED BOLT

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-130BA0616

FLANGED BOLT

$1.49

$

In Stock, only 2 left!

0

17

Cub Cadet KM-130BA0625

FLANGED BOLT

$1.49

$

In Stock, Qty 20+

0

18

Cub Cadet KM-130BA0816

FLANGED BOLT

$1.99

$

In Stock, only 4 left!

0

19

Cub Cadet KM-311BA0600

HEX NUT

$2.49

$

In Stock, Qty 7

0
