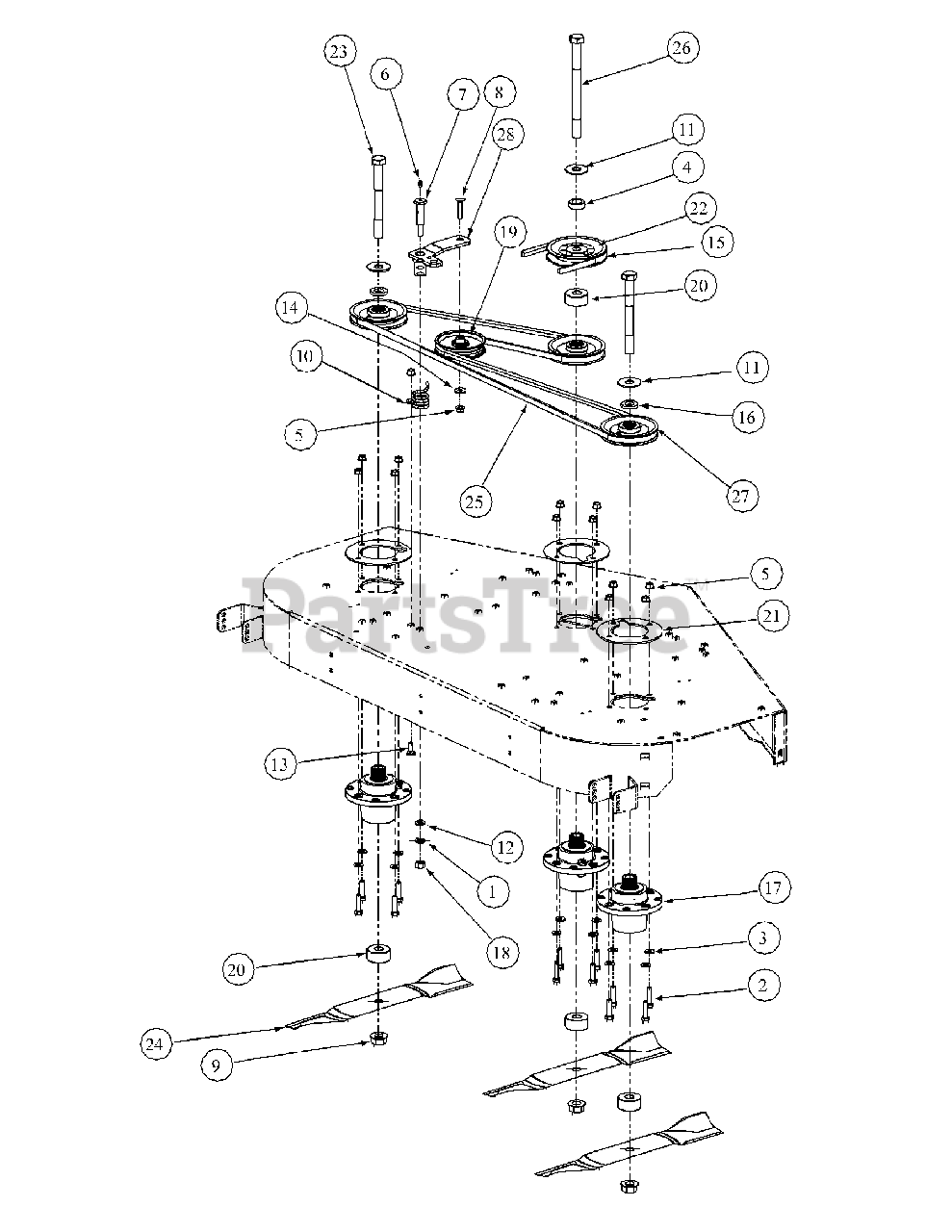

HF 1954 (55AF3DAW150) - Cub Cadet Walk-Behind Mower, Kawasaki Fabricated Spindle Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

Fabricated Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 5

0

2

Cub Cadet 00011438

Hex Head Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.99

$

In Stock, only 3 left!

0

3

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 00021925

Spacer

$16.99

$

In Stock, only 3 left!

0

5

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 12

0

9

Cub Cadet 712-3078

Flange Hex Nut,3/4-16

$9.99

$

In Stock, Qty 20+

0

10

Cub Cadet 932-3009

Idler Torsion Spring

$24.99

$

In Stock, only 4 left!

0

11

Cub Cadet 736-3014

Flat Washer, .781 ID, 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 936-3015

Flat Washer, .469 ID, .875 OD, .105

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

14

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 01001710

Belt, B Section x 65.04
(Superseded to 01001710P)

$92.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01003123

Spacer, .812 ID x .268 Lg
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

17

Cub Cadet 01003532P

Aluminum Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, only 1 left!

0

18

Cub Cadet 912-3066

Hex Nut, 1/2-20

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

20

Cub Cadet 01004415

Spacer, .760 ID x 2.00 OD x 0.9

$40.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01004478-0637

Aluminum Spindle Support Plate
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01005201

Cast Pulley, 5.25 OD

$130.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01005213

Hex Cap Screw, 3/4-16, 7.00
(Superseded to 710-05387)

$14.99

$

In Stock, only 2 left!

0

24

Cub Cadet 02005018

Hi-Lift Blade, 19.0,.756 ID
(Superseded to 942-04416)

$28.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01005375

Belt, A Section x 114.3
(Superseded to 01005375P)

$60.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, Qty 5

0

27

Cub Cadet 01005616

Cast Pulley, 4.65 OD

$

$

Not available

28

Cub Cadet 01005737

Idler Arm Assembly Bearing

$108.99

$

In Stock, only 2 left!

0
