HF 1954 (55AF3DAW150) - Cub Cadet Walk-Behind Mower, Kawasaki Fabricated Frame And Axle Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

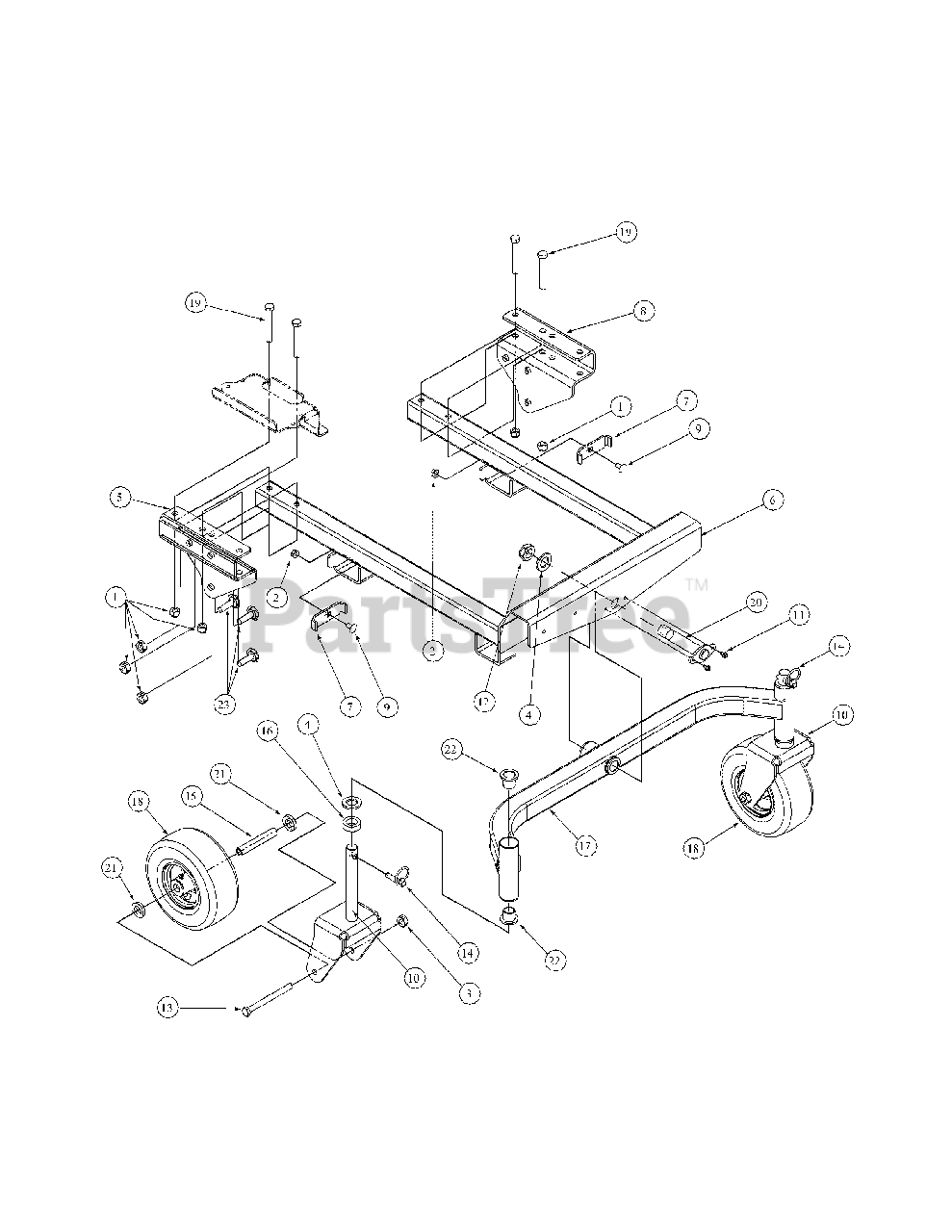

Fabricated Frame And Axle Assembly Parts Diagram

  • Title
1

Cub Cadet 00012428

Hex Jam Nut 1/2-13

$6.99

$

In Stock, only 2 left!

0

2

Cub Cadet 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

4

Cub Cadet 00023822

Washer Special
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

5

Cub Cadet 01006385

Support Brack Frame Right Hand

$

$

Not available

6

Cub Cadet 01006387

Front Frame Assembly

$

$

Not available

7

Cub Cadet 01006136

Plate Wear

$

$

Not available

8

Cub Cadet 01006386

Bracket Support Frame, Left Hand

$

$

Not available

9

Cub Cadet 710-3178

Carrige Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01006389

Caster Assembly

$

$

Not available

11

Cub Cadet 710-0751

Screw, 1/4-20, 0.62,

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01000678

Nut, Jam, 1.0-14, Insert Lock
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

13

Cub Cadet 01002611

HHCS, 1/2-20, 7.00"

$

$

Not available

14

Cub Cadet 711-1105

Pin, Klik, 1.75 LG

$11.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01003914

Spacer Wheel

$

$

Not available

16

Cub Cadet 00023821

Spacer, 1.015 ID x 1.62 OD x .5

$24.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01006391

Front Axle Assembly

$

$

Not available

18

Cub Cadet 01000228

Wheel Assembly 11.0 x4.00 -5

$

$

Not available

19

Cub Cadet 01000226

Hex Cap Screw, 1/2-13 x 3.5

$

$

Not available

20

Cub Cadet 01006309

Pin Assembly, Plated

$30.99

$

In Stock, only 1 left!

0

21

Cub Cadet 01003123

Spacer, .812 ID x .268 Lg
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

22

Cub Cadet 00023793

Flange Bearing, 1.013 ID

$15.99

$

In Stock, only 3 left!

0

23

Cub Cadet 01000517

Carriage Bolt, 1/2-13 x 1-1/4
(Superseded to 710-05375)

$6.49

$

Usually ships in 3-6 days

0
