HF 1748 (55AF3D4V150) - Cub Cadet Walk-Behind Mower, Kawasaki Hydro Brake Assembly WT Parts Diagram

Walk-Behind Mower, Kawasaki

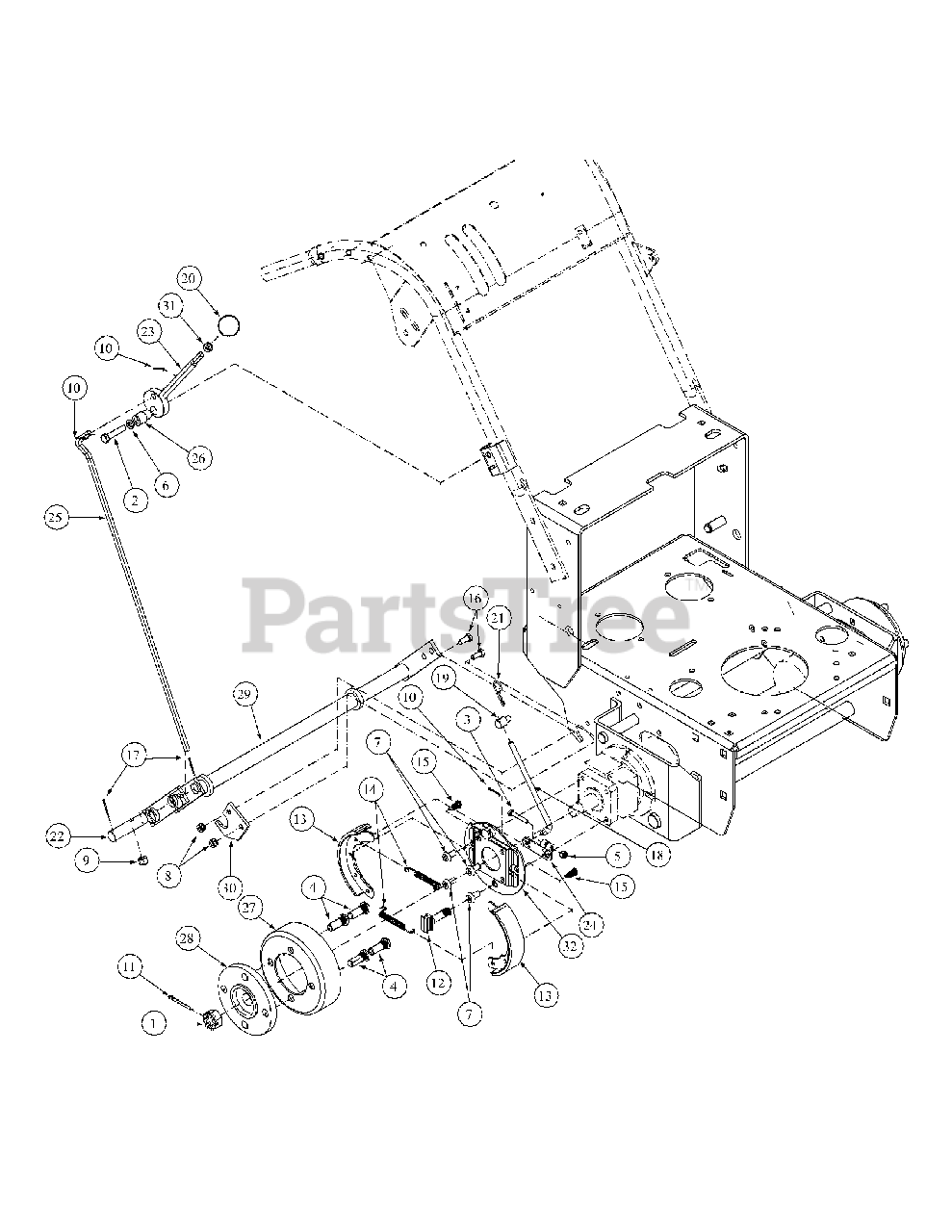

Hydro Brake Assembly WT Parts Diagram

  • Title
1

Cub Cadet 00003067

Nut, Castle, 3/4-16

$

$

Not available

2

Cub Cadet 00008495

Capscrew, 3/8-16 x 1" Grade 5 Zinc

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00011446

Cap Screw, 1/4-20 x 1.50, Grade 5

$

$

Not available

4

Cub Cadet 00012081

Bolt, Wheel, 1/2-20 x 1-3/8

$

$

Not available

5

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20 Grade A

$4.49

$

In Stock, only 1 left!

0

6

Cub Cadet 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 00012161

Capscrew, Socket Button Hd., 3/8-16 x 3/4 Zinc

$

$

Not available

8

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet 712-04065

Nut, Nylon Insert, 3/8-16 Grade A

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 00012204

Cotter Pin, 3/32 x 3/4, Zinc

$

$

Not available

11

Cub Cadet 00012380

Cotter Pin, 5/32 x 1-1/2 Zinc

$

$

Not available

12

Cub Cadet 00012522

Brake Cam, Actuating

$

$

Not available

13

Cub Cadet 00012553

Brake Shoe w/Lining, 6 x 1-1/4

$50.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00012554

Brake Spring, Tension

$

$

Not available

15

Cub Cadet 00012555

Brake Spring, Anti-Vibration

$

$

Not available

16

Cub Cadet 00013406

Cap Screw, 5/16-18 x 3/4, Grade 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 00014149

Cotter Pin, 3/32 x 1, Zinc

$

$

Not available

18

Cub Cadet 00021930

Brake Rod

$

$

Not available

19

Cub Cadet 00021943

Swivel Joint

$20.99

$

In Stock, only 1 left!

0

20

Cub Cadet 00021952

Knob, Red, Shift w/Insert

$17.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 00021956

Hair Pin, 3/8"-1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 00035477

Joint, Brake Pull

$

$

Not available

23

Cub Cadet 00063173

Lever Assembly, Brake

$

$

Not available

24

Cub Cadet 00063679

Brake Clamp, Control Assembly, Hydro

$

$

Not available

25

Cub Cadet 00063727

Rod, Long Brake, Hydro WB

$

$

Not available

26

Cub Cadet 00063612

Pivot Spacer, Hydro WB

$

$

Not available

27

$

$

Not available

28

Cub Cadet 01001384-0637

Hub, Wheel Motor

$170.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01006558

Brake Pivot Shaft Assembly

$

$

Not available

30

Cub Cadet 01002292-0637

Pivot Mount, Brake

$

$

Not available

31

Cub Cadet 01002511

Nut, 3/8-16, Jam, Grade 2

$5.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 01003017-0637

Brake Backing Plate

$

$

Not available
