HF 1748 (55AF3D4V150) - Cub Cadet Walk-Behind Mower, Kawasaki Fabricated Frame And Axle Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

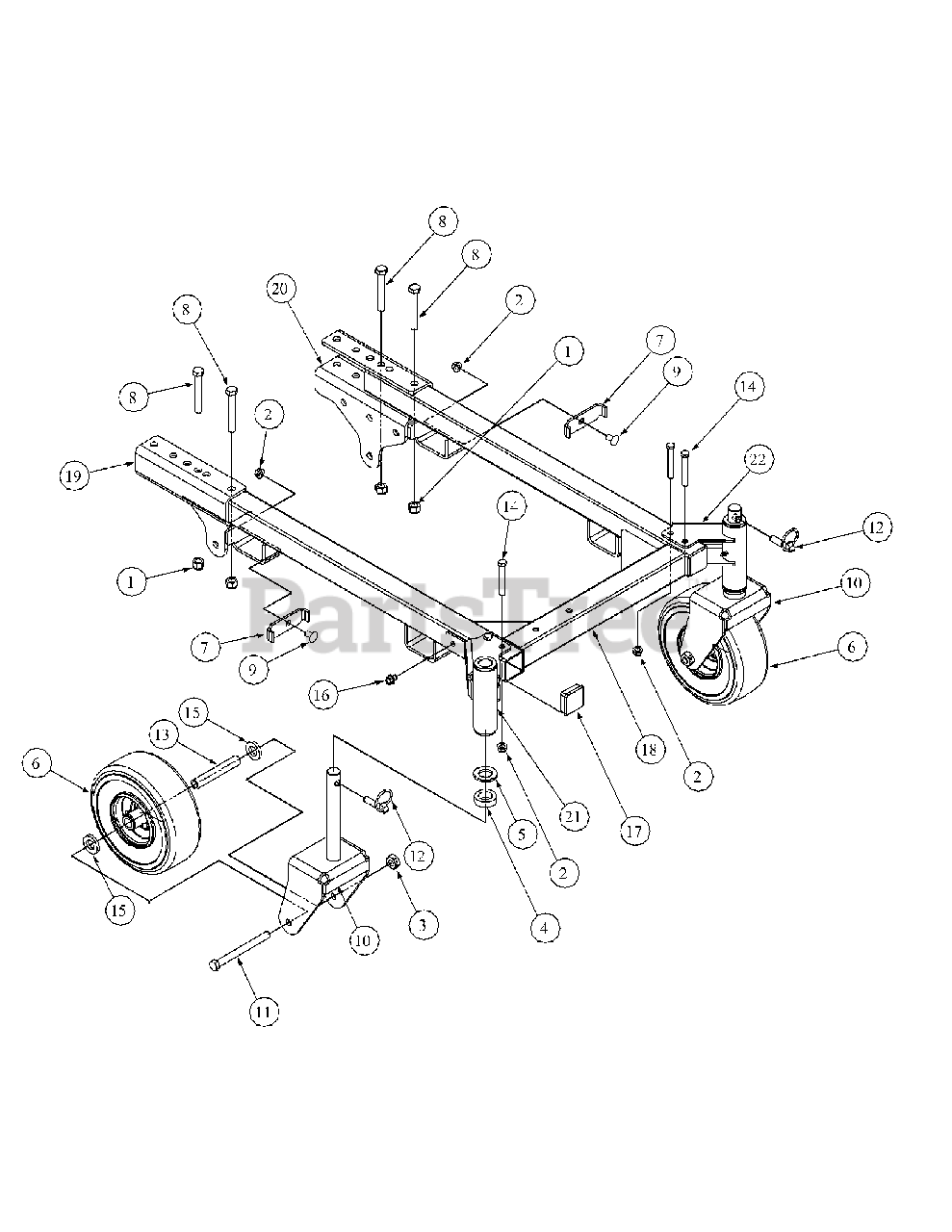

Fabricated Frame And Axle Assembly Parts Diagram

  • Title

1

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

2

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00023287

Center Lock Nut, 1/2-20
(Superseded to 712-0239)

$

$

Not available

4

Cub Cadet 00023821

Spacer, 1.015 ID x 1.62 OD x .5

$24.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00023822

Special Washer
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

6

Cub Cadet 02000192

Wheel Assembly, 9.0 x 3.50-4

$136.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01006136

Wear Plate

$

$

Not available

8

Cub Cadet 01000226

Capscrew, 1/2-13 x 3.5

$

$

Not available

9

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01006137

Caster Assembly

$

$

Not available

11

Cub Cadet 710-0506

Hex Cap Screw, 1/2-20 x 5.50

$10.99

$

In Stock, only 2 left!

0

12

Cub Cadet 711-1105

Klik Pin, 1.75 Lg

$11.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01000749

Wheel Spacer

$40.99

$

In Stock, only 1 left!

0

14

Cub Cadet 710-3022

Hex Cap Screw, 3/8-16, 2.75

$4.99

$

In Stock, Qty 7

0

15

Cub Cadet 01003123

Spacer, .812 ID x .268 Lg
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16, .5
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

17

Cub Cadet 01005160

Square Tube Plug Fitting

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01006138

Fabricated Deck Frame Assembly

$

$

Not available

19

Cub Cadet 01006385

Right Hand Frame Bracket Support

$

$

Not available

20

Cub Cadet 01006386

Left Hand Frame Bracket Support

$

$

Not available

21

Cub Cadet 01006152

RH Caster Mount Bracket Assembly

$

$

Not available

22

Cub Cadet 01006153

LH Caster Mount Bracket Assembly

$

$

Not available
