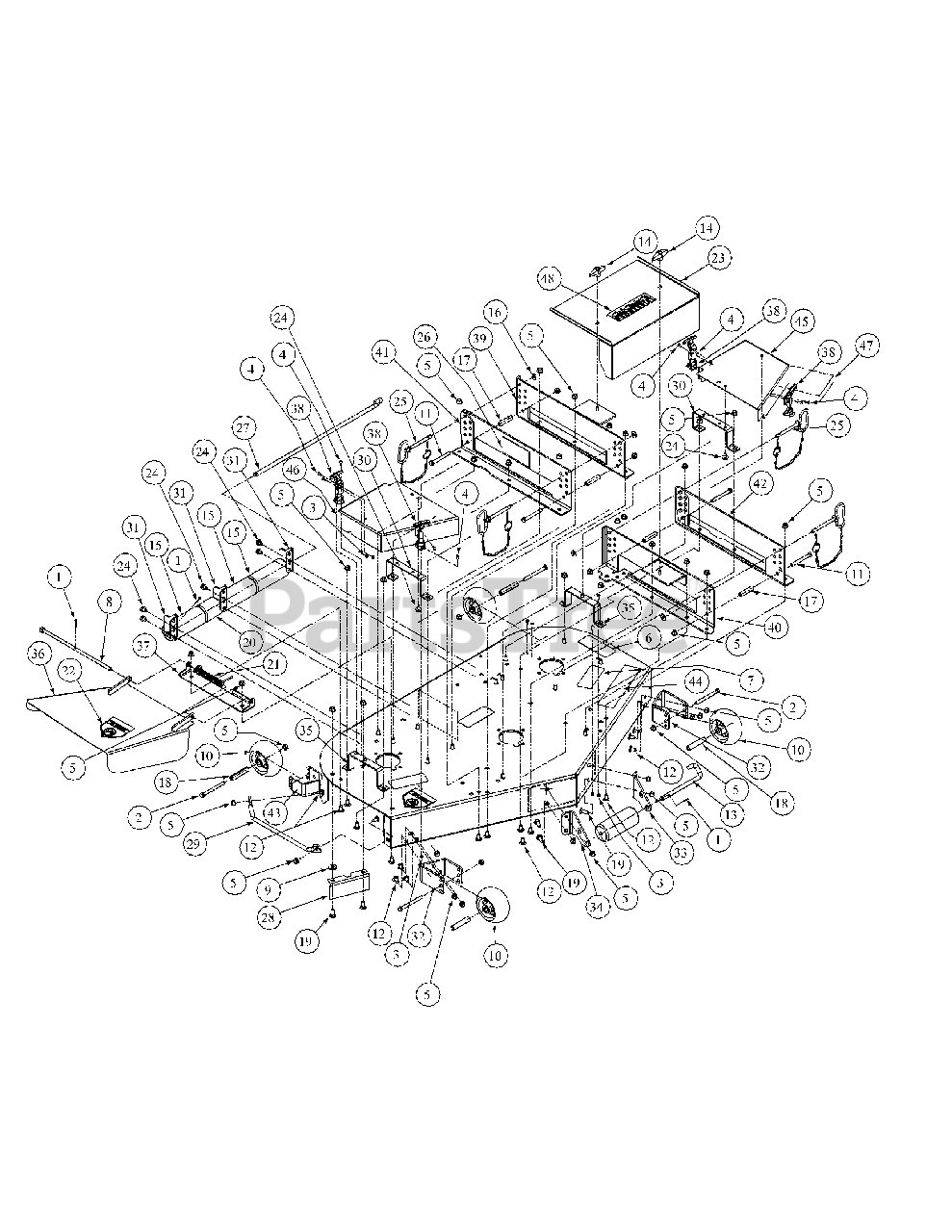

HF 1748 (55AF3D4V150) - Cub Cadet Walk-Behind Mower, Kawasaki Fabricated Float Deck Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

Fabricated Float Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 00003107

Cotter Pin, .125 Dia. x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00011925

Hex Cap Screw, 3/8-16 x 3.75
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

3

Cub Cadet 00014608

Lock Nut, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

4

Cub Cadet 00017778

Phillips Head Screw, #10-32 x 1/2

$4.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00030633

Decal Rotating Blade

$

$

Not available

7

Cub Cadet 00030635

Decal Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00030644

Deflector Pin Pivot Assembly

$110.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 634-3159

Wheel, 5.00 Dia.

$34.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3130

Hex Cap Screw, 3/8-16 x 3.25 Lg.

$10.99

$

In Stock, only 4 left!

0

12

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 911-3314

Roller Pin, 1/2 Dia. x 7.31 Lg.
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

14

Cub Cadet 720-04072A

Knob Assembly Wingnut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0262

Flat Washer, .385 ID x .870 OD x .092

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 01000395

Spacer Stop Deck

$

$

Not available

18

Cub Cadet 750-3193

Wheel Spacer

$18.99

$

In Stock, Qty 20+

0

19

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

20

Cub Cadet 01001169

Grass Catcher Frame Roller

$24.99

$

In Stock, only 3 left!

0

21

Cub Cadet 01002037

Torsion Spring

$70.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01006802

Center Belt Cover

Note: NLA

$

$

Not available

24

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16 x .5
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

25

Cub Cadet 01004402

Deck Pin 3/8 Dia.

$

$

Not available

26

Cub Cadet 01004522

Label, Cut Height

$

$

Not available

27

Cub Cadet 01004595

Roller Pin

$

$

Not available

28

Cub Cadet 01005355

Chute Bracket

$29.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01004628

Finger Guard

$48.99

$

In Stock, only 1 left!

0

30

Cub Cadet 01004684-0637

Belt Cover Support

$39.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01004707-0637

Roller Mount Bracket

$23.99

$

In Stock, Qty 13

0

32

Cub Cadet 01005243-0637

Anti-Scalp Wheel Front Mount Bracket

$57.99

$

In Stock, only 2 left!

0

33

Cub Cadet 01005244

Left Hand Front Roller Mount Bracket

Variations

Cub Cadet 01005244-0637

Roller Bracket, LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 01005244-4021

Roller Bracket, LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

34

Cub Cadet 01005245-0637

Right Hand Front Roller Mount Bracket

$36.99

$

In Stock, Qty 5

0

35

Cub Cadet 01005438-0637

Outer Belt Support Cover Assembly

$

$

Not available

36

Cub Cadet 01005583-0637

Chute Assembly
(Superseded to 01009386)

$

$

Not available

37

Cub Cadet 01005622

Chute Bracket Weldment

$

$

Not available

38

Cub Cadet 935-04038

T-Handle Latch Draw

$15.99

$

In Stock, Qty 14

0

39

Cub Cadet 01006404

Right Hand Inner Hanger Assembly

$

$

Not available

40

Cub Cadet 01006402

Left Hand Inner Hanger Assembly

$

$

Not available

41

Cub Cadet 01006403

Right Hand Outer Hanger Assembly

$

$

Not available

42

Cub Cadet 01006401

Left Hand Outer Hanger Assembly

$

$

Not available

43

Cub Cadet 01006412

48" Deck Weldment

$

$

Not available

44

Cub Cadet 01006087

Label Commercial Mower

$

$

Not available

45

Cub Cadet 01006601

Left Hand Belt Cover Weldment

$

$

Not available

46

Cub Cadet 01006602

Right Hand Belt Cover Weldment

$

$

Not available

47

Cub Cadet 01006673

Label Mower Deck

$

$

Not available

48

Cub Cadet 01006789

Label Commercial Mower Deck

$30.99

$

Usually ships in 3-6 days

0
