HEZ 3060 S - RedMax Edger (SN: 00100101 & Above) (2010-04) 001 - DRIVE UNIT Parts Diagram

Edger

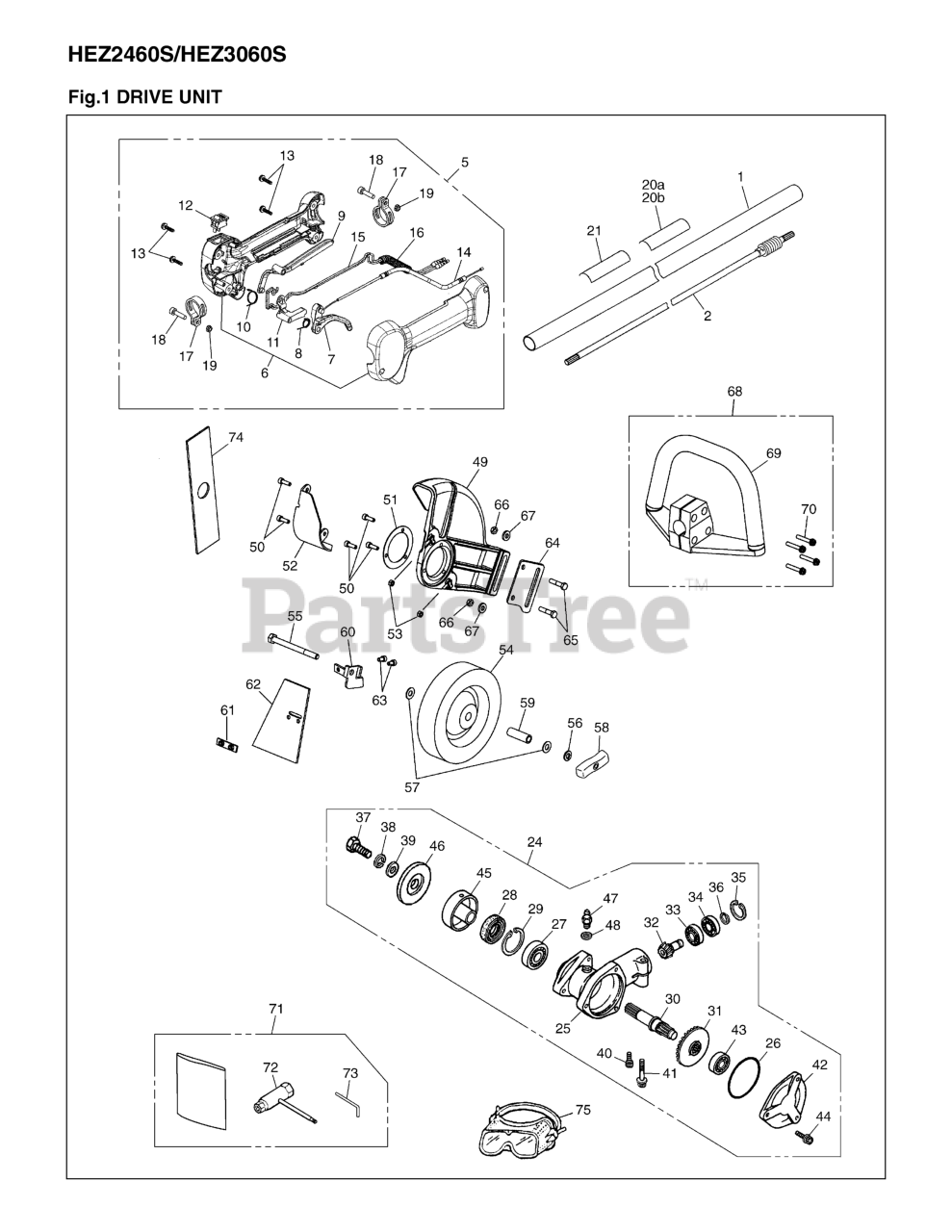

001 - DRIVE UNIT Parts Diagram

  • Title

1

RedMax 576129401

PIPE COMP

$80.99

$

In Stock, only 1 left!

0

2

RedMax 576110101

SHAFT

$120.99

$

Usually ships in 3-10 days

0

5

RedMax 574390301

GRIP ASSY
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

6

RedMax 576475201

GRIP, HALF SET
(Superseded to 576475202)

$31.99

$

In Stock, only 2 left!

0

7

RedMax 529258801

LEVER, THROTTLE

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 2 left!

0

9

RedMax 529259001

LEVER FOR GRIP (
(Superseded to 578778001)

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 574390801

SPRING

$3.49

$

Usually ships in 3-10 days

0

11

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

12

RedMax 521851601

SWITCH

$11.99

$

In Stock, only 3 left!

0

13

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 8

0

14

RedMax 529257101

CABLE-C

$12.99

$

In Stock, only 2 left!

0

15

RedMax 529256101

CORD - C

$7.49

$

Usually ships in 3-10 days

0

16

RedMax 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 529259401

BAND

$10.99

$

In Stock, only 1 left!

0

18

RedMax 521345401

BOLT (RPLS 28501
(Superseded to 504114301)

$6.49

$

Usually ships in 3-10 days

0

19

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

20B

RedMax 576253301

LABEL NAME

$7.99

$

Usually ships in 3-10 days

0

21

RedMax 510962901

LABEL CAUTON FOR

$7.49

$

Usually ships in 3-10 days

0

24

RedMax 521452201

GEARCASE
(Superseded to 515589801)

$227.99

$

Usually ships in 3-10 days

0

25

RedMax 521452301

GEARCASE
(Superseded to 505168401)

$91.99

$

In Stock, only 2 left!

0

26

RedMax 521452701

O-RING
(Superseded to 505168501)

$

$

Not available

27

RedMax 516128201

BEARING

$

$

Not available

28

RedMax 520889801

SEAL, OIL
(Superseded to 505168701)

$6.49

$

In Stock, only 3 left!

0

29

RedMax 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 521178801

SHAFT, GEAR (-13
(Superseded to 514366401)

$22.99

$

Usually ships in 3-10 days

0

31

RedMax 521452501

GEAR

$

$

Not available

32

RedMax 521452601

PINION
(Superseded to 505169101)

$36.99

$

Usually ships in 3-10 days

0

33

RedMax 505169201

BEARING (RPLS T3

$9.99

$

In Stock, Qty 5

0

34

RedMax 505169301

BEARING

$8.99

$

In Stock, only 3 left!

0

35

RedMax 505169401

RING, SNAP, M24

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 520910501

RING, SNAP (RPLS
(Superseded to 505169501)

$3.49

$

Usually ships in 3-10 days

0

37

RedMax 521209901

BOLT, LH
(Superseded to 505169601)

$7.49

$

In Stock, only 2 left!

0

38

RedMax 520966501

WASHER (RPLS 318
(Superseded to 505169701)

$4.99

$

In Stock, only 1 left!

0

39

RedMax 505169801

WASHER,M8x2.3(RP

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 516070401

BOLT, M5 x 12

$

$

Not available

41

RedMax 521171901

BOLT, M6 x 1.35
(Superseded to 506614901)

$3.99

$

Usually ships in 3-10 days

0

42

RedMax 521452401

COVER
(Superseded to 505170101)

$14.99

$

In Stock, only 2 left!

0

43

RedMax 505170201

BEARING (RPLS 06

$9.99

$

In Stock, only 3 left!

0

44

RedMax 574081301

BOLT

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 521179001

HOLDER (A)(RPLS
(Superseded to 514366601)

$20.99

$

In Stock, only 1 left!

0

46

RedMax 521179101

HOLDER (B)
(Superseded to 505171401)

$13.99

$

In Stock, only 2 left!

0

47

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

48

RedMax 505171601

WASHER, M6 x .8

$3.99

$

Usually ships in 3-10 days

0

49

RedMax 510981001

Guard
(Superseded to 510981002)

$68.99

$

In Stock, only 1 left!

0

50

RedMax 505171801

BOLT (M5x0.8-16)

$7.49

$

In Stock, only 2 left!

0

51

RedMax 505171901

PLATE

$10.99

$

In Stock, only 1 left!

0

52

RedMax 526059401

PROTECTOR

$9.99

$

In Stock, Qty 20+

0

53

RedMax 516116401

NUT, M5 x 4
(Superseded to 506609201)

$4.99

$

In Stock, only 2 left!

0

54

RedMax 505172501

WHEEL (RPLS T305

$42.99

$

In Stock, only 2 left!

0

55

RedMax 574069801

BOLT
(Superseded to 505172601)

$4.99

$

In Stock, only 3 left!

0

56

RedMax 505172901

WASHER, SPRING(T

$4.99

$

In Stock, only 2 left!

0

57

RedMax 516078701

WASHER
(Superseded to 505173001)

$4.99

$

In Stock, Qty 5

0

58

RedMax 527068601

NUT

$15.99

$

In Stock, only 2 left!

0

59

RedMax 505173301

SLEEVE

$12.99

$

In Stock, Qty 6

0

60

RedMax 505173501

BRACKET

$10.99

$

In Stock, Qty 9

0

61

RedMax 505173601

PLATE

$7.49

$

In Stock, Qty 10

0

62

RedMax 505173701

RUBBER (FLAP)

$15.99

$

In Stock, Qty 13

0

63

RedMax 516070301

BOLT, M5 x 10
(Superseded to 505173901)

$4.99

$

In Stock, only 1 left!

0

64

RedMax 505174601

MAIN BRACKET

$10.99

$

Usually ships in 3-10 days

0

65

RedMax 574069701

BOLT
(Superseded to 505174701)

$4.99

$

In Stock, Qty 5

0

66

RedMax 505174801

NUT

$3.99

$

Usually ships in 3-10 days

0

67

RedMax 516078701

WASHER
(Superseded to 505173001)

$4.99

$

In Stock, Qty 5

0

68

RedMax 526056401

HANDLE ASSY. (RP

$26.99

$

In Stock, only 3 left!

0

69

RedMax 512553501

HANDLE T

$

$

Not available

70

RedMax 521863101

SCREW

$3.49

$

In Stock, Qty 11

0

71

RedMax 510959301

Tool-Set

$5.99

$

In Stock, only 3 left!

0

72

RedMax 510960201

SOCKET

$8.49

$

Usually ships in 3-10 days

0

73

RedMax 521176101

BAR
(Superseded to 505312001)

$3.49

$

Usually ships in 3-10 days

0

74

RedMax 521453001

BLADE, EDGER (RP

$4.99

$

In Stock, Qty 20+

0

75

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available
