HEZ 2650 F - RedMax Edger (SN: 90800101 & Above) DRIVE Parts Diagram

Edger

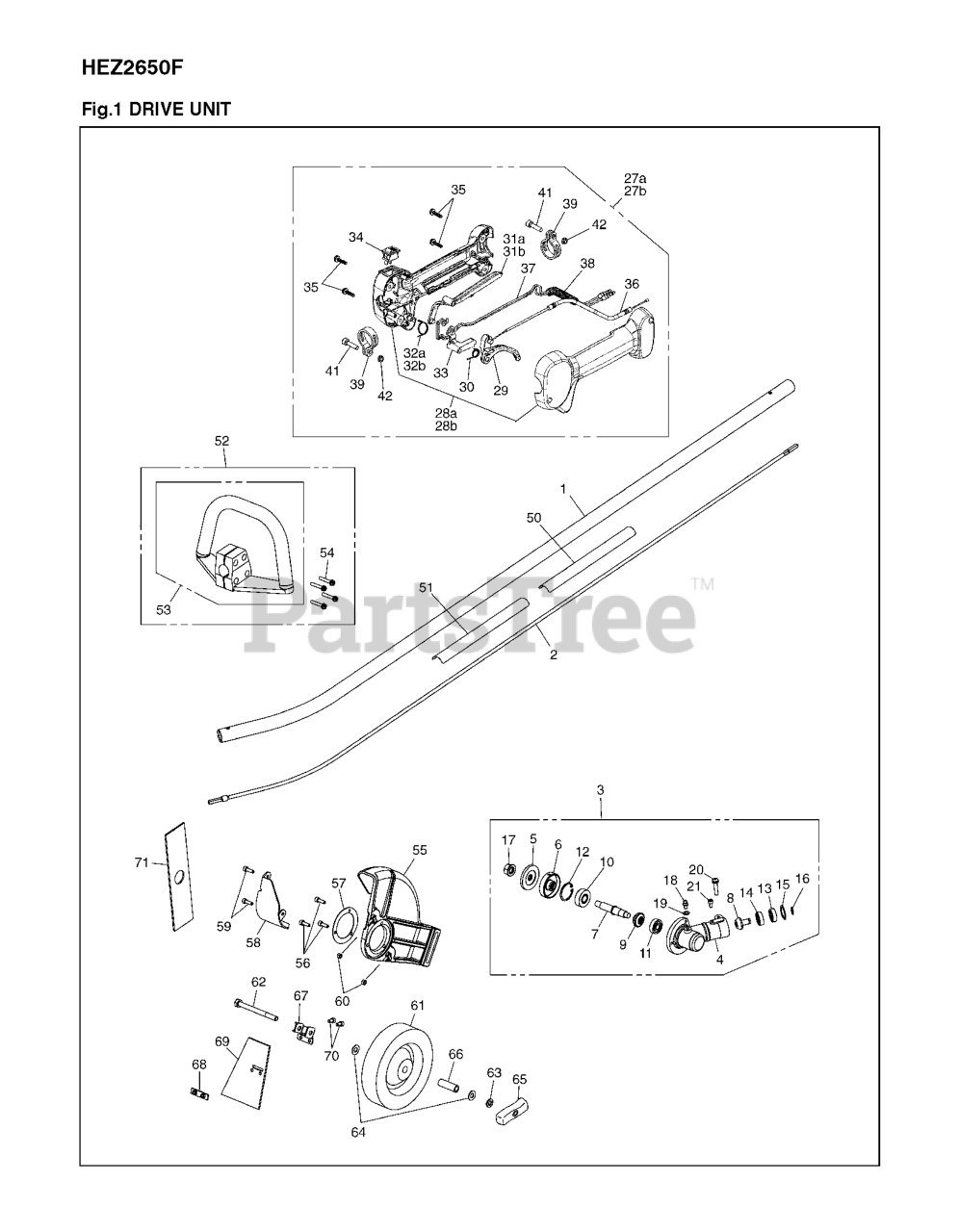

DRIVE Parts Diagram

  • Title

1

RedMax 526058301

PIPE COMP

$93.99

$

Usually ships in 3-10 days

0

2

RedMax 526058601

FLEX SHAFT

$30.99

$

In Stock, only 1 left!

0

3

RedMax 526059001

GEARCASE ASSY
(Superseded to 512556201)

$241.99

$

In Stock, only 1 left!

0

4

RedMax 512556001

GEARCASE

$78.99

$

Usually ships in 3-10 days

0

5

RedMax 515537501

HOLDER(B)

$10.99

$

Usually ships in 3-10 days

0

6

RedMax 515537401

HOLDER(A)

$30.99

$

Usually ships in 3-10 days

0

7

RedMax 515537201

SHAFT.GEAR

$42.99

$

Usually ships in 3-10 days

0

8

RedMax 512556101

PINION

$72.99

$

Usually ships in 3-10 days

0

9

RedMax 515537301

GEAR

$34.99

$

Usually ships in 3-10 days

0

10

RedMax 510569701

BEARING***

$14.99

$

In Stock, only 1 left!

0

11

RedMax 515537001

BEARING

$12.99

$

Usually ships in 3-10 days

0

12

RedMax 504121001

RING

$3.99

$

In Stock, only 2 left!

0

13

RedMax 505169301

BEARING

$8.99

$

In Stock, only 3 left!

0

14

RedMax 505169201

BEARING

$9.99

$

In Stock, Qty 5

0

15

RedMax 505169401

RP_RING

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 521821801

RING

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 521804001

NUT

$4.99

$

In Stock, only 3 left!

0

18

RedMax 505171501

FITTING

$6.49

$

In Stock, only 3 left!

0

19

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 526059101

BOLT

$7.49

$

Usually ships in 3-10 days

0

21

RedMax 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 516070301)

$4.99

$

In Stock, only 1 left!

0

27

RedMax 574390301

GRIP ASSY
(Superseded to 574390302)

Note: UP TO SN11299999

$93.99

$

In Stock, only 1 left!

0

27

RedMax 574390302

GRIP ASSY

Note: FROM SN20400101

$93.99

$

In Stock, only 1 left!

0

28

RedMax 576475201

GRIP HALF SET
(Superseded to 576475202)

Note: UP TO SN11299999

$31.99

$

In Stock, only 2 left!

0

28

RedMax 576475202

GRIP HALF SET

Note: FROM SN20400101

$31.99

$

In Stock, only 2 left!

0

29

RedMax 529258801

LEVER, THROTTLE

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 2 left!

0

31

RedMax 529259001

LEVER FOR GRIP (RPLS -0600)
(Superseded to 578778001)

Note: UP TO SN11299999

$4.99

$

In Stock, only 1 left!

0

31

RedMax 578778001

LEVER, SAFETY

Note: FROM SN20400101

$4.99

$

In Stock, only 1 left!

0

32

RedMax 574390801

SPRING JOINT

Note: UP TO SN11299999

$3.49

$

Usually ships in 3-10 days

0

32

RedMax 511591801

SPRING

Note: FROM SN20400101

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

34

RedMax 521851601

SWITCH

$11.99

$

In Stock, only 3 left!

0

35

RedMax 521517701

SCREW

$4.99

$

Usually ships in 3-10 days

0

36

RedMax 529257101

CABLE-C

$12.99

$

In Stock, only 2 left!

0

37

RedMax 529256101

CORD - C

$7.49

$

Usually ships in 3-10 days

0

38

RedMax 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 529259401

BAND

$10.99

$

In Stock, only 1 left!

0

41

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

42

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

50

RedMax 580261111

$

$

Not available

51

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

52

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

$26.99

$

In Stock, only 3 left!

0

53

RedMax 512553501

HANDLE T

$

$

Not available

54

RedMax 521863101

SCREW

$3.49

$

In Stock, Qty 11

0

55

RedMax 510981001

GUARD
(Superseded to 510981002)

$68.99

$

In Stock, only 1 left!

0

56

RedMax 505171801

BOLT M5 X L16 ALLEN

$7.49

$

In Stock, only 2 left!

0

57

RedMax 505171901

PLATE

$10.99

$

In Stock, only 2 left!

0

58

RedMax 526059401

PROTECTOR

$9.99

$

In Stock, Qty 20+

0

59

RedMax 505171801

BOLT M5 X L16 ALLEN

$7.49

$

In Stock, only 2 left!

0

60

RedMax 505172301

NUT

$4.99

$

In Stock, only 2 left!

0

61

RedMax 505172501

WHEEL

$42.99

$

In Stock, only 2 left!

0

62

RedMax 526059601

BOLT

$8.99

$

In Stock, only 2 left!

0

63

RedMax 505172901

WASHER

$4.99

$

In Stock, only 2 left!

0

64

RedMax 505173001

WASHER

$4.99

$

In Stock, Qty 5

0

65

RedMax 527068601

NUT

$15.99

$

In Stock, only 2 left!

0

66

RedMax 505173301

SLEEVE

$12.99

$

In Stock, Qty 6

0

67

RedMax 526059501

BRACKET

$9.99

$

In Stock, only 4 left!

0

68

RedMax 505173601

PLATE

$7.49

$

In Stock, Qty 10

0

69

RedMax 505173701

RUBBER

$15.99

$

In Stock, Qty 13

0

70

RedMax 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 516070301)

$4.99

$

In Stock, only 1 left!

0

71

RedMax 505175301

BLADE

$17.99

$

In Stock, Qty 20+

0
