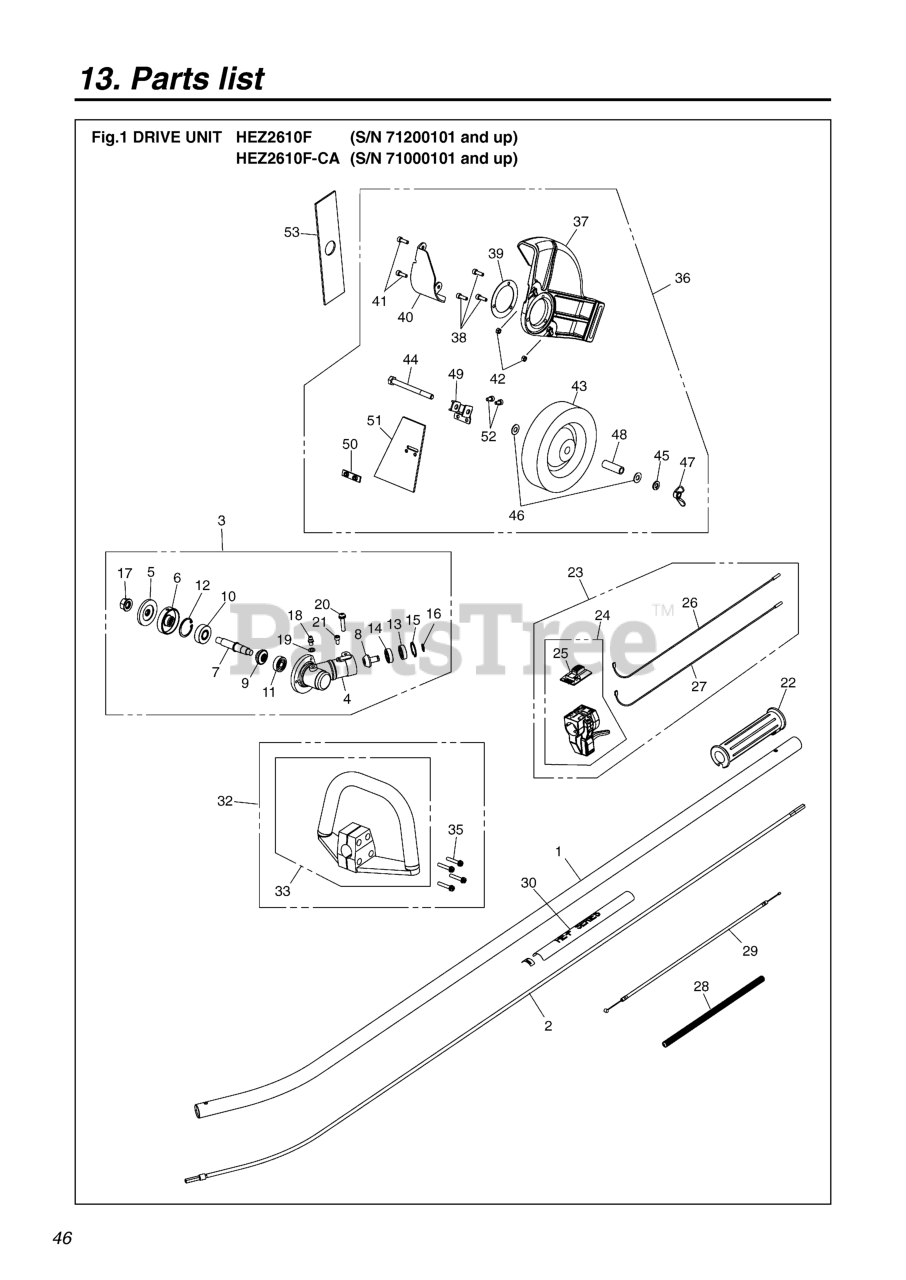

003 - DRIVE UNIT Parts Diagram

  • Title

1

RedMax T320712100

PIPE COMP
(Superseded to 526058301)

$93.99

$

Usually ships in 3-10 days

0

2

RedMax T320712200

SHAFT COMP
(Superseded to 526058601)

$30.99

$

In Stock, only 1 left!

0

3

RedMax T320713000

T3207-31000

$

$

Not available

4

RedMax T320713110

GEARCASE
(Superseded to 512556001)

$78.99

$

Usually ships in 3-10 days

0

5

RedMax 612913250

HOLDER B
(Superseded to 515537501)

$10.99

$

Usually ships in 3-10 days

0

6

RedMax 612913240

HOLDER A
(Superseded to 515537401)

$30.99

$

Usually ships in 3-10 days

0

7

RedMax 612913211

SHAFT

$26.21

$

Usually ships in 3-10 days

0

8

RedMax T320713310

PINION
(Superseded to 512556101)

$72.99

$

Usually ships in 3-10 days

0

9

RedMax 612913220

GEAR
(Superseded to 521424901)

$34.99

$

Usually ships in 3-10 days

0

10

RedMax 0600406201

BEARING
(Superseded to 510569701)

$14.99

$

In Stock, only 1 left!

0

11

RedMax 612913120

BEARING
(Superseded to 515537001)

$12.99

$

Usually ships in 3-10 days

0

12

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 0600100609

BEARING (RPLS T3300-13531)
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

14

RedMax 0600000609

BEARING (RPLS T3403-13530)
(Superseded to 505169201)

$9.99

$

In Stock, Qty 5

0

15

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

16

RedMax T330013330

3210-13330
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

17

RedMax T300213260

NUT
(Superseded to 521804001)

$4.99

$

In Stock, only 2 left!

0

18

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

19

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

20

RedMax T320713260

BOLT
(Superseded to 526059101)

$7.49

$

Usually ships in 3-10 days

0

21

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

22

RedMax 848J8032H2

GRIP
(Superseded to 521651001)

$

$

Not available

23

RedMax 8488R20344

LEVER ASSY
(Superseded to 521529701)

$

$

Not available

24

RedMax 8488R20314

LEVER
(Superseded to 521529601)

$

$

Not available

25

RedMax 8488RA0340

COVER COMP. (RP. 6110-14410-02)
(Superseded to 521531101)

$13.99

$

Usually ships in 3-10 days

0

26

RedMax T300212220

CORD (A), BLACK
(Superseded to 521803401)

$8.49

$

In Stock, only 1 left!

0

27

RedMax T300212230

CORD (B), RED
(Superseded to 521803501)

$5.99

$

Usually ships in 3-10 days

0

28

RedMax T300212240

TUBE (RPLS 4900-72141)
(Superseded to 512497101)

$4.99

$

Usually ships in 3-10 days

0

29

RedMax T300283100

CABLE (RPLS 5580-83100)
(Superseded to 512498601)

$18.99

$

Usually ships in 3-10 days

0

30

RedMax 848A4590R0

NAME PLATE

$2.90

$

Usually ships in 3-10 days

0

32

RedMax T319514002

HANDLE ASSY. (REPLACES -14001)
(Superseded to 526056401)

$26.99

$

In Stock, only 3 left!

0

33

RedMax T319514102

HANDLE T
(Superseded to 512553501)

$

$

Not available

35

RedMax T496053030

SCREW
(Superseded to 521863101)

$3.49

$

In Stock, Qty 11

0

36

RedMax T320724000

GUARD ASSY.
(Superseded to 510983101)

$169.99

$

Usually ships in 3-10 days

0

37

RedMax 848A4766A1

GUARD
(Superseded to 510981002)

$68.99

$

In Stock, only 1 left!

0

38

RedMax T320724130

BOLT (M5x0.8-16)
(Superseded to 505171801)

$7.49

$

In Stock, only 2 left!

0

39

RedMax T320724150

PLATE
(Superseded to 505171901)

$10.99

$

In Stock, only 1 left!

0

40

RedMax T320724210

PROTECTOR
(Superseded to 526059401)

$9.99

$

In Stock, Qty 20+

0

41

RedMax T320724130

BOLT (M5x0.8-16)
(Superseded to 505171801)

$7.49

$

In Stock, only 2 left!

0

42

RedMax 028010504

NUT, M5 X 4
(Superseded to 505172301)

$4.99

$

In Stock, only 2 left!

0

43

RedMax 848A4766P0

WHEEL
(Superseded to 505172501)

$42.99

$

In Stock, only 2 left!

0

44

RedMax T320725170

BOLT
(Superseded to 526059601)

$8.99

$

In Stock, only 2 left!

0

45

RedMax 0160220825

WASHER, SPRING
(Superseded to 505172901)

$4.99

$

In Stock, only 2 left!

0

46

RedMax 0164220810

WASHER, PLANE(USE 01640-20816)
(Superseded to 516077101)

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 0154050840

WING NUT

$

$

Not available

48

RedMax T320725160

SLEEVE
(Superseded to 505173301)

$12.99

$

In Stock, Qty 6

0

49

RedMax T320724310

BRACKET
(Superseded to 526059501)

$9.99

$

In Stock, only 4 left!

0

50

RedMax T320724320

PLATE

$2.18

$

Usually ships in 3-10 days

0

51

RedMax T320724330

RUBBER (FLAP)

$15.99

$

In Stock, Qty 13

0

52

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

53

RedMax 636715110

BLADE, EDGER (RPLS 147315)

$

$

Not available
