HEZ 2601 S - RedMax Edger (SN: 60100101 & Above) (2006-01) 004 - ENGINE UNIT Parts Diagram

Edger

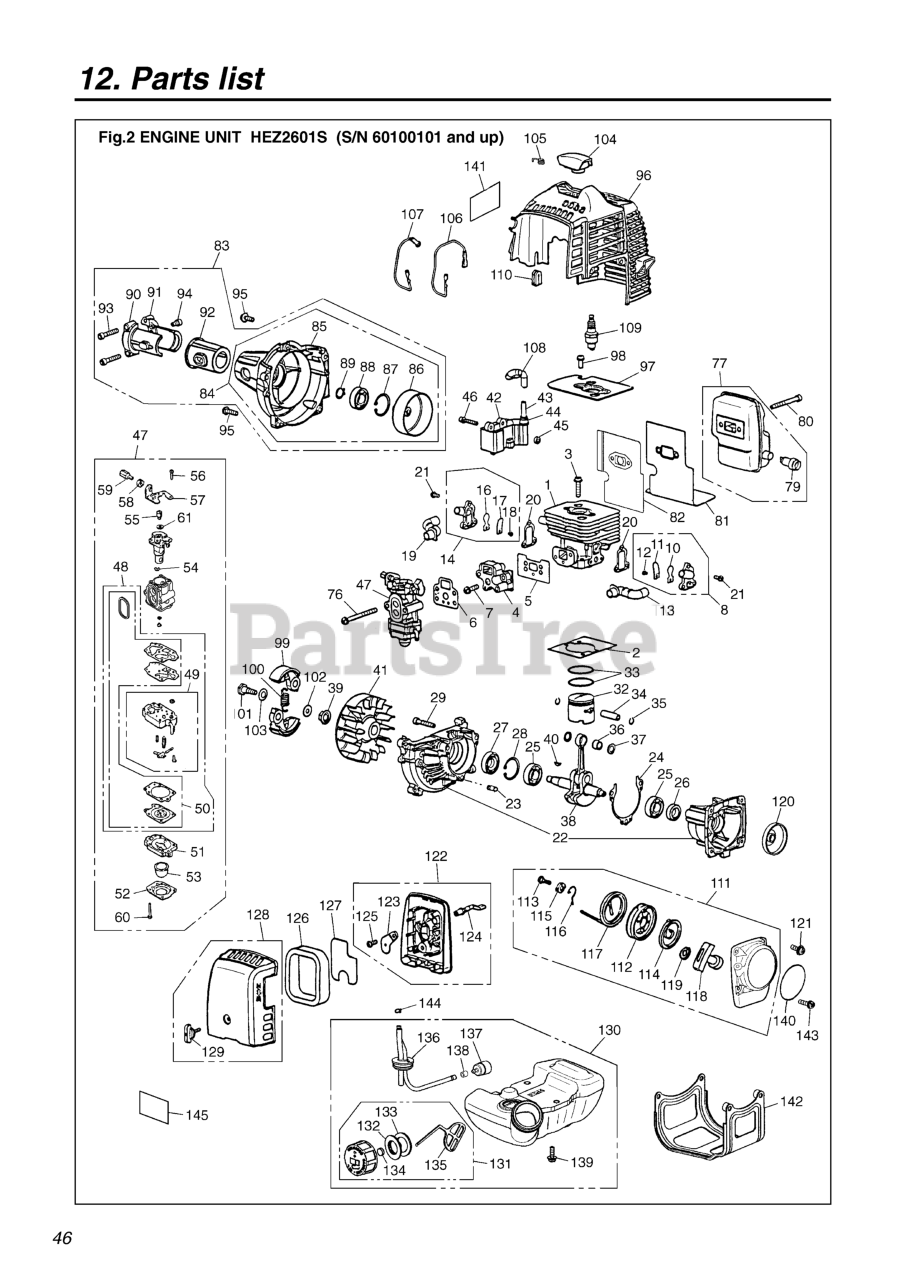

004 - ENGINE UNIT Parts Diagram

  • Title

1

RedMax 848F3R12A2

CYLINDER
(Superseded to 521611601)

$56.99

$

In Stock, only 2 left!

0

2

RedMax 848F3R12B0

GASKET
(Superseded to 521611701)

$6.49

$

In Stock, only 1 left!

0

3

RedMax 482012130

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

4

RedMax 848F3R14A0

INSULATOR
(Superseded to 521611901)

$17.99

$

In Stock, only 3 left!

0

5

RedMax 481013120

GASKET, INSULATOR
(Superseded to 515379501)

$

$

Not available

6

RedMax 481013130

GASKET, CARBURETOR
(Superseded to 515379601)

$4.99

$

In Stock, only 1 left!

0

7

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

8

RedMax 848F3R1600

REEDVALVE ASSY S
(Superseded to 521612201)

$13.99

$

Usually ships in 3-10 days

0

10

RedMax 848F3R16C0

REEDVALVE
(Superseded to 521612601)

$12.99

$

Usually ships in 3-10 days

0

11

RedMax 481016130

STOPPER
(Superseded to 521338901)

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 481016170

SCREW, M3 x 8
(Superseded to 521339301)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 848F3R16E0

PIPE, AIR S
(Superseded to 521612701)

$9.99

$

In Stock, Qty 6

0

14

RedMax 848F3R1610

REEDVALVE ASSY F
(Superseded to 521612401)

$13.99

$

Usually ships in 3-10 days

0

16

RedMax 848F3R16C0

REEDVALVE
(Superseded to 521612601)

$12.99

$

Usually ships in 3-10 days

0

17

RedMax 481016130

STOPPER
(Superseded to 521338901)

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 481016170

SCREW, M3 x 8
(Superseded to 521339301)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 848F3R16F0

PIPE, AIR F
(Superseded to 521612801)

$8.99

$

In Stock, Qty 10

0

20

RedMax 848F3R16H0

GASKET, VALVE
(Superseded to 521612901)

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 482016310

BOLT, TORX
(Superseded to 521345601)

$2.49

$

In Stock, Qty 8

0

22

RedMax 481021101

CRANKCASE-C

$16.76

$

Usually ships in 3-10 days

0

23

RedMax 262921130

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 481021140

GASKET
(Superseded to 515381801)

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 0603006001

BEARING
(Superseded to 523071701)

$12.99

$

In Stock, only 1 left!

0

26

RedMax 481021210

SEAL
(Superseded to 504121501)

$9.99

$

Usually ships in 3-10 days

0

27

RedMax 185021220

SEAL, OIL (RPLS 1140-21220)
(Superseded to 506612901)

$6.49

$

In Stock, only 2 left!

0

28

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

29

RedMax 482021310

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

32

RedMax 848F3R41A0

PISTON
(Superseded to 521613101)

$48.99

$

In Stock, only 1 left!

0

33

RedMax 8488C34101

RING, PISTON
(Superseded to 506618101)

$11.99

$

In Stock, only 4 left!

0

34

RedMax T151341310

PIN
(Superseded to 521522601)

$6.49

$

In Stock, only 4 left!

0

35

RedMax 126041320

RING, SNAP (RPLS 1101-41320)
(Superseded to 505045201)

$4.99

$

In Stock, Qty 11

0

36

RedMax 550041410

BEARING (RPLS 1140-41330)
(Superseded to 505040901)

$9.99

$

In Stock, only 1 left!

0

37

RedMax 110141340

WASHER
(Superseded to 516181201)

$

$

Not available

38

RedMax 848F3R4200

CRANKSHAFT COMP
(Superseded to 521613201)

$121.99

$

Usually ships in 3-10 days

0

39

RedMax 165043230

182301
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 481071110

ROTOR
(Superseded to 515384501)

$48.99

$

Usually ships in 3-10 days

0

42

RedMax T151271200

COIL-A
(Superseded to 512320001)

$120.99

$

Usually ships in 3-10 days

0

43

RedMax T151271220

CORD
(Superseded to 521749201)

$17.99

$

Usually ships in 3-10 days

0

44

RedMax 261671320

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 126071261

SPACER (RPLS -71260)
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

47

RedMax 848F3R8100

CARBURETOR
(Superseded to 511367401)

$

$

Not available

48

RedMax 848F600630

REBUILD KIT
(Superseded to 506657901)

$100.99

$

In Stock, Qty 20+

0

49

RedMax 185081450

BODY, PUMP
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

50

RedMax 481006021

KIT, GASKET (REPLACES-06020)
(Superseded to 506615501)

$74.99

$

Usually ships in 3-10 days

0

51

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

52

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 8

0

53

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

54

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

55

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

56

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 550081120

BRACKET

$7.42

$

Usually ships in 3-10 days

0

58

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

59

RedMax 191881170

SCREW, CABLE ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

60

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

61

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

76

RedMax 482082310

BOLT
(Superseded to 515390701)

$4.99

$

Usually ships in 3-10 days

0

77

RedMax 848F081510

MUFFLER-A
(Superseded to 521613501)

$34.99

$

In Stock, only 2 left!

0

79

RedMax 481015140

ARRESTER
(Superseded to 506615601)

$9.99

$

In Stock, only 1 left!

0

80

RedMax 482015310

BOLT
(Superseded to 504116501)

$4.99

$

In Stock, Qty 10

0

81

RedMax 848F3R15C0

GASKET
(Superseded to 521612001)

$21.99

$

Usually ships in 3-10 days

0

82

RedMax 848F3R15D0

PLATE, MUFFLER
(Superseded to 521612101)

$15.99

$

In Stock, only 4 left!

0

83

RedMax 848F305303

COVER ASSY
(Superseded to 521609901)

$

$

Not available

84

RedMax 481031102

COVER COMP. (REPLACES -31101)
(Superseded to 521340601)

$72.99

$

Usually ships in 3-10 days

0

85

RedMax 481031111

COVER, FAN (REPLACES -31110)
(Superseded to 521340801)

$48.99

$

Usually ships in 3-10 days

0

86

RedMax 848F3051A1

DRUM (REPLACES 4810-31122)
(Superseded to 521609801)

$47.99

$

In Stock, only 1 left!

0

87

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

88

RedMax T170131150

BEARING
(Superseded to 525953201)

$14.99

$

In Stock, only 1 left!

0

89

RedMax 0406401210

RING, SNAP (RPLS 3130-13270)
(Superseded to 516124101)

$4.99

$

In Stock, only 3 left!

0

90

RedMax 647031211

BRACKET (A) (RPLS -31210)
(Superseded to 521478201)

$12.99

$

Usually ships in 3-10 days

0

91

RedMax 647031221

BRACKET (B) (REPLACES -31220)
(Superseded to 521478401)

$15.99

$

Usually ships in 3-10 days

0

92

RedMax 647031230

CUSHION
(Superseded to 515649601)

$10.99

$

In Stock, only 4 left!

0

93

RedMax 482021310

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

94

RedMax T150132120

BOLT
(Superseded to 521746501)

$4.99

$

In Stock, only 3 left!

0

95

RedMax 482032120

BOLT, TORX
(Superseded to 506745601)

$3.99

$

In Stock, only 2 left!

0

96

RedMax 848F3R31A0

COVER, ENGINE
(Superseded to 521613001)

$37.99

$

In Stock, only 3 left!

0

97

RedMax 848F3R12G0

PLATE
(Superseded to 521611801)

$7.49

$

Usually ships in 3-10 days

0

98

RedMax 482012350

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

99

RedMax 482051110

SHOE
(Superseded to 515389201)

$17.99

$

Usually ships in 3-10 days

0

100

RedMax 482051220

SPRING
(Superseded to 515389301)

$6.49

$

In Stock, only 2 left!

0

101

RedMax 114051250

BOLT
(Superseded to 513189601)

$4.99

$

In Stock, only 4 left!

0

102

RedMax 114051230

WASHER, FLAT (USE 182303)
(Superseded to 516207701)

$4.99

$

Usually ships in 3-10 days

0

103

RedMax 114051242

WASHER (RPLS -51241)
(Superseded to 513189501)

$4.99

$

Usually ships in 3-10 days

0

104

RedMax 481072111

CAP (RPLS 4810-72110)
(Superseded to 521610001)

$9.99

$

In Stock, only 2 left!

0

105

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

Usually ships in 3-10 days

0

106

RedMax 481071240

CORD (BLACK)
(Superseded to 521342101)

$6.49

$

In Stock, only 1 left!

0

107

RedMax 481071250

CORD, EARTH (RED)
(Superseded to 521342201)

$6.49

$

In Stock, only 1 left!

0

108

RedMax T151271320

TUBE
(Superseded to 521749501)

$3.99

$

Usually ships in 3-10 days

0

109

RedMax 369991867

T1108-73110
(Superseded to 544260901)

$4.46

$

Usually ships in 3-10 days

0

110

RedMax 481072120

GROMMET
(Superseded to 521342501)

$3.99

$

Usually ships in 3-10 days

0

111

RedMax 481075100

RECOIL ASSEMBLY
(Superseded to 515385401)

$66.99

$

In Stock, only 1 left!

0

112

RedMax 450075120

REEL
(Superseded to 504114701)

$18.99

$

In Stock, only 4 left!

0

113

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

114

RedMax 185075130

SPRING, SPIRAL
(Superseded to 504115001)

$18.99

$

In Stock, only 4 left!

0

115

RedMax 450075180

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 10

0

116

RedMax 450075190

ARM
(Superseded to 504114801)

$7.49

$

In Stock, Qty 10

0

117

RedMax 481075160

ROPE (REPLACES 4500-75160)
(Superseded to 504114901)

$9.49

$

In Stock, only 1 left!

0

118

RedMax 333075421

KNOB (RPLS -75420)
(Superseded to 506614701)

$6.99

$

In Stock, only 2 left!

0

119

RedMax 481075170

PLATE, STOPPER
(Superseded to 521342901)

$3.99

$

In Stock, only 1 left!

0

120

RedMax 450075210

PULLEY
(Superseded to 504114401)

$9.99

$

In Stock, only 2 left!

0

121

RedMax T150132120

BOLT
(Superseded to 521746501)

$4.99

$

In Stock, only 3 left!

0

122

RedMax 481082100

BODY ASSEMBLY
(Superseded to 515386401)

$

$

Not available

123

RedMax 481082130

PLATE, CHOKE
(Superseded to 515386501)

$

$

Not available

124

RedMax 550082140

LEVER, CHOKE
(Superseded to 515417201)

$

$

Not available

125

RedMax 263033610

SCREW
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

126

RedMax 481082170

ELEMENT
(Superseded to 515386601)

$6.99

$

In Stock, only 1 left!

0

127

RedMax 481082180

SCREEN
(Superseded to 515386701)

$

$

Not available

128

RedMax 481082200

COVER ASSEMBLY
(Superseded to 521613801)

$8.99

$

Usually ships in 3-10 days

0

129

RedMax 550082221

KNOB (RPLS -82220)
(Superseded to 504115101)

$4.99

$

Usually ships in 3-10 days

0

130

RedMax 848F348500

TANK ASSY
(Superseded to 579141802)

$96.99

$

In Stock, only 2 left!

0

131

RedMax T101585202

CAP ASSY (RPLS -85201)
(Superseded to 504117701)

$30.99

$

In Stock, only 2 left!

0

132

RedMax 450085300

HOLDER (REPLACES -85230)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

133

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

Usually ships in 3-10 days

0

134

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 2 left!

0

135

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

136

RedMax 481085300

PIPE COMPLETE
(Superseded to 579138306)

$42.99

$

In Stock, only 4 left!

0

137

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

138

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

139

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

140

LABEL, RECOIL

$

$

Not available

141

RedMax 848F6090B0

LABEL, COVER
(Superseded to 511380301)

$

$

Not available

142

RedMax T150631910

GUARD (RPLS 4810-31911)
(Superseded to 511371201)

$24.99

$

In Stock, only 3 left!

0

143

RedMax 482012130

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

144

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, Qty 10

0

145

RedMax 481082230

LABEL

$10.38

$

Usually ships in 3-10 days

0
