HEZ 2460 S - RedMax Edger (SN: 00100101 & Above) (2012-08) DRIVE Parts Diagram

Edger

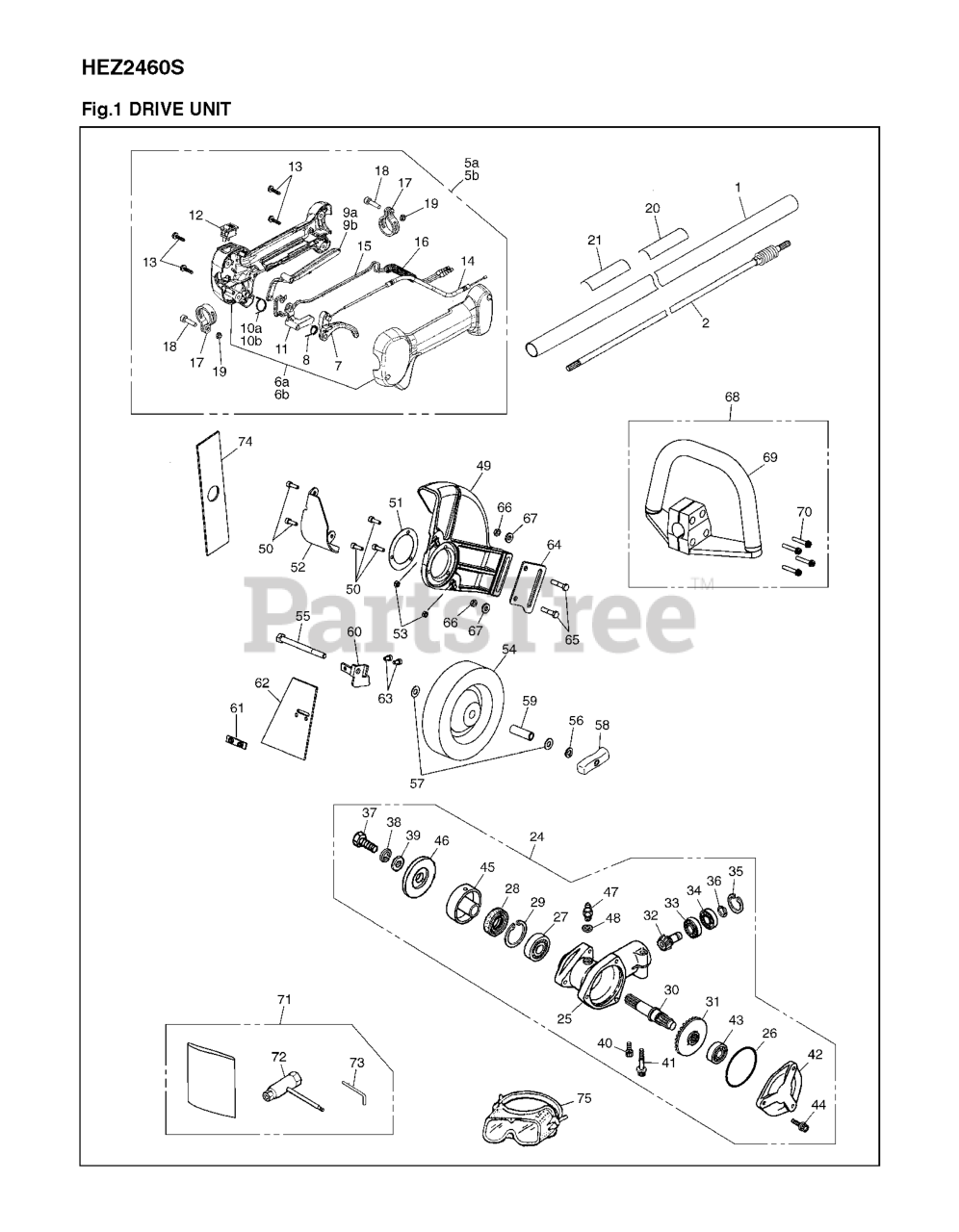

DRIVE Parts Diagram

  • Title
1

RedMax 576129401

PIPE COMP

$80.99

$

In Stock, only 1 left!

0

$120.99

$

Usually ships in 3-10 days

0

5

RedMax 574390301

GRIP ASSY
(Superseded to 574390302)

Note: UP TO SN11299999

$93.99

$

In Stock, only 1 left!

0

5

RedMax 574390302

GRIP ASSY

Note: FROM SN20400101

$93.99

$

In Stock, only 1 left!

0

6

RedMax 576475201

GRIP HALF SET
(Superseded to 576475202)

Note: UP TO SN11299999

$31.99

$

In Stock, only 2 left!

0

6

RedMax 576475202

GRIP HALF SET

Note: FROM SN20400101

$31.99

$

In Stock, only 2 left!

0

7

RedMax 529258801

LEVER, THROTTLE

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 2 left!

0

9

RedMax 529259001

LEVER FOR GRIP (RPLS -0600)
(Superseded to 578778001)

Note: UP TO SN11299999

$4.99

$

In Stock, only 1 left!

0

9

RedMax 578778001

LEVER, SAFETY

Note: FROM SN20400101

$4.99

$

In Stock, only 1 left!

0

10

RedMax 574390801

SPRING JOINT

Note: UP TO SN11299999

$3.49

$

Usually ships in 3-10 days

0

10

RedMax 511591801

SPRING

Note: FROM SN20400101

$3.49

$

Usually ships in 3-10 days

0

11

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

12

$11.99

$

In Stock, only 3 left!

0

13

$4.99

$

Usually ships in 3-10 days

0

14

$12.99

$

In Stock, only 2 left!

0

15

RedMax 529256101

CORD - C

$7.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$10.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 2 left!

0

19

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

20

RedMax 576110301

NAME LABLE HEZ2460S

$6.99

$

Usually ships in 3-10 days

0

21

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

24

RedMax 515589801

GEARCASE ASSY

$227.99

$

Usually ships in 3-10 days

0

25

RedMax 505168401

GEARCASE

$91.99

$

In Stock, only 2 left!

0

26

$

$

Not available

27

$13.99

$

Usually ships in 3-10 days

0

28

RedMax 505168701

OIL SEAL

$6.49

$

In Stock, only 3 left!

0

$3.99

$

In Stock, only 2 left!

0

30

$22.99

$

Usually ships in 3-10 days

0

$

$

Not available

32

$36.99

$

Usually ships in 3-10 days

0

33

$9.99

$

In Stock, Qty 5

0

34

$8.99

$

In Stock, only 3 left!

0

35

$3.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

37

RedMax 505169601

BOLT M8 X L25 L/H

$7.49

$

In Stock, Qty 6

0

38

$4.99

$

In Stock, only 2 left!

0

39

$4.99

$

In Stock, only 1 left!

0

40

RedMax 516070401

BOLT, M5 x 12

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

42

$14.99

$

In Stock, only 2 left!

0

43

$9.99

$

In Stock, only 3 left!

0

44

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 514366601

HOLDER(A)

$20.99

$

In Stock, only 2 left!

0

46

RedMax 505171401

HOLDER (B)

$13.99

$

In Stock, only 4 left!

0

47

$6.49

$

In Stock, only 3 left!

0

48

$3.99

$

Usually ships in 3-10 days

0

49

RedMax 510981001

GUARD
(Superseded to 510981002)

$68.99

$

In Stock, only 1 left!

0

50

RedMax 505171801

BOLT M5 X L16 ALLEN

$7.49

$

In Stock, only 2 left!

0

51

$10.99

$

In Stock, only 2 left!

0

52

RedMax 526059401

PROTECTOR

$9.99

$

In Stock, Qty 20+

0

$4.99

$

In Stock, only 2 left!

0

54

$42.99

$

In Stock, only 2 left!

0

55

RedMax 505172601

BOLT M8 X L65

$4.99

$

In Stock, only 3 left!

0

56

$4.99

$

In Stock, only 2 left!

0

57

$4.99

$

In Stock, Qty 5

0

$15.99

$

In Stock, only 2 left!

0

59

$12.99

$

In Stock, Qty 6

0

60

$10.99

$

In Stock, Qty 9

0

61

$7.49

$

In Stock, Qty 10

0

62

$15.99

$

In Stock, Qty 13

0

63

RedMax 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 516070301)

$4.99

$

In Stock, only 1 left!

0

64

RedMax 505174601

MAIN BRACKET

$10.99

$

Usually ships in 3-10 days

0

65

RedMax 505174701

BOLT M8 X L40

$4.99

$

In Stock, Qty 5

0

$3.99

$

Usually ships in 3-10 days

0

67

$4.99

$

In Stock, Qty 5

0

68

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

$26.99

$

In Stock, only 3 left!

0

69

RedMax 512553501

HANDLE T

$

$

Not available

70

$3.49

$

In Stock, Qty 11

0

71

RedMax 510959301

TOOL SET

$5.99

$

In Stock, only 3 left!

0

72

$8.49

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

74

RedMax 521453001

Edger Blade

$4.99

$

In Stock, Qty 20+

0

75

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available
