HEZ 2460 F - RedMax Edger (SN: 00700101 & Above) (2010-07) 001 - DRIVE UNIT Parts Diagram

Edger

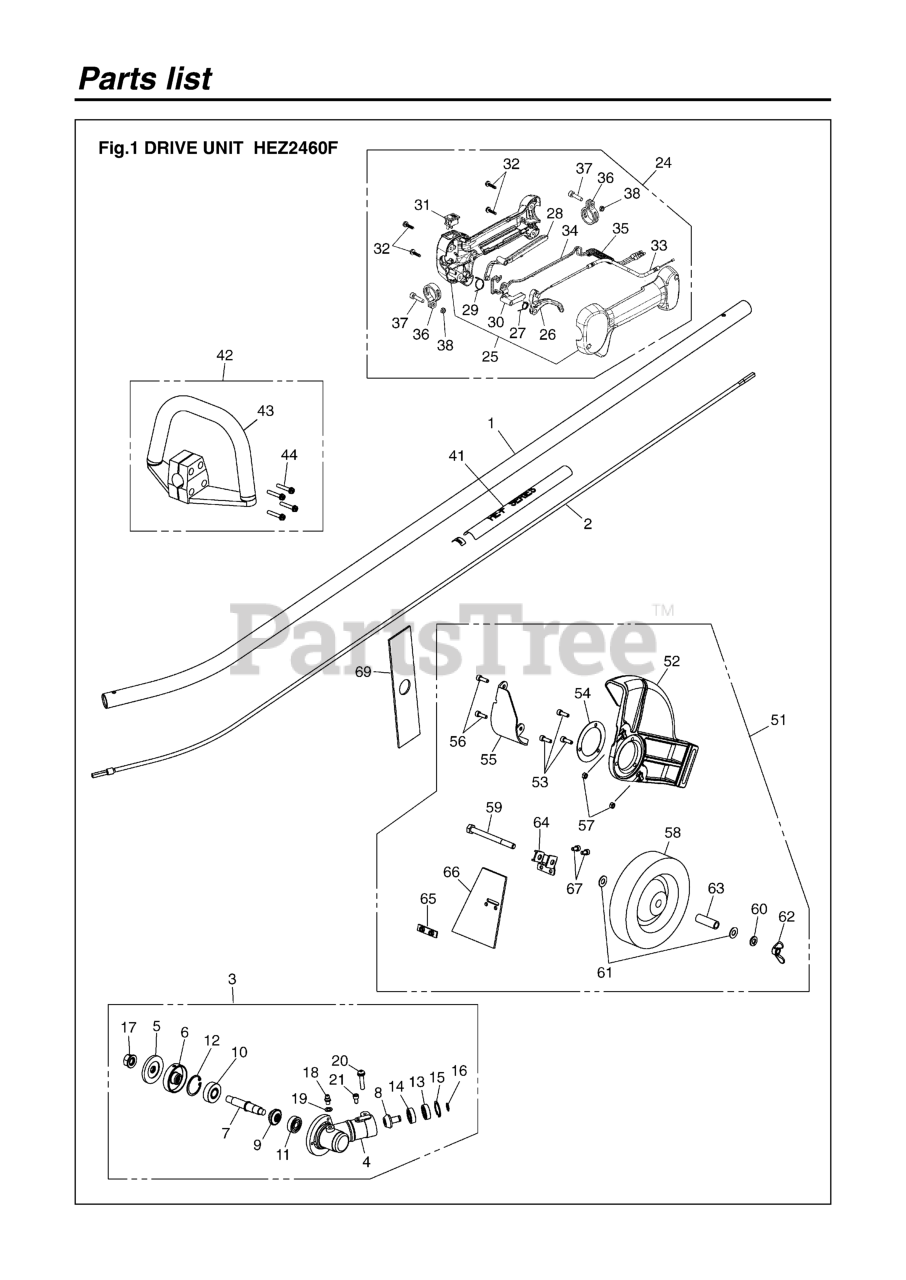

001 - DRIVE UNIT Parts Diagram

  • Title

1

RedMax 526058301

PIPE COMP

$93.99

$

Usually ships in 3-10 days

0

2

RedMax 526058601

SHAFT COMP

$30.99

$

Usually ships in 3-10 days

0

3

RedMax 526059001

GEARCASE
(Superseded to 512556201)

$241.99

$

In Stock, only 1 left!

0

4

RedMax 512556001

GEARCASE

$78.99

$

Usually ships in 3-10 days

0

5

RedMax 521425101

HOLDER B
(Superseded to 515537501)

$10.99

$

Usually ships in 3-10 days

0

6

RedMax 521425001

HOLDER A
(Superseded to 515537401)

$30.99

$

Usually ships in 3-10 days

0

7

RedMax 521424801

SHAFT
(Superseded to 515537201)

$42.99

$

Usually ships in 3-10 days

0

8

RedMax 512556101

PINION

$72.99

$

Usually ships in 3-10 days

0

9

RedMax 521424901

GEAR
(Superseded to 515537301)

$34.99

$

Usually ships in 3-10 days

0

10

RedMax 510569701

BEARINGxxx

$14.99

$

In Stock, only 1 left!

0

11

RedMax 521424601

BEARING
(Superseded to 515537001)

$12.99

$

Usually ships in 3-10 days

0

12

RedMax 504121001

RING

$3.99

$

In Stock, only 2 left!

0

13

RedMax 505169301

BEARING

$8.99

$

In Stock, only 3 left!

0

14

RedMax 505169201

BEARING (RPLS T3

$9.99

$

In Stock, Qty 5

0

15

RedMax 504121001

RING

$3.99

$

In Stock, only 2 left!

0

16

RedMax 521821801

SNAP RING

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 521804001

NUT

$4.99

$

In Stock, Qty 7

0

18

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

19

RedMax 505171601

WASHER, M6 x .8

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 526059101

BOLT

$7.49

$

Usually ships in 3-10 days

0

21

RedMax 516070301

BOLT, M5 x 10
(Superseded to 505173901)

$4.99

$

In Stock, only 1 left!

0

24

RedMax 574390301

GRIP ASSY
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

25

RedMax 576475201

GRIP, HALF SET
(Superseded to 576475202)

$31.99

$

In Stock, only 2 left!

0

26

RedMax 529258801

LEVER, THROTTLE

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 2 left!

0

28

RedMax 529259001

LEVER FOR GRIP (
(Superseded to 578778001)

$4.99

$

In Stock, only 1 left!

0

29

RedMax 574390801

SPRING

$3.49

$

Usually ships in 3-10 days

0

30

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

31

RedMax 521851601

SWITCH

$11.99

$

In Stock, only 3 left!

0

32

RedMax 521517701

SCREW

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 529257101

CABLE-C

$12.99

$

In Stock, only 2 left!

0

34

RedMax 529256101

CORD - C

$7.49

$

In Stock, only 1 left!

0

35

RedMax 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

36

RedMax 529259401

BAND

$10.99

$

In Stock, only 1 left!

0

37

RedMax 521345401

BOLT (RPLS 28501
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

38

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

41

RedMax 576623701

NAMEPLATE

$5.76

$

Usually ships in 3-10 days

0

42

RedMax 526056401

HANDLE ASSY. (RP

$26.99

$

In Stock, only 3 left!

0

43

RedMax 512553501

HANDLE T

$

$

Not available

44

RedMax 521863101

SCREW

$3.49

$

In Stock, Qty 11

0

51

RedMax 510983101

GUARD ASSY

$169.99

$

Usually ships in 3-10 days

0

52

RedMax 510981001

Guard
(Superseded to 510981002)

$68.99

$

In Stock, only 1 left!

0

53

RedMax 505171801

BOLT (M5x0.8-16)

$7.49

$

In Stock, only 2 left!

0

54

RedMax 505171901

PLATE

$10.99

$

In Stock, only 2 left!

0

55

RedMax 526059401

PROTECTOR

$9.99

$

In Stock, Qty 20+

0

56

RedMax 505171801

BOLT (M5x0.8-16)

$7.49

$

In Stock, only 2 left!

0

57

RedMax 516116401

NUT, M5 x 4
(Superseded to 506609201)

$4.99

$

In Stock, only 2 left!

0

58

RedMax 505172501

WHEEL (RPLS T305

$42.99

$

In Stock, only 2 left!

0

59

RedMax 526059601

BOLT

$8.99

$

In Stock, only 2 left!

0

60

RedMax 505172901

WASHER, SPRING(T

$4.99

$

In Stock, only 2 left!

0

61

RedMax 516078701

WASHER
(Superseded to 505173001)

$4.99

$

In Stock, Qty 5

0

62

RedMax 527068601

NUT

$15.99

$

In Stock, only 2 left!

0

63

RedMax 505173301

SLEEVE

$12.99

$

In Stock, only 3 left!

0

64

RedMax 526059501

BRACKET

$9.99

$

In Stock, only 4 left!

0

65

RedMax 505173601

PLATE

$7.49

$

In Stock, Qty 8

0

66

RedMax 505173701

RUBBER (FLAP)

$15.99

$

In Stock, Qty 13

0

67

RedMax 516070301

BOLT, M5 x 10
(Superseded to 505173901)

$4.99

$

In Stock, only 1 left!

0

69

RedMax 521453001

BLADE, EDGER (RP

$4.99

$

In Stock, Qty 20+

0
