HE 2200 LDC - RedMax Edger (1996-06) 018 - ENGINE GROUP Parts Diagram

Edger

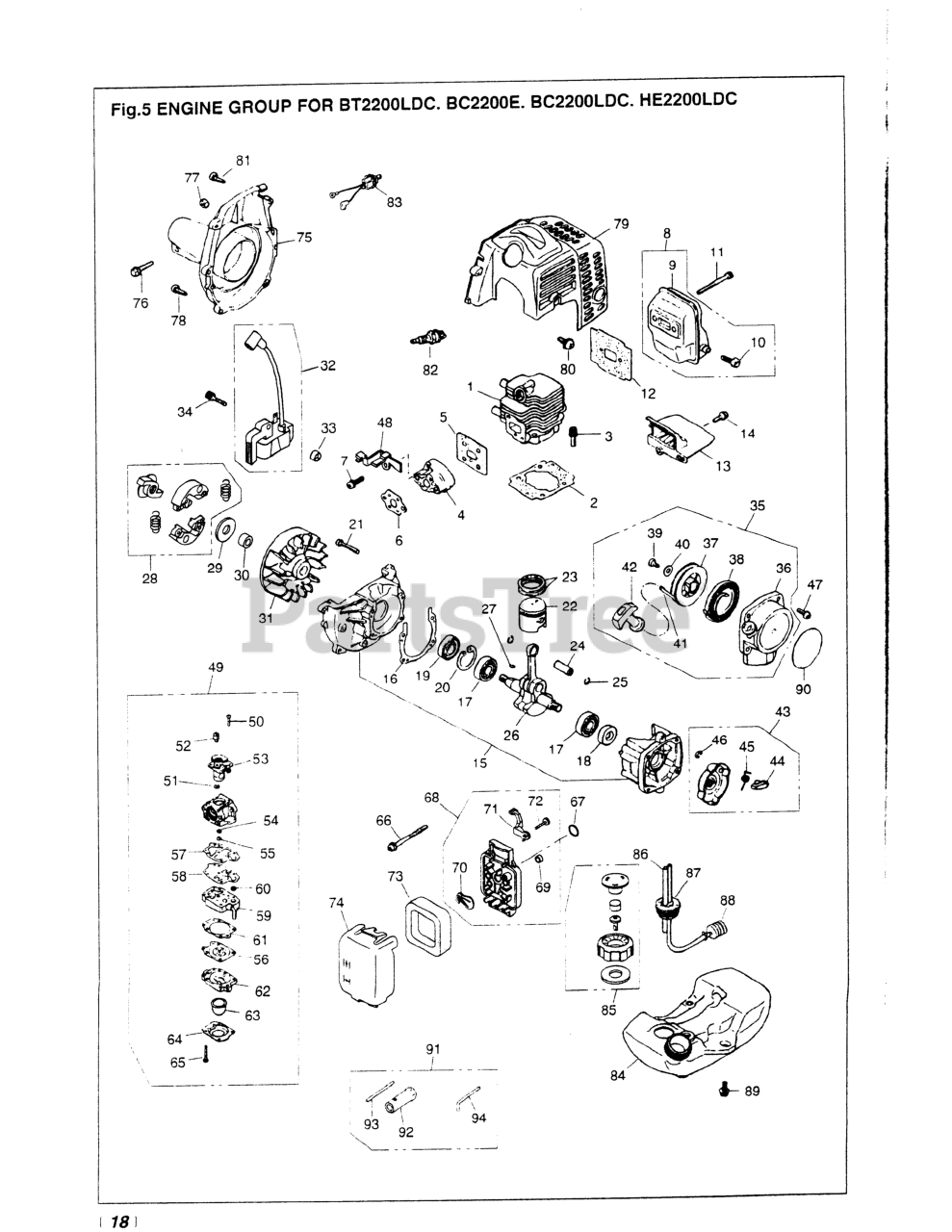

018 - ENGINE GROUP Parts Diagram

  • Title

1

RedMax 585012110

CYLINDER
(Superseded to 521388101)

$76.99

$

Usually ships in 3-10 days

0

2

RedMax 550012211

5500-12212
(Superseded to 515408801)

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 185012130

BOLT, M5 X 22
(Superseded to 516537401)

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 585013160

181707

$

$

Not available

5

RedMax 585013120

181708

$

$

Not available

6

RedMax 585013130

181709

$

$

Not available

7

RedMax 585013210

182147

$

$

Not available

8

RedMax 585015100

MUFFLER ASSY (RPLS 5501- )
(Superseded to 521388601)

$

$

Not available

9

RedMax 585015110

5850-15100
(Superseded to 521388601)

$

$

Not available

10

RedMax 585015140

1601-15120
(Superseded to 513351501)

$10.99

$

Usually ships in 3-10 days

0

11

RedMax 585015130

181713

$

$

Not available

12

RedMax 585015210

181714

$

$

Not available

13

RedMax 585015220

181715

$

$

Not available

14

RedMax 585015230

181716

$

$

Not available

15

RedMax 585021100

CRANKCASE (NLA)

Note: Context Note: @ÿ

$

$

Not available

16

RedMax 550021140

5500-21141
(Superseded to 515412401)

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 0603006001

BEARING
(Superseded to 523071701)

$12.99

$

In Stock, only 3 left!

0

18

RedMax 216921210

SEAL, OIL (RPLS 1100-21210)
(Superseded to 513488701)

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 185021220

SEAL, OIL (RPLS 1140-21220)
(Superseded to 506612901)

$6.49

$

In Stock, only 2 left!

0

20

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

21

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

22

RedMax 560041111

PISTON (REPLACES 1140-41110)
(Superseded to 515444401)

$28.99

$

Usually ships in 3-10 days

0

23

RedMax 110041210

RING, PISTON (RPLS 1850-41210)
(Superseded to 510917501)

$6.49

$

In Stock, Qty 16

0

24

RedMax 110141310

PIN, PISTON 5x8x26
(Superseded to 513179501)

$4.99

$

Usually ships in 3-10 days

0

25

RedMax 126041320

RING, SNAP (RPLS 1101-41320)
(Superseded to 505045201)

$4.99

$

In Stock, Qty 11

0

26

RedMax 585042000

CRANKSHAFT COMP.

$93.24

$

Usually ships in 3-10 days

0

27

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 585051100

181730

$

$

Not available

29

RedMax 585051210

181074

$

$

Not available

30

RedMax 585051220

181731

$

$

Not available

31

RedMax 585071110

5850-71111
(Superseded to 585071111)

$37.83

$

Usually ships in 3-10 days

0

32

RedMax 585071200

COIL
(Superseded to 521390301)

$

$

Not available

33

RedMax 126071261

SPACER (RPLS -71260)
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 585072160

181735

$

$

Not available

35

RedMax 585075100

181777

$

$

Not available

36

RedMax 585075110

181737

$

$

Not available

37

RedMax 585075120

181738

$

$

Not available

38

RedMax 585075130

181739

$

$

Not available

39

RedMax 585075140

181740

$

$

Not available

40

RedMax 140086280

WASHER (USE 181741)
(Superseded to 574053601)

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 585075150

181742

$

$

Not available

42

RedMax 585075160

181743

$

$

Not available

43

RedMax 585075200

182118

$

$

Not available

44

RedMax 585075220

181745

$

$

Not available

45

RedMax 585075230

181746

$

$

Not available

46

RedMax 030800040

RING, SNAP, M4
(Superseded to 574054101)

$4.99

$

Usually ships in 3-10 days

0

47

RedMax 585015230

181716

$

$

Not available

48

RedMax 585083220

181748

$

$

Not available

49

RedMax 585081000

181749

$

$

Not available

50

RedMax 585081110

181750
(Superseded to 181750)

$2.99

$

Usually ships in 3-10 days

0

51

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

53

VALVE ASSY

$

$

Not available

54

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

55

RedMax 551681250

JET
(Superseded to 521368901)

$18.99

$

Usually ships in 3-10 days

0

56

RedMax 331081260

DIAPHRAGM (USE 4810-81260)
(Superseded to 505056401)

$17.99

$

In Stock, only 1 left!

0

57

RedMax 106581410

GASKET, PUMP
(Superseded to 516160601)

$

$

Not available

58

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$6.49

$

In Stock, Qty 5

0

59

RedMax 185081450

BODY, PUMP
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

60

RedMax 330681380

SCREEN

$1.22

$

Usually ships in 3-10 days

0

61

RedMax 185081470

GASKET, DIAPHRAGM
(Superseded to 506740801)

$10.99

$

In Stock, only 3 left!

0

62

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

63

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

64

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

65

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

66

RedMax 585082310

181750

$

$

Not available

67

RedMax 585083110

181751

$

$

Not available

68

RedMax 585082100

181752

$

$

Not available

69

SLEEVE

$

$

Not available

70

PLATE, CHOKE

$

$

Not available

71

LEVER

$

$

Not available

72

SCREW

$

$

Not available

73

RedMax 585082170

181757

$

$

Not available

74

RedMax 585082210

181758

$

$

Not available

75

RedMax 585031100

181776

$

$

Not available

76

RedMax 022530635

BOLT, M6x35 (RPLS -50635)

$

$

Not available

77

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

78

RedMax 585013210

182147

$

$

Not available

79

RedMax 585032110

181779

$

$

Not available

80

RedMax 585015230

181716

$

$

Not available

81

RedMax 585032170

181764

$

$

Not available

82

RedMax 560273110

3699-90419-10
(Superseded to 514441301)

$18.99

$

Usually ships in 3-10 days

0

83

RedMax 585072210

SWITCH COMP
(Superseded to 521390501)

$

$

Not available

84

RedMax 585085110

181774

$

$

Not available

85

RedMax 585085200

180000

$

$

Not available

86

RedMax 585085320

181168

$

$

Not available

87

RedMax 585085330

181778
(Superseded to 515487101)

$3.49

$

Usually ships in 3-10 days

0

88

RedMax 585085400

181775

$

$

Not available

89

RedMax 585085510

181768

$

$

Not available

90

RedMax 585091120

181780

$

$

Not available

91

RedMax 585091000

TOOL SET

$4.93

$

Usually ships in 3-10 days

0

92

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

93

RedMax 358291330

BAR

$0.78

$

Usually ships in 3-10 days

0

94

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0
