HDP 3-A (UT-01604-A) - Homelite Pump Roll Cage - Lower Pump Body Parts Diagram

Pump

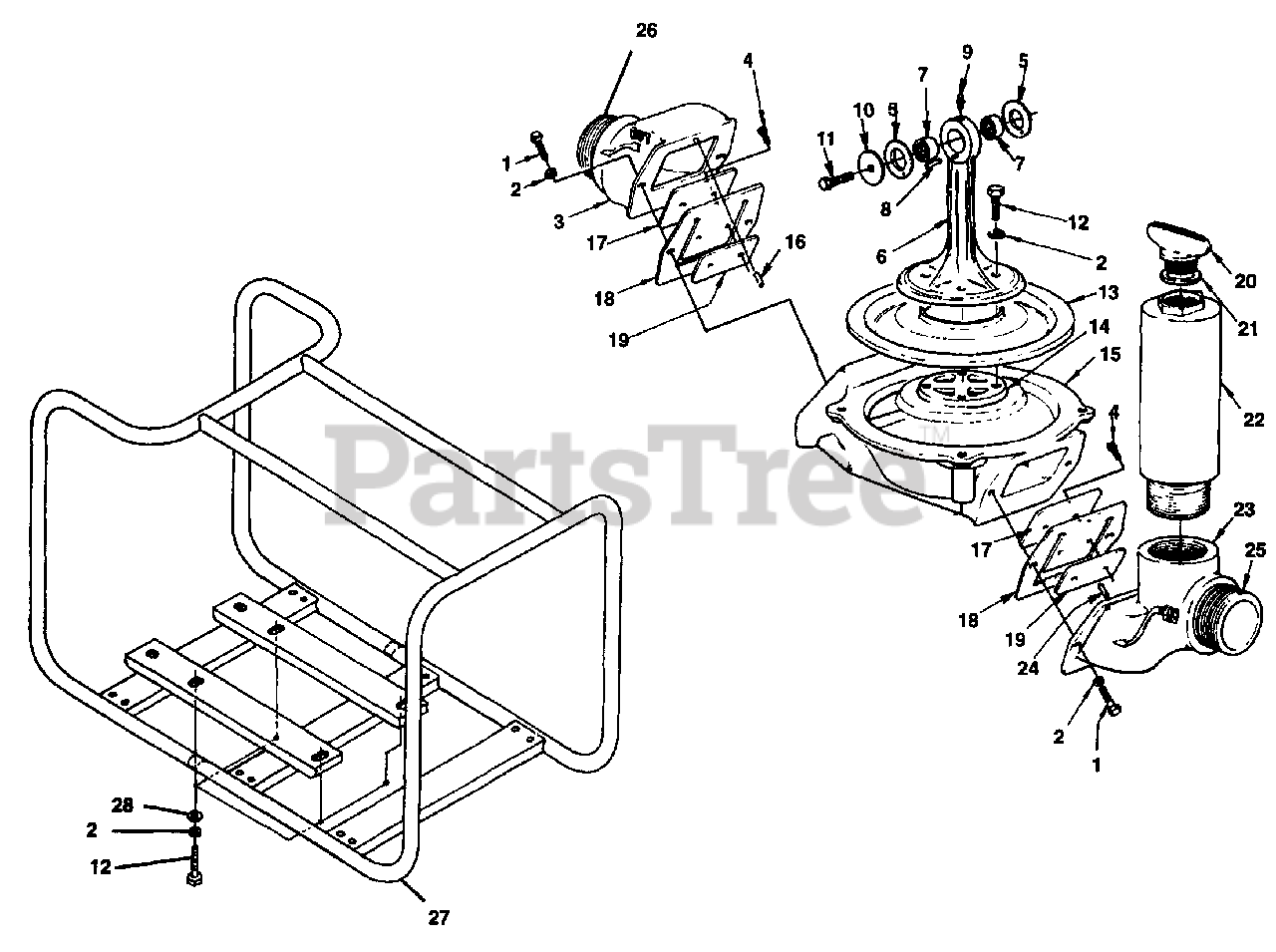

Roll Cage - Lower Pump Body Parts Diagram

  • Title
1

Homelite 80627

SCREW, Hex hd. (1/2-13 X 1 3/4)

Note: Torque to 150-180 In/Lbs 16.9-20.3 Nm

$

$

Not available

2

Homelite 83020

WASHER, Lock (1/2")

$

$

Not available

3

Homelite 738743A

FITTING-Discharge
(Superseded to UP07084)

$

$

Not available

4

Homelite 80393

SCREW, fil hd., 10-32 x 1/2 4

Note: Torque to 7-9 In/Lbs .8-1.0 Nm

$

$

Not available

5

Homelite 73856

WASHER, thrust

$

$

Not available

6

Homelite A74339

PUMP ROD
(Superseded to UP07042)

Note: Includes: Items 7 - 9

$

$

Not available

7

Homelite 74121

BEARING, needle
(Superseded to 74121S)

$

$

Not available

8

Homelite 76982

PIN-Coiled spring

$

$

Not available

9

Homelite 32409

GREASE FITTING

$

$

Not available

10

$

$

Not available

11

Homelite 80171

SCREW, hex hd., 3/8-16 x 3/4

Note: Torque to 150-180 In/Lbs 16.9-20.3 Nm

$

$

Not available

12

Homelite 80272

SCREW, hex hd., 1/2-13 x 1 1/4

Note: Torque to 290-310 In/Lbs 32.8-35.0 Nm

$

$

Not available

13

Homelite 03438

DIAPHRAGM

$

$

Not available

14

Homelite 73706

PLATE, diaphragm
(Superseded to UP06442)

$

$

Not available

15

Homelite A74313

PUMP BODY
(Superseded to UP07041)

Note: Includes: Item 16

$

$

Currently unavailable

16

Homelite 54890

PIN-Roll
(Superseded to 548901)

$

$

Not available

17

Homelite 74156

VALVE, plate

$

$

Not available

18

Homelite 741541

VALVE, flapper
(Superseded to UP06449)

$

$

Not available

19

Homelite 74155

WEIGHT, valve
(Superseded to UP06450)

$

$

Not available

20

Homelite A43971

PLUG-Wing

Note: Includes: Item 21

$

$

Not available

21

Homelite 18108

PLUG GASKET

$

$

Not available

22

Homelite 743443A

STANDPIPE - 3"

$

$

Not available

23

Homelite A74348

SUCTION FITTING

Note: Includes: Item 24

$

$

Currently unavailable

24

Homelite 548901

PIN, roll

$

$

Not available

25

Homelite 743431

NIPPLE - 3"

$

$

Not available

26

Homelite 079821

NIPPLE - 3"

$88.99

$

Usually ships in 3-7 days

0

27

Homelite A07961

ROLL CAGE
(Superseded to UP07123)

$

$

Not available

28

Homelite 84035

WASHER FLAT 1/2"

$

$

Not available

Homelite 54639

COUPLING - Hose 3"

Note: Accessory

$

$

Not available

Homelite 746761

FITTING - Pipe 3" (NPT to British)

Note: Accessory

$

$

Currently unavailable

Homelite A48445

STRAINER W/FOOT VALVE - Use for solids

Note: Accessory

$

$

Not available
