HDP 2-B (UT-01603-A) - Homelite Pump Roll Cage - Lower Pump Body Parts Diagram

Pump

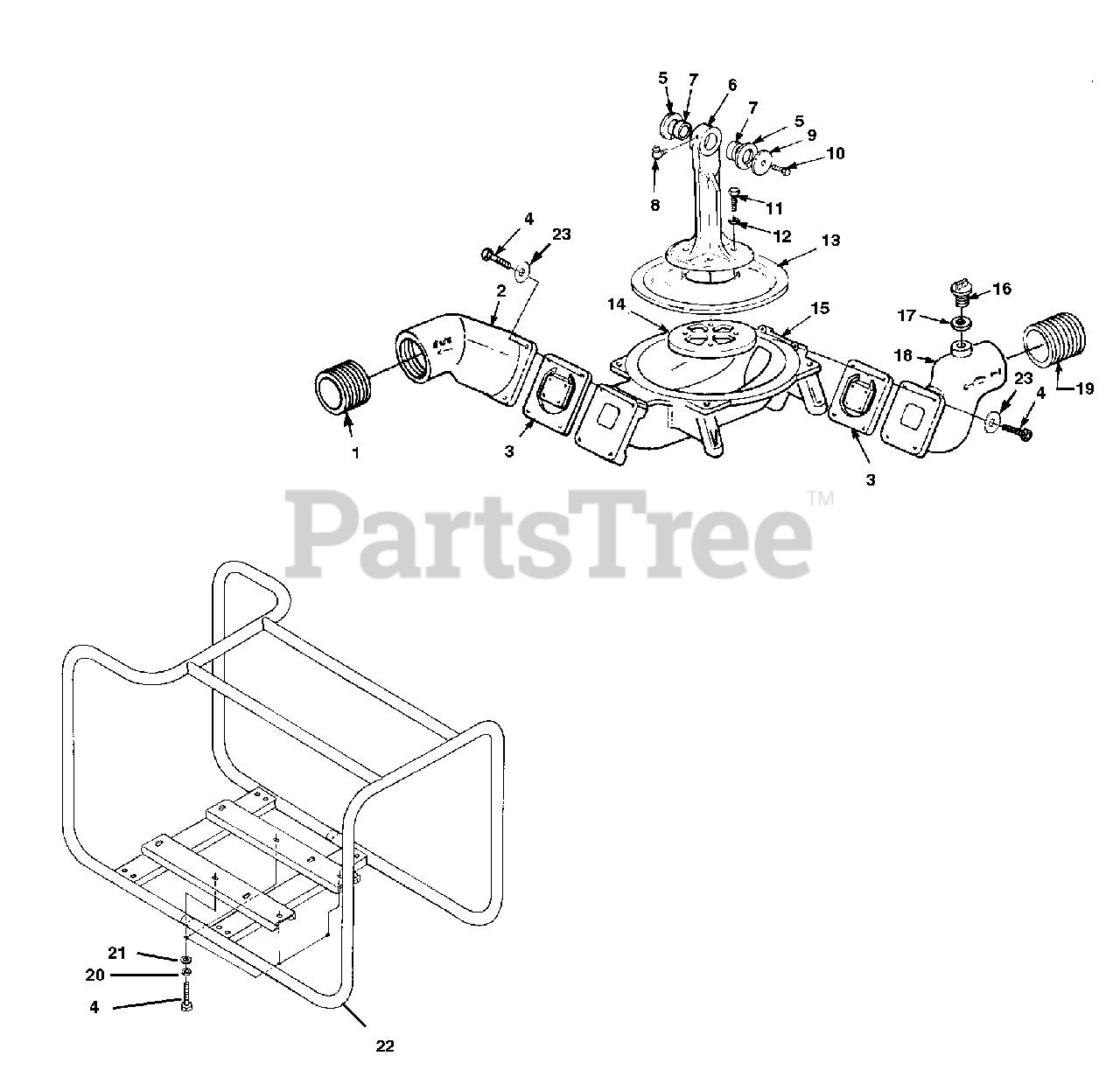

Roll Cage - Lower Pump Body Parts Diagram

  • Title
1

Homelite 079811

FITTING - Pipe

$

$

Currently unavailable

2

Homelite 504662A

FITTING - Discharge
(Superseded to UP07086)

$450.99

$

Usually ships in 3-7 days

0

3

Homelite A42147

VALVE AND INSERT

Note: Includes Ref. #4.

$

$

Not available

Homelite 42148

SPACER

Note: (Not shown)

$

$

Not available

4

Homelite 80085

SCREW, Hex hd., (5/16-18 x 1")

Note: Torque Specs 150-180 In.Lbs, 16.9-20.3 Nm

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 50483

WASHER - Thrust, large

$

$

Not available

6

Homelite A51221

PUMP ROD

Note: Includes Ref. #7 & 8

$

$

Not available

7

Homelite 74121S

BEARING - Needle

$

$

Not available

8

Homelite 50911

FITTING - Grease
(Superseded to UP07208)

$

$

Not available

Homelite 76982

PIN

Note: (Not Shown)

$

$

Not available

9

$

$

Not available

10

Homelite 80171

SCREW, hex hd., 3/8-16 x 3/4

Note: Torque Specs 150-180 In.Lbs, 16.9-20.3 Nm

$

$

Not available

11

Homelite 80095

SCREW, hex hd., 3/8-16 x 1"

Note: Torque Specs 150-180 In.Lbs, 16.9-20.3 Nm

$

$

Not available

12

Homelite 83018

WASHER - Lock (3/8")

$

$

Not available

13

Homelite 03439

DIAPHRAGM
(Superseded to UP06374)

$

$

Not available

14

Homelite 504791

CAP - Diaphragm

$

$

Not available

15

Homelite A51223

BODY - Pump (lower)
(Superseded to UP07047)

Note: Includes Pin, P/N 548901.

$

$

Not available

Homelite 548901

PIN

Note: (Not Shown)

$

$

Not available

16

Homelite A43896

PLUG - Filler
(Superseded to UP07092)

$

$

Currently unavailable

17

$

$

Not available

18

Homelite A51222

FITTING - Suction
(Superseded to UP07085)

Note: Includes Pin P/N 548901.

$

$

Not available

Homelite 548901

PIN

Note: (Not Shown)

$

$

Not available

19

Homelite 756631

FITTING - Pipe
(Superseded to UP03807)

$

$

Not available

20

Homelite 83030

WASHER - Lock (5/16")

$

$

Not available

21

Homelite 84001

WASHER - Flat (5/16")

$

$

Not available

22

Homelite A07966

ROLL CAGE

$

$

Currently unavailable

23

Homelite 83003

WASHER - Lock (5/16")
(Superseded to UP03791)

$

$

Not available
