HD6000 (9093-0) - Generac 4,000 Watt Portable Generator Panel No. 75990 Parts Diagram

4,000 Watt Portable Generator

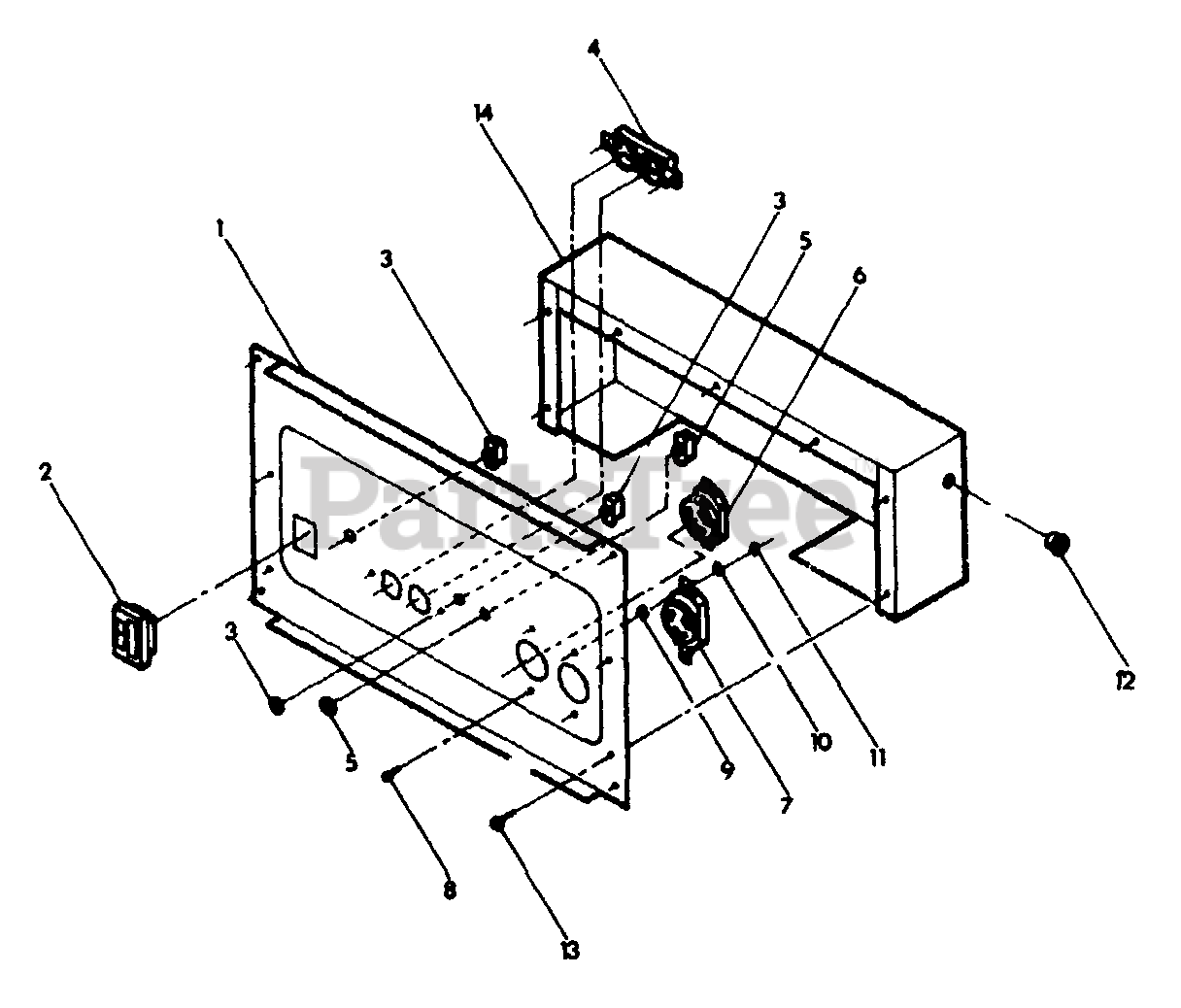

Panel No. 75990 Parts Diagram

  • Title

1

Briggs & Stratton 76261

PANEL, RECEPTACLE

$

$

Currently unavailable

2

Briggs & Stratton 68817

ENGINE SWITCH & POWER ON LAMP

$

$

Currently unavailable

3

Briggs & Stratton 75207

BREAKER, CIRCUIT-20AMP
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 19

0

4

Briggs & Stratton 68759

RECEPTACLE-120 VOLTS, 20AMP. DUPLEX TYPE
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 10

0

5

75207A

BREAKER, CIRCUIT-30AMP

$

$

Not available

6

Briggs & Stratton 68868

RECEPTACLE, 120 VOLTS, 30AMP
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68867

RECEPTACLE-120/240 VOLTS, 20AMP
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 36917

SCREW-NO. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 23365

WASHER, SERRATED-NO. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22264

LOCKWASHER-NO. 8

$

$

Not available

11

Briggs & Stratton 22471

NUT, HEX-NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 65511

PLUG BUTTON-1/2

$

$

Currently unavailable

13

Briggs & Stratton 63036

SCREW (CRIMPTITE)-NO. 8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 68746A

PANEL

$

$

Currently unavailable

Briggs & Stratton 37806

PLUG, CONNECTOR-120 VOLTS, 30AMP
(Superseded to 100523GS)

Note: NOT SHOWN-USE WITH ITEM 6 (NEMA L5-30P)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, CONNECTOR-120/240 VOLTS, 20AMP
(Superseded to 100522GS)

Note: NOT SHOWN-USE WITH ITEM 7 (NEMA L14-20P)

$34.99

$

Usually ships in 2-12 days

0
