HD3000 (9092-1) - Generac 2,500 Watt Portable Generator A-C Generator No. 75988 Parts Diagram

2,500 Watt Portable Generator

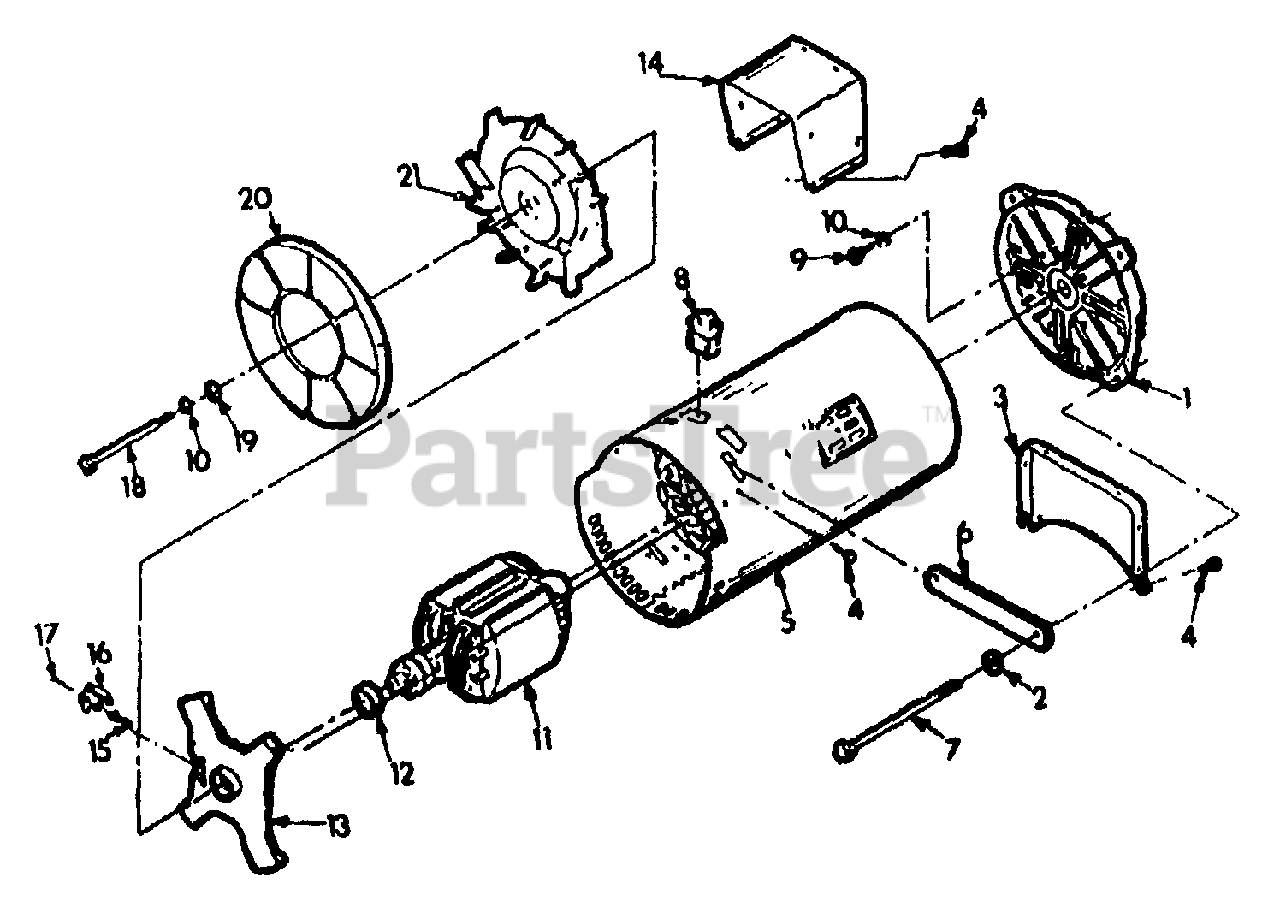

A-C Generator No. 75988 Parts Diagram

  • Title

1

Briggs & Stratton 49400A

HOUSING, ENGINE ADAPTER

$

$

Not available

2

Briggs & Stratton 22097

WASHER, LOCK-1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 43874

BACK, PANEL SHROUD
(Superseded to 7043874YP)

$34.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 24489

SCREW(TAPTITE)NO.10-32 X 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 74172

STATOR ASSEMBLY

$

$

Not available

6

Briggs & Stratton 44338

BAR, STATOR BOLT

$

$

Currently unavailable

7

Briggs & Stratton 44395A

BOLT, STATOR

$

$

Currently unavailable

8

Briggs & Stratton 28293

RECTIFIER ASSEMBLY, BRIDGE

$

$

Currently unavailable

9

Briggs & Stratton 22336

CAPSCREW, HEX HEAD-5/16"-24 X 3/4"

$

$

Not available

10

Briggs & Stratton 22129

WASHER, LOCK-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 68784

ROTOR ASSEMBLY

$

$

Currently unavailable

12

Briggs & Stratton 24049

BEARING, ROTOR

$

$

Not available

13

Briggs & Stratton 44943

CARRIER, BEARING

$

$

Currently unavailable

14

Briggs & Stratton 43875

SHROUD, PANEL
(Superseded to 7043875YP)

$110.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 23877D

HOLDER BRUSH
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 25105

SCREW (SIMS)NO. 6-32 X 1/4
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 24421

BOLT, ROTOR
(Superseded to 24421GS)

$18.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 50190

WASHER, FAN RETAINER
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 44357

COVER, COOLING FAN
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 44331

FAN, COOLING

$

$

Not available
