HD R500 K - Poulan Rear-Tine Tiller (2001-02) Main Frame, Right Side Parts Diagram

Rear-Tine Tiller

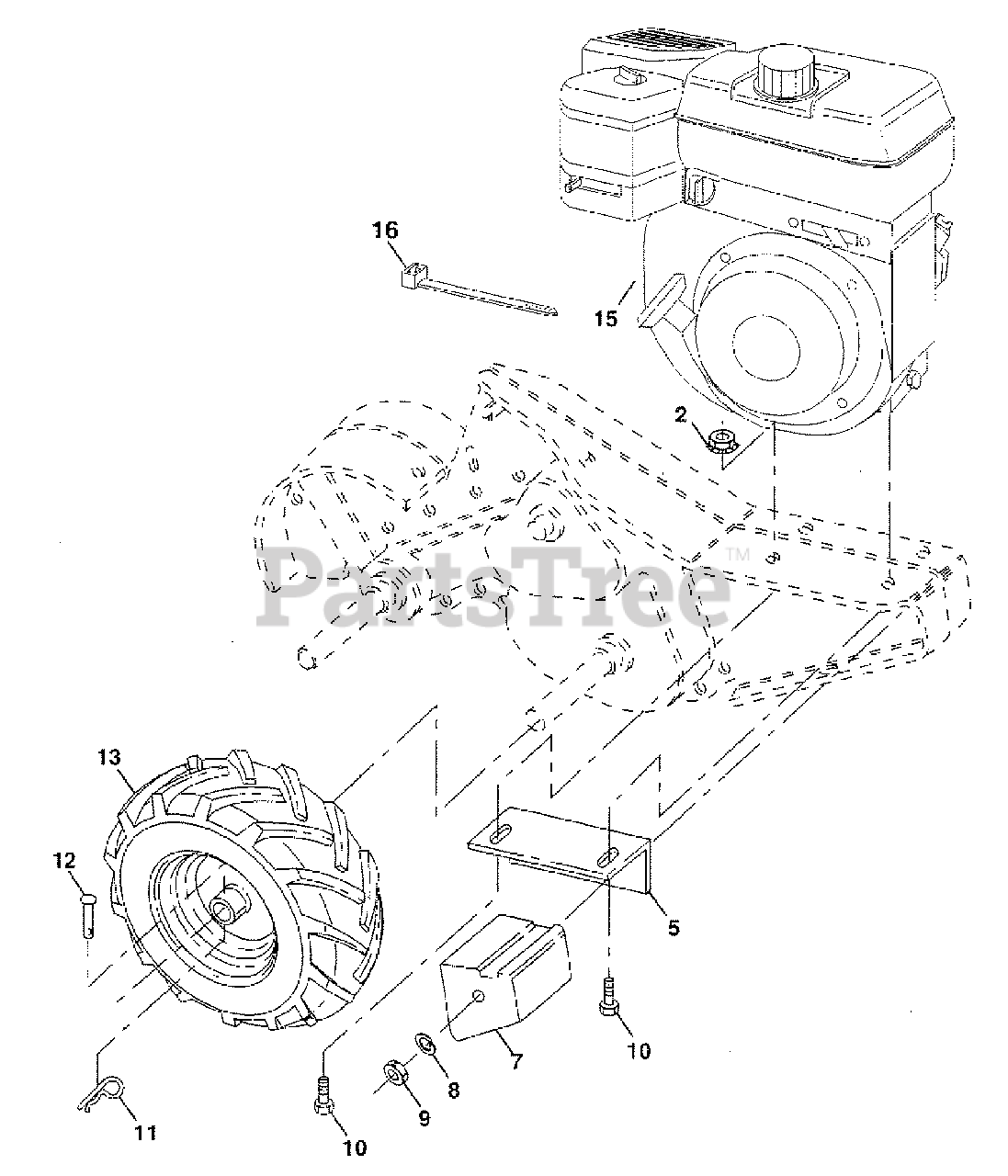

Main Frame, Right Side Parts Diagram

  • Title

2

Electrolux/AYP 73970500

Nut, Lock Hex Flg
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 102332X

Bracket, Reinforcement
(Superseded to 532102332)

$

$

Not available

7

Electrolux/AYP 102173X

Counter Weight, R.H.
(Superseded to 532102173)

$42.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 73220600

Nut, Hex 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 74760524

Bolt, Hex 5/16-18x1-1/2

$2.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 4497H

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 126875X

Rivet, Drilled
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 102190X

Tire
(Superseded to 532102190)

$93.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 150750

Rim

$

$

Not available

13

Electrolux/AYP 795R

Tire Valve

$

$

Not available

15

Engine, Briggs Model 110402 (Orderpartsfrom engine manufacturer)

$

$

Not available

16

Electrolux/AYP 7192 J

Tie Cable

$9.49

$

Usually ships in 3-10 days

0
