HD R500 E - Poulan Rear-Tine Tiller (1997) MAINFRAME(LEFT SIDE) Parts Diagram

Rear-Tine Tiller

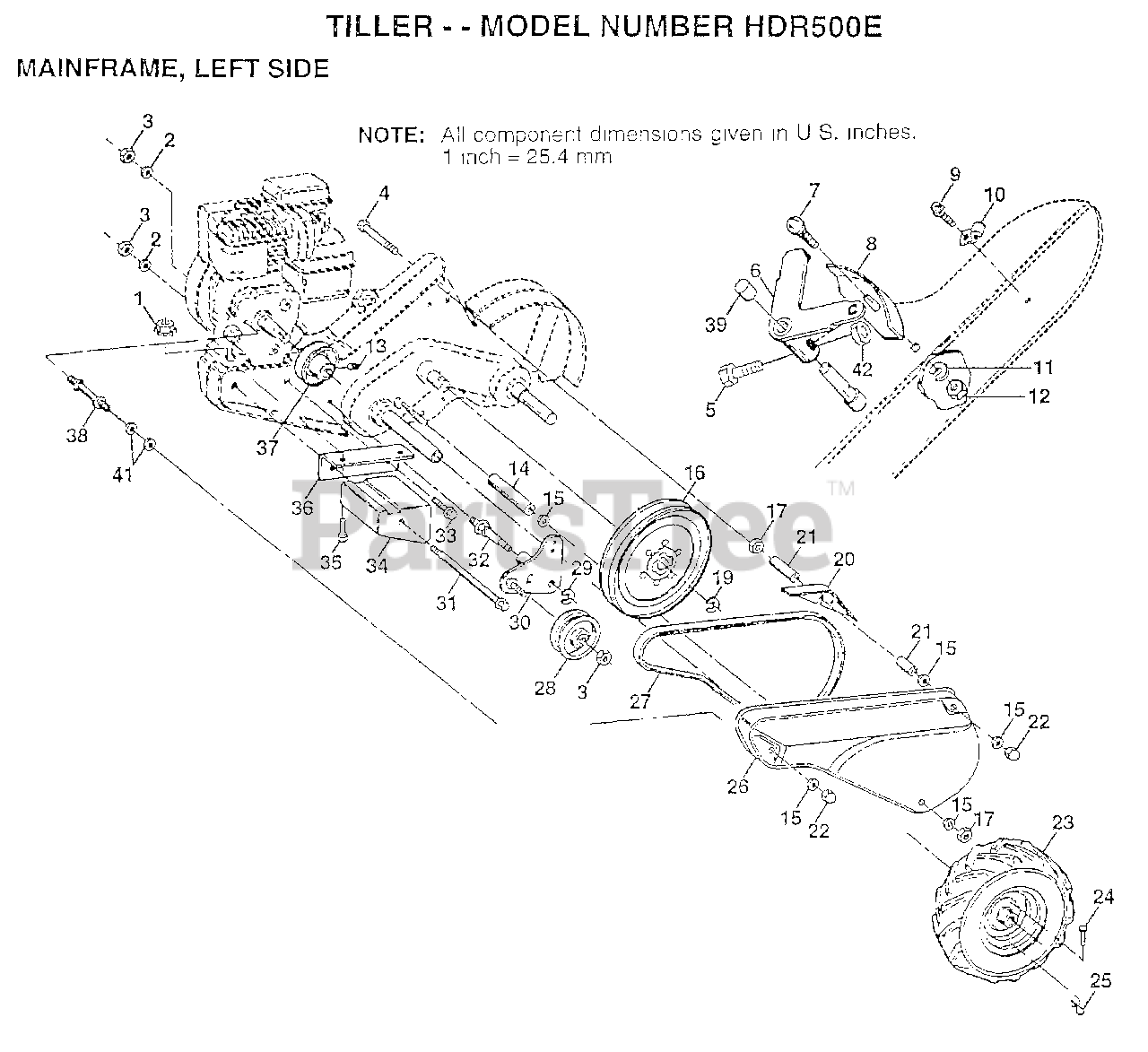

MAINFRAME(LEFT SIDE) Parts Diagram

  • Title

$2.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 74930568

BOLT TI
(Superseded to 874930568)

$

$

Not available

5

Electrolux/AYP 154734

"SCREW-LEVER,SHI"

$

$

Not available

6

Electrolux/AYP 110111X

LEVER ASM CRT
(Superseded to 532110111)

$18.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 72110404

BOLT
(Superseded to 872110404)

$9.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 8700J

PANEL TI
(Superseded to 532008700)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 86777

SUB= 750097
(Superseded to 532086777)

$

$

Not available

10

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

11

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 23230506

SET SCREW
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 120938X

SPACER
(Superseded to 532120938)

$

$

Not available

15

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

16

Electrolux/AYP 145102

SHEAVE.TRANS.
(Superseded to 532145102)

$68.99

$

In Stock, only 3 left!

0

17

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

20

Electrolux/AYP 110653X

GUARD CRT
(Superseded to 532110653)

$

$

Not available

21

Electrolux/AYP 145216

SPACER.SPLIT

$

$

Not available

22

Electrolux/AYP 104214X

NUT TI
(Superseded to 532104214)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 102190X

TIRE.CHV.13X5.0-6
(Superseded to 532102190)

$93.99

$

Usually ships in 3-10 days

0

23A

Electrolux/AYP 150750

SUB= 150750X427

$

$

Not available

23B

Electrolux/AYP 795R

SUB= 65139

$

$

Not available

24

Electrolux/AYP 126875X

RIVET.DRILL.1.75
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

25

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

$

$

Not available

27

Electrolux/AYP 132672

BELT-V
(Superseded to 532132672)

$37.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 104679X

PULLEY-IDLER TI
(Superseded to 532104679)

$18.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 12000032

KLIP RING
(Superseded to 812000032)

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 105611X

SUB= 918105611X
(Superseded to 532159229)

$

$

Not available

31

Electrolux/AYP 102384X

BOLT CRT
(Superseded to 532102384)

$9.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 102141X

SHIFT ARM CRT
(Superseded to 532102141)

$7.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 102383X

COUNTERWEIGHT CRT
(Superseded to 532102383)

$133.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 102331X

BRACKET LH CRT
(Superseded to 532102331)

$13.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 130816

ENGINE SHEAVE
(Superseded to 532130816)

$48.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 145822

STUD.GUARD.BELT
(Superseded to 532145822)

$6.49

$

In Stock, only 1 left!

0

39

Electrolux/AYP 140062

CAP PLUNGER BLACK
(Superseded to 532140062)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 19111610

WASHER
(Superseded to 819111610)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0
