HD F900 (960820013-00) - Poulan Pro Tiller (2009-03) Handle Assembly Parts Diagram

Tiller

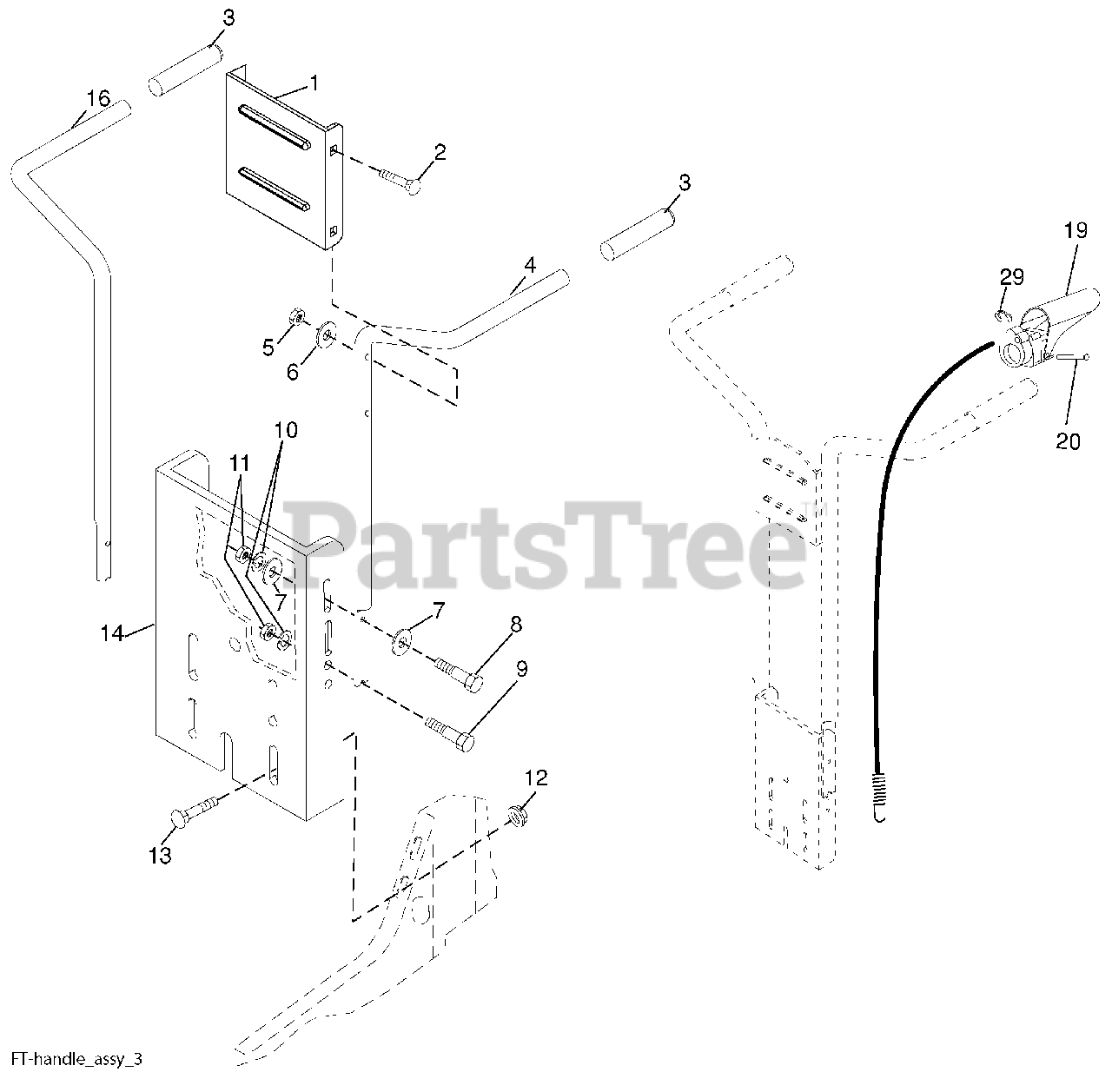

Handle Assembly Parts Diagram

  • Title

1

Electrolux/AYP 137176X428

Bracket, Handle
(Superseded to 532440652)

$

$

Not available

2

Electrolux/AYP 72140512

Bolt, Carriage 5/16-18 x 1-1/2
(Superseded to 582736101)

$

$

Not available

3

Electrolux/AYP 165787

Grip, Handle
(Superseded to 532165787)

$6.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 166376

Handle, L.H.
(Superseded to 532446013)

$46.99

$

Usually ships in 3-10 days

0

5

Murray 73680500

Nut, Hex, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74760520

Bolt, Hex Head 5/16-18 x 1-1/4

$2.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 74760516

Bolt, Hex Head 5/16-18 x 1

$

$

Not available

10

Electrolux/AYP 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 98000129

Nut, Hex, Flanged 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

13

Electrolux/AYP 180847

Bolt, Carriage, Gr. 5 5/16-18 x 3/4
(Superseded to 532180847)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 9209R428

Panel, Handle
(Superseded to 583780101)

$11.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 166377

Handle, R.H.

$

$

Not available

19

Electrolux/AYP 188562

Tine Control Lever Assembly
(Superseded to 532188562)

Note: (Includes Cable)

$53.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 188555

Pin, Pivot
(Superseded to 532188555)

$6.49

$

In Stock, only 3 left!

0

29

Electrolux/AYP 12000059

Retaining Ring
(Superseded to 582730101)

$6.49

$

In Stock, only 3 left!

0
