HD F800 X (960820011-01) - Poulan Pro Tiller (2009-02) Belt Guard And Pulley Assembly Parts Diagram

Tiller

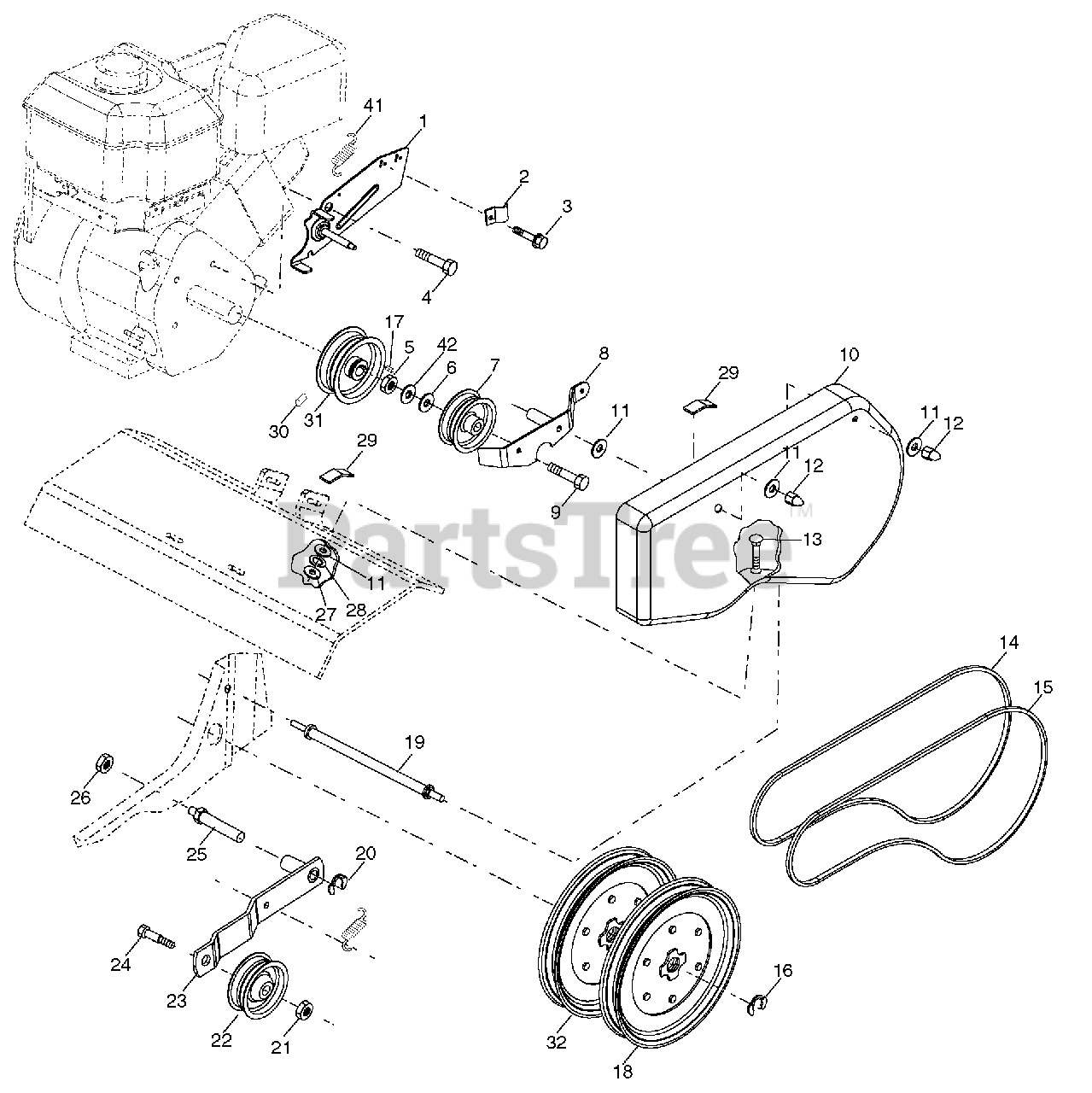

Belt Guard And Pulley Assembly Parts Diagram

  • Title

1

Electrolux/AYP 180377

Bracket Assembly, Belt Guard
(Superseded to 532446043)

$

$

Not available

2

Electrolux/AYP 9484R

Clip, Cable
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 86777

Screw, Hex Washer Head, Slotted, Thread Cutting #10-24 x 1/2
(Superseded to 532086777)

$

$

Not available

4

Electrolux/AYP 74610812

Bolt, Hex Head 1/2-20 x 3/4
(Superseded to 583614001)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 73680600

Locknut, Hex 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 19131316

Washer, 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 2009J

Pulley, Idler, Reverse
(Superseded to 583728401)

$17.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 180323

Reverse Idler Arm Assembly
(Superseded to 532180323)

$17.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 74760628

Bolt, Hex Head 3/8-16 x 1-3/4

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 194630X428

Guard, Belt
(Superseded to 532418893)

$40.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 19091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 104213X

Nut, Hex, Cap 1/4-20
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 72140406

Bolt, Carriage 1/4-20 x 3/4
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 133035

V-Belt (Forward Motion)
(Superseded to 532133035)

$42.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 2614J

V-Belt (Reverse)
(Superseded to 599385301)

$17.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 12000028

Ring, Retainer
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

17

Electrolux/AYP 2649M

Key, Square
(Superseded to 532002649)

$6.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 151236

Pulley, Flat, Transmission
(Superseded to 532151236)

$34.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 188502

Bolt, Belt Guard
(Superseded to 532188502)

$10.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 12000036

Ring, Klip
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 73350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 161806

Pulley, Idler
(Superseded to 532161806)

$31.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 175377

Arm, Idler

$4.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74760620

Bolt, Hex Head 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 106968X

Shaft, Idler Arm
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73350500

Nut, Hex, Jam 5/16-18
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 73220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 10040400

Washer, Lock, HH Spring 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 109227X

Pad, Idler
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 23200404

Set Screw, Headless, C.P.1/4-20 x 1/4
(Superseded to 583610201)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 101189L

Sheave, Engine
(Superseded to 532101189)

$66.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 151223

Pulley, V-Groove, Transmission
(Superseded to 532151223)

$39.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 180307

Spring
(Superseded to 532180307)

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 138909

Spacer
(Superseded to 532138909)

$4.99

$

Usually ships in 3-10 days

0
