HD F550 B - Weed Eater Front-Tine Tiller (1996) HANDLE Parts Diagram

Front-Tine Tiller

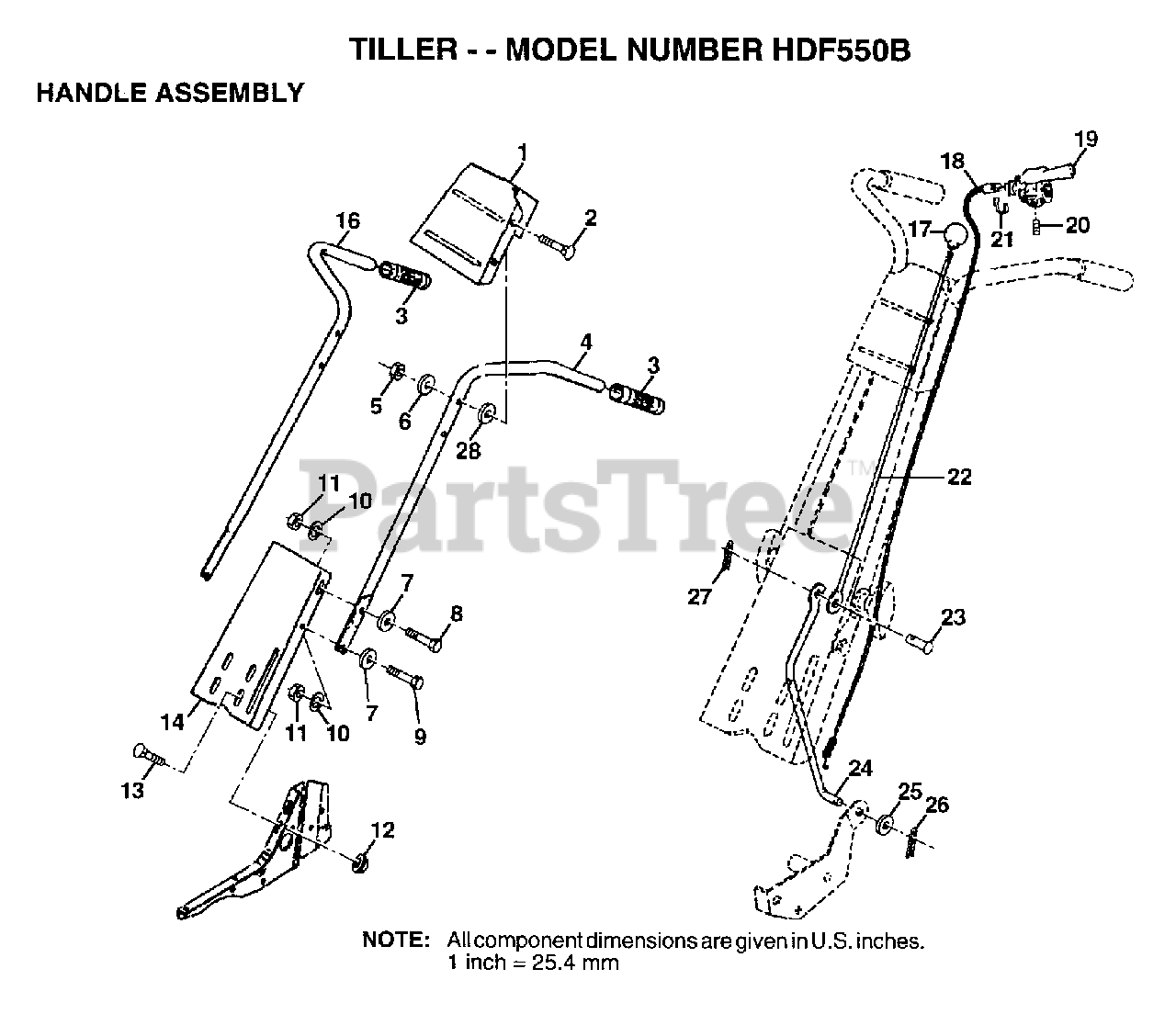

HANDLE Parts Diagram

  • Title

1

Electrolux/AYP 131268X550

BRACKET.HDLE.TILL

$7.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140512

BOLT
(Superseded to 582736101)

$

$

Not available

3

Electrolux/AYP 9266R

SUB= 624A78

$

$

Not available

4

Electrolux/AYP 151230

HANDLE LH
(Superseded to 153138)

$13.99

$

Usually ships in 3-10 days

0

5

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74760516

SUB= 77394

$

$

Not available

9

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

13

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 674A150550

PANEL.HANDLE.PNT.
(Superseded to 583772501)

$17.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 2624J

SUB= 2624J500

$

$

Not available

17

Electrolux/AYP 106932X

KNOB T(3/8 HOLE)
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

18

Electrolux/AYP 3066J

CABLE CLUTCH T
(Superseded to 532188532)

$

$

Not available

19

Electrolux/AYP 2635J

CONTROL LEVER TI

$

$

Not available

20

Electrolux/AYP 23200405

SCREW
(Superseded to 583610201)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 12000027

E-RING
(Superseded to 812000027)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 101248K

ROD REVERSE TI
(Superseded to 583638701)

$6.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 1778E

RIVET.RD.HD.DRILL
(Superseded to 583697101)

$2.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 2613J

REVERSE ROD TI
(Superseded to 583730401)

$8.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

28

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0
